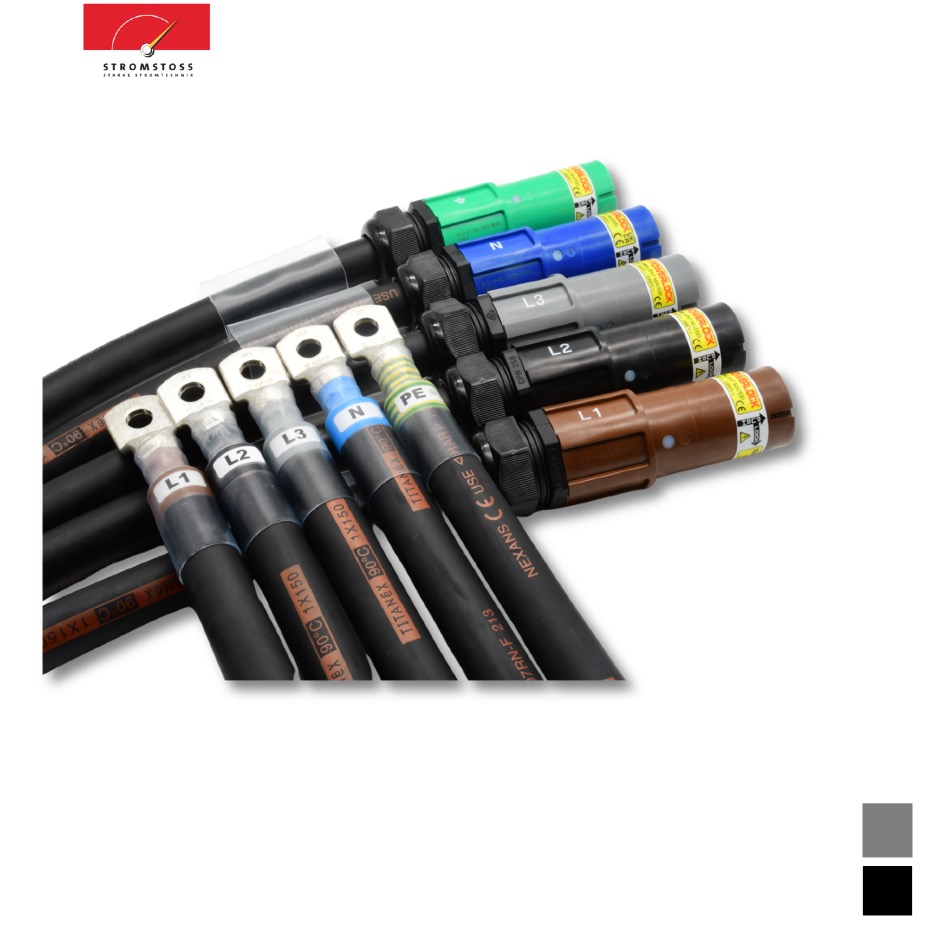

Stromstoss Connection cable set, tubular cable lug M10 » POWERLOCK 400A, H07RN-F 5x1x120mm2, black

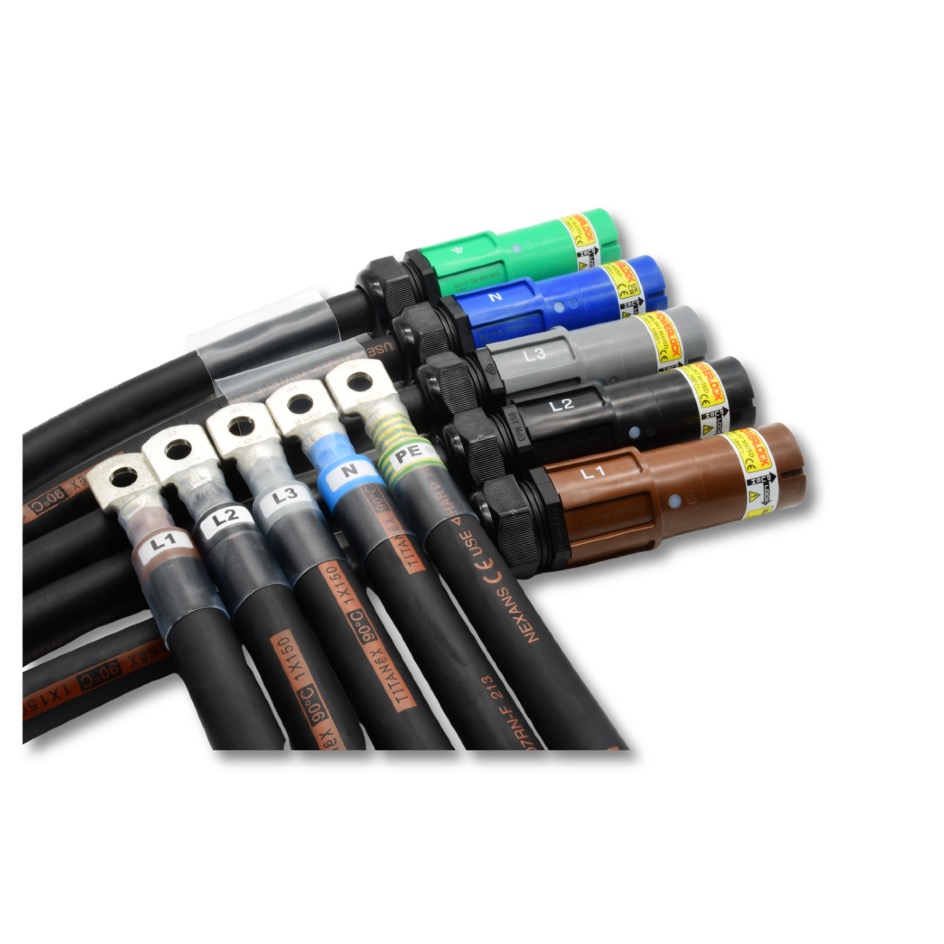

Stromstoss Connection cable set, tubular cable lug M10 » POWERLOCK 400A, H07RN-F 5x1x120mm2, black - Image 2

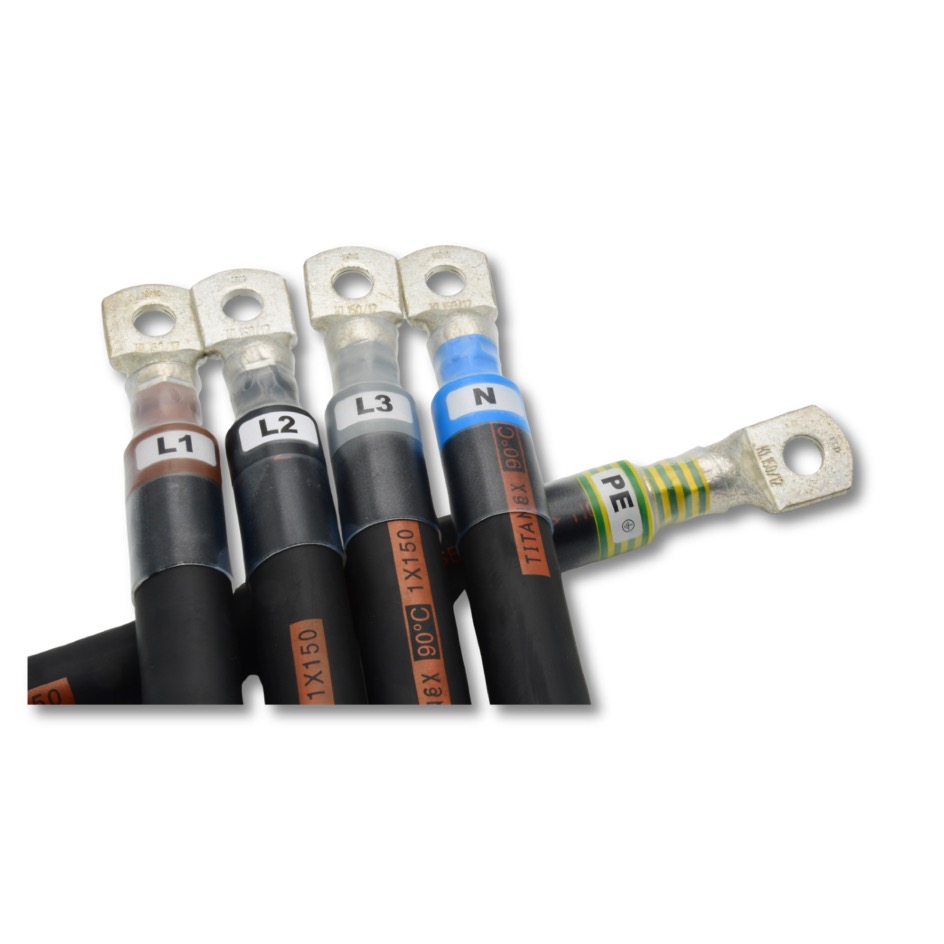

Stromstoss Connection cable set, tubular cable lug M10 » POWERLOCK 400A, H07RN-F 5x1x120mm2, black - Image 3

Stromstoss Connection cable set, tubular cable lug M10 » POWERLOCK 400A, H07RN-F 5x1x120mm2, black

Price range: CHF 784.00 through CHF 1’279.00 incl. VAT

Assembled and electrically tested quality cable.
**Connection and commissioning only by a qualified electrician**
* The current carrying capacity (A) specified here is a simplified guideline value for single-core cables laid freely in air with a spacing of at least the cable diameter at ambient temperatures up to 30°C. Factors such as cable length, ambient temperatures, installation type, etc. result in different (lower) current carrying capacities. The user is responsible for selecting and using the appropriate nominal cross-section.

SKU: OE-PL-350A-120-M10 Category: Brand:

Description

Physically

| H07RN-F 5x1x120mm2
– Color/Finish black

Electrically

– electrical protection class Protection Earth
– Operating voltage 230/400V AC
– Max. Rated Current 350A
– Wire cross section: 120mm2

Cable 1. Side:
Ring eyelet M10, brown – black- gray – blue – yellow/green

Cable 2. Side:
VEAM PowerLock 400A Line Source, brown – black- gray – blue – yellow/green

Prepared heat shrinkable tubing:
With both sided heatshrink (transparent) with 75mm lenght, for subsequent marking of the cables with e.g. barcode, length or color marking or company name.

Additional information

Color

Lenght

, ,
