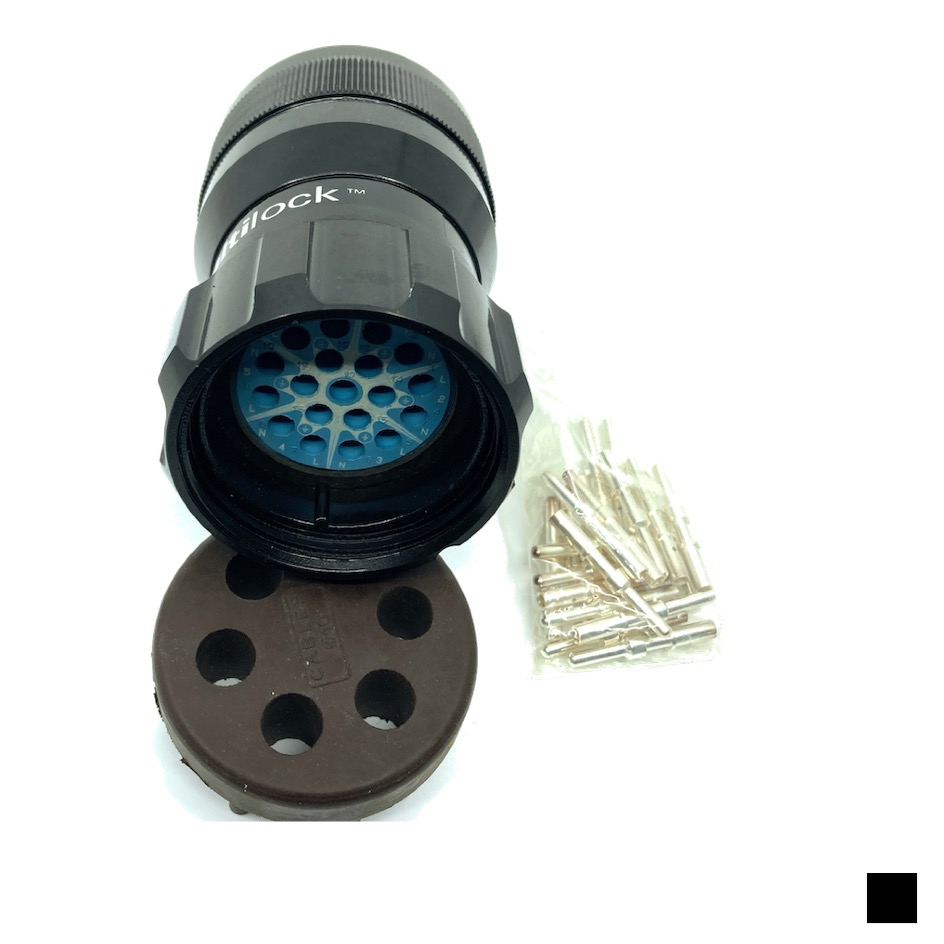

Tourmate MULTILOCK+ Line Male » 06 x H07RN-F 3G1.5, Crimp contact, black

Description

Downloads

Specification

– Marking of six circuits

– IP67 waterproof connection when mated

– First connection, last break ground contacts

– Recessed pins for added security

– Crimp version

– Industry’s first jacketed split socket pin for increased reliability

– Integrated backshell insulation

– Socapex/Veam compatible

– Heavy-duty coupling ring

– High resistance to saline atmosphere

– Standard width recessed groove for easy color coding

• Optional gold-plated contacts available.

fits with
– 06 x H07RN-F 3G1.5

Physically

– by Standard RoHS, EN60329 & UL (std. Black insulator only)
– Connector Type: Line Male
– Connection Type: Crimp contact
– IP protection IP67 when mated
– Color/Finish black

Thermally

– Ambient temperature -55°C bis 125°C

Electrically

– electrical protection class Protection Earth
– Operating voltage 700VAC, 500VDC
– Max. Rated Current 06 x 10A
