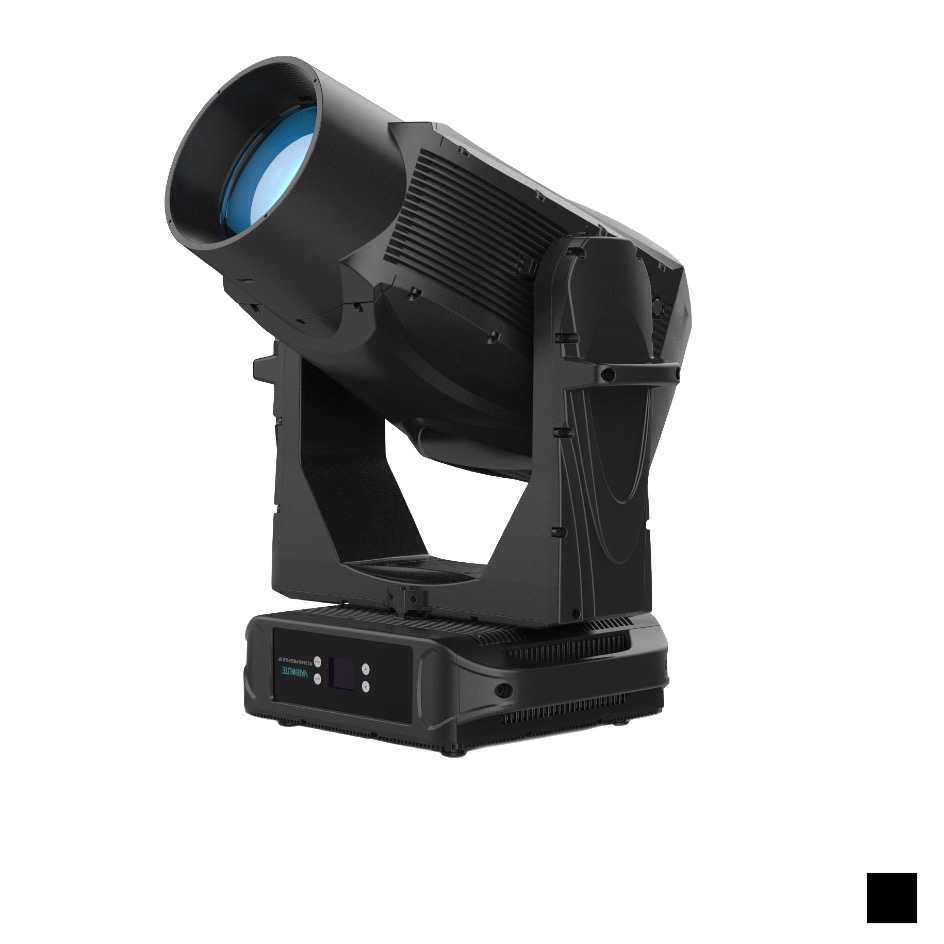

- Designed at the forefront of lightweight IP technology, the VL3600 PROFILE IP uses advancements in mechanical design to ensure that even with an IP65 weatherproof rating, the weight and size remain closer to an IP20 (non-weatherproof) fixture. With a 1000W monochromatic light engine producing 85,000 source lumens and an efficient optics system delivering 45,000 lumens out of the front of the fixture, the VL3600’s huge output power is ready to light the show from any distance in any weather. A dedicated color wheel loaded CRI boost and color correction filters ensure colors renders beautifully on stage or on camera. Thanks to a CMY+CTO color wheel mixing system, the fixture produces a wide range of rich colors while eliminating the appearance of blades in the lens, improving direct view applications.
Features
- Large-scale profile luminaire with 180mm front lens and 45,000 lumens of output – ideal for key or effect lighting in the largest of productions.
- CMY+CTO graduated color wheel mixing system – Provides a wide color mixing spectrum with a homogenization of color that completely fills the front lens at all times, improving direct view applications on stage or on camera.
- Color quality enhancement control – dedicated color enhancement wheel, which include CRI boost filter and a selection of minus green.
- Exclusive VL*FX animation wheel system – Give users access to 3 different animation effects wheels that can create dynamic projected and mid-air effects on their own or layered with gobos and prisms.
- V*Track Calibration System – Size and power with none of the unwanted movement. Limit movement during calibration and reduce start up time. Reduce risk of the fixture hitting set objects or shaking the rig.
- SmartFan Control including standard, studio, and whisper modes – multi-mode fan control to adjust settings & manage fan noise. Offers a low dB experience across all frequencies, eliminating buzzing or hums. Ideal for when for when you want to use the fixture in indoor applications.
- Full set of fixture features to meet the needs of the most demanding show
- Two Gobo wheels with interchanging gobos, four blade full wipe framing system with 120° of rotation, Iris and dual prism system which includes both an effects and scenic prism.
*IP65 outdoor rating and market leading size-to-weight ratio – outstanding performance no matter the weather, with weight and size closer to a 1000W IP20 fixture than any other IP65 fixture in its class.
Light source
– 1000W ESE LED Engine (monochromatic)
– 45’000 Lumen
– Tunable White 7200K-3200K | CRI: Standart 72, CRI Boost 93 | Tm30: Standard – Rf 68 / Rg 93 CRIBoost – Rf 87 / Rg 102
– Adjustable Refresh Rate 500Hz-25kHz
Brightness control
– Electronic 16-bit dimming with 4 dimmer curves: Square Law, Linear, S-Curve, Dim Snap on/off
– electronic stroboscope system, continuous, random, randomly synchronized.
Positioning
– PAN: 540° / TILT 270°
Colors
– Subtractive 16-bit color mixing with color flags
– electronic adjustment of color temperature from 3200K-7200K
– Fixed Colorwheel with 7 Colours and open Position
– 20 user-definable color presets Split Colors, Color Wheel Spin & Shake
Optical system
– Frontlinse 180mm
– Motorized Zoom Optic 5.5° to 50°, with 16-bit
– Motorized focus control with tracking. Adjusts focus and zoom over the entire zoom range
– 16 leaf iris open to 80% closing, Iris pulse effect
– +/-60° Rotating and indexing Barndoorsystem with 4 full-Wipe framing blades
Gobos
– Gobowheel with 10 static, interchangeable Glass Gobos and open Position
– Rotating and indexing Gobowheel with 7 interchangeable Glass Gobos and open Position
Effects
– VL*FX Control effect wheel with 3 rotatable and indexable effects and open position
– – Variable Light Frost
– Variable Medium Frost
– 1 x round 3-facet prism
1 x linear 4-facet prism
Physically
– by Standard CE, ETL, UL, FCC CSA, RoHS, ISO 9001
– Tube Center 700mm
– Superstructure made of Aluminum, magnesium and steel metal plates, Covers Die Cast Magnesium
– IP protection IP65
– Color/Finish black
– Dimensions | L: 560mm | W: 340mm | H: 799mm
– Weight 48 kg
Thermally
– Ambient temperature -20°C bis 45°C
– Hybrid sealed liquid and forced air system
Electrically
– electrical protection class Protection Earth
– Operating voltage 100-240VAC 50/60Hz
– Power consumption 1000W
– Max. Rated Current 6.32A
Power connector input
powerCON TRUE1 compatible connector IP65
Control
– Protocol DMX512, RDM
– 2 DMX-Mode with 49 | 52 DMX-Channels
Inout
01 XLR5 Chassis Male IP65
Output
01 XLR5 Chassis Female IP65
Wireless receiver (RX)
– Standard LumenRadio CRMX™
Network
– Protocol art-NET
Input
02 x Locking RJ45 ethernet IP65
PC-Ports
USB TYP A IP65
