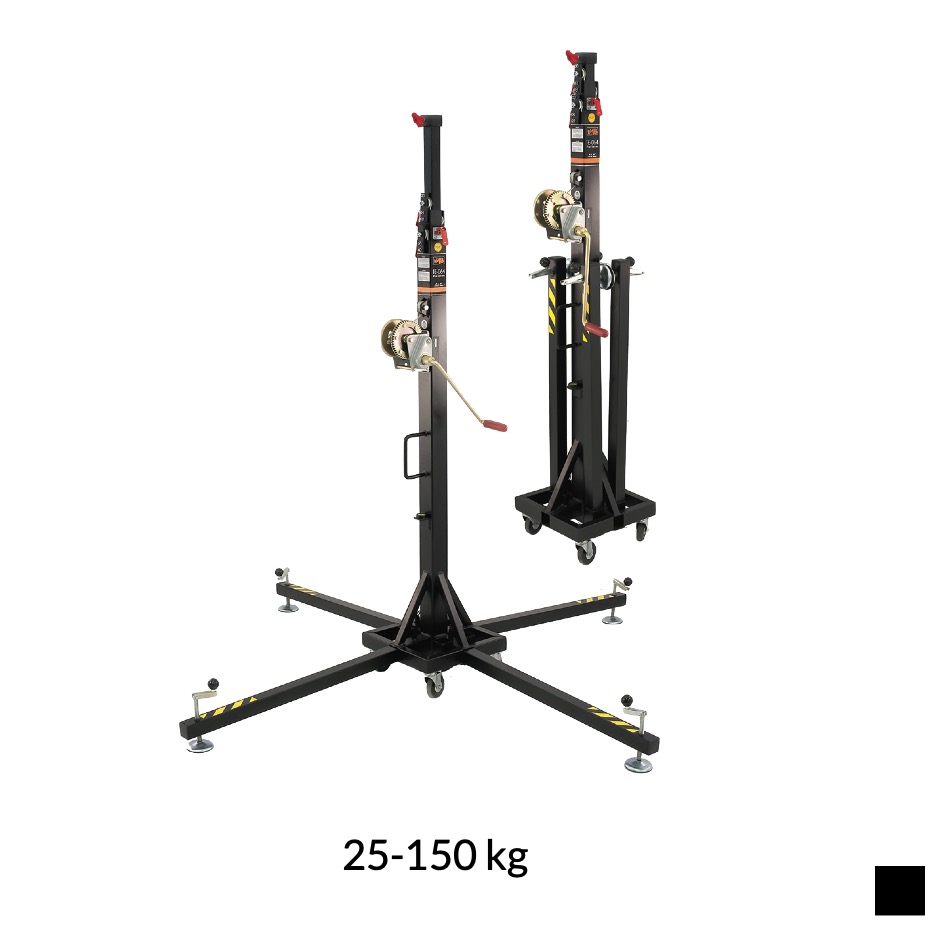

- It is capable of lifting 150kg to 5.35m. It has stabilizers on the 4 legs, with anti-sliding injected rubber supports and a spirit level for accurate levelling.
It is composed of X steel profiles with high resistant, anti-torsion steel cable and guided through reinforced pulleys.
A wide range of accessories are available for this compact telescopic lifter.
As will all our lifting towers safety is guaranteed with our ALS automatic locks, patented and exclusive to VMB Prolifts.
Features
- – Four telescopic profile systems operated by steel cables and guided by steel rollers with ball bearings.
– Winch: 450Kg. maximum load with automatic brake.
– Steel cable 4mm according to DIN 3060. quality 180Kg/mm2 torsion proof.
– Exclusive ALS-System (Auto-Lock-Security)
– Non-slip supports
– Safety locks to anchor the legs
– Anti-rust, primed paint
– Spirit level for vertical alignment of the tower
– Swivel wheels for transporting the lift when folded.
Physically
– Nominal capacity WLL 25-150 kg
– by Standard BGV-C1, Steel Profile DIN 2394, Steel Cable DIN 3060
– with Mounting for accessories with Ø35mm
– Color/Finish black
– Dimensions
Work area | Lenght 2m | Width 2m | Height max. 5.35m
Transport area | Lenght 0.38m | Width 0.36m | Height 1.72m
– Weight 41 kg
