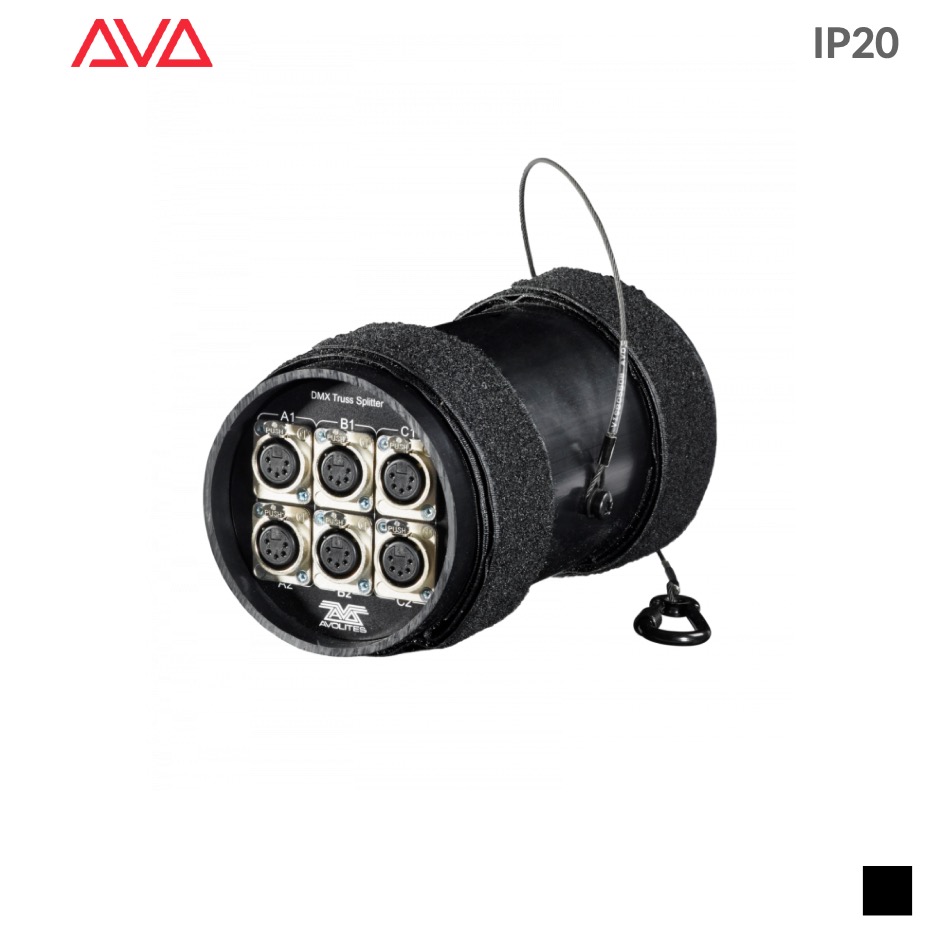

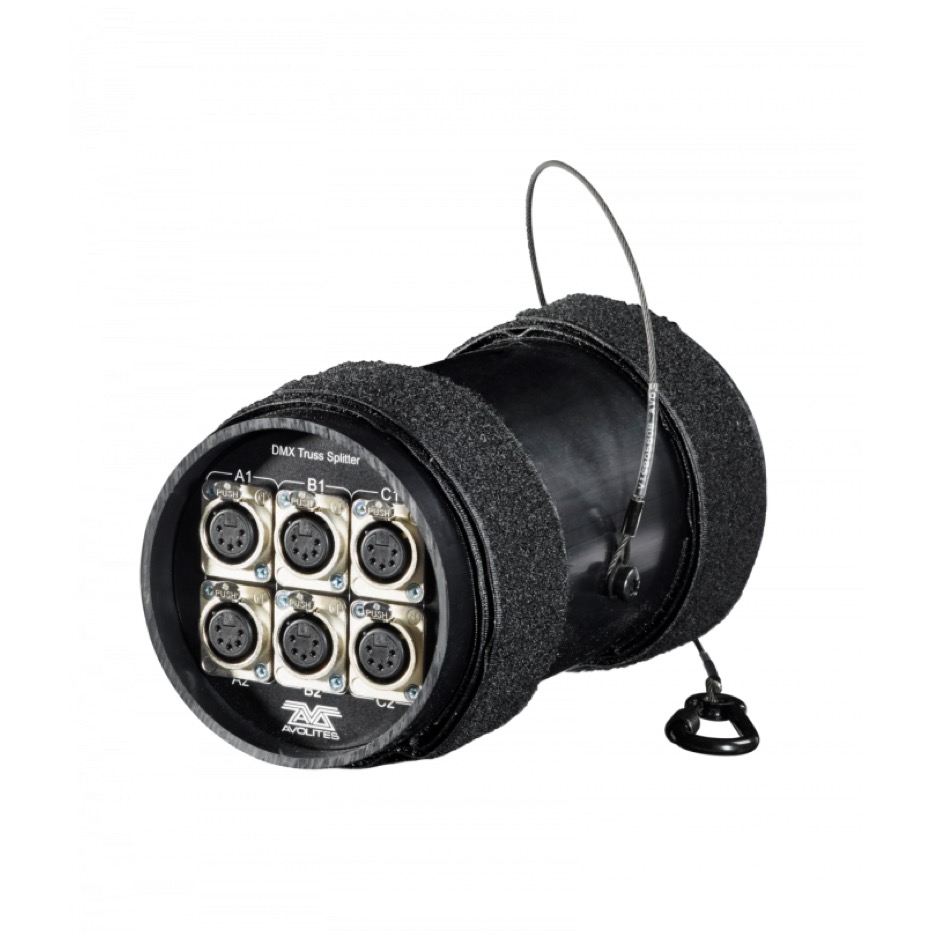

- The Rack DMX splitter will buffer, multiply, isolate and protect your console DMX outputs.
– Provides One 6-way splits
– Use loop for 1-in-6-out
– Optical and galvanic isolation
– Does not support RDM
Physically
– Housing round plastic housing
– IP protection IP20
– Color/Finish black
– Dimensions | L: 240mm | Ø: 130mm
– Weight 2 kg
Electrically
– electrical protection class Isolated
– Operating voltage 85 – 265VAC 50/60Hz

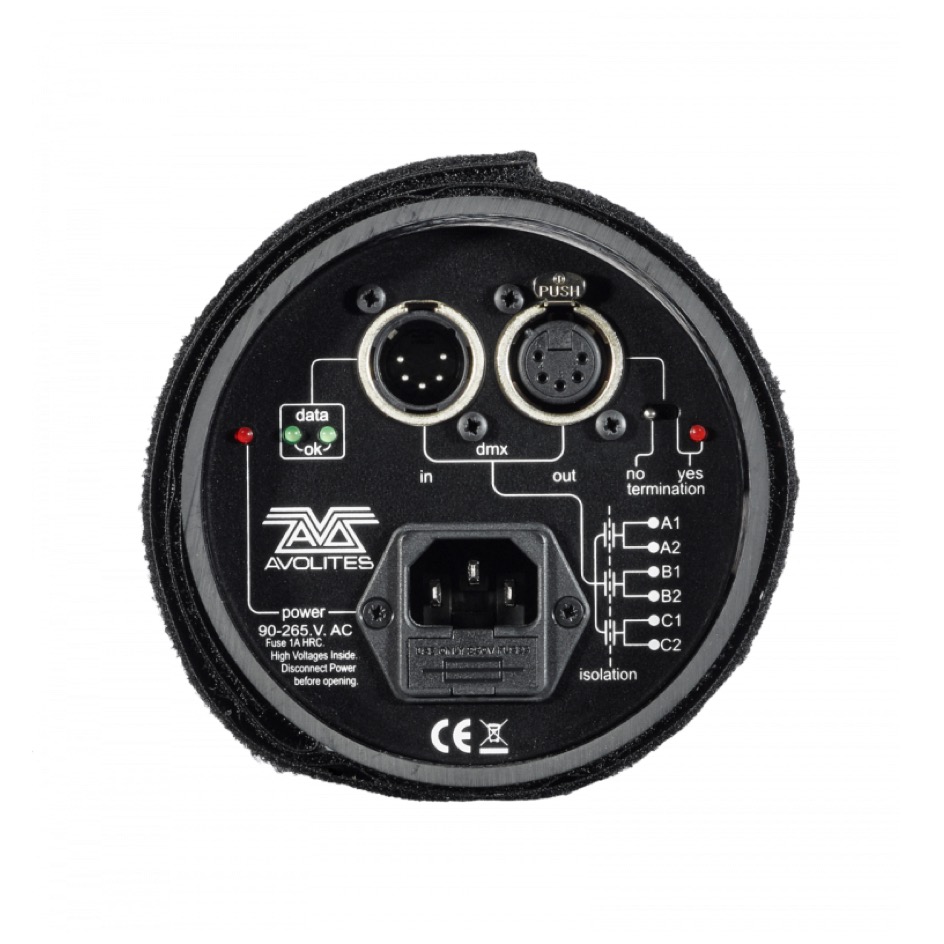

Power connector input
Inlet C14 IEC-60320
Control
– Protocol DMX
Inout
01 XLR5 Chassis Male
Output
01 XLR5 Chassis Female Loop Out

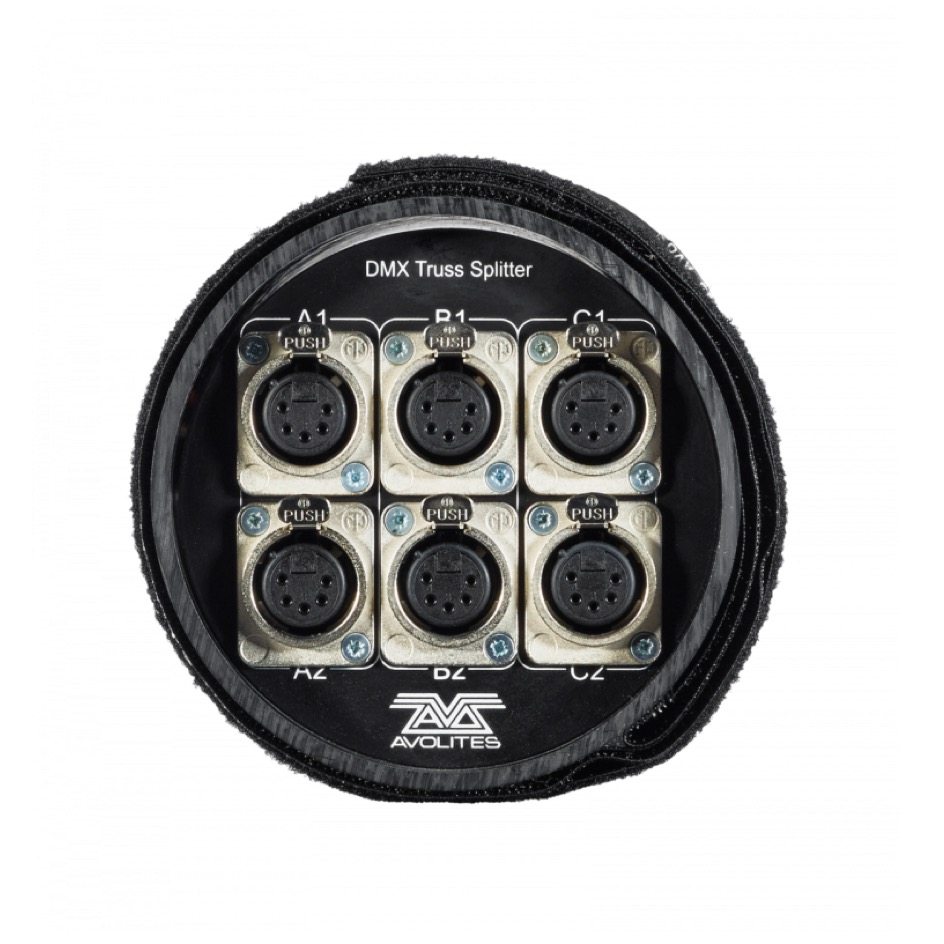

03 x 2 XLR5 Chassis Female, optical isolated
Amount of Universes 1 (512 DMX-Channels)
