User Interface (Hardware)
- – Generative, animation-based pixel mapping
– Quicksketch labelling for ultimate personalisation
– Powerful multi-user networking with any Titan console
– Create huge effects in seconds with Key Frame Shapes
– Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
– Expand DMX channel capacity with Titan Net Processors
– Synergy-ready. Add any Ai product to unlock seamless video integration
– TITAN can be controlled via trigger with external hardware.
– 4-band sound-to-light
– DMX input
– GPIO
– MIDI note, note on / off, aftertouch, control change, program change, pitch wheel
– Pioneer ProDJ Link Bridge
User Interface (Hardware)
- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready. Add any Ai product to unlock seamless video integration
- TITAN can be controlled via trigger with external hardware.
- 4-band sound-to-light
- DMX input
- MIDI note, note on / off, aftertouch, control change, program change, pitch wheel
- Pioneer ProDJ Link Bridge
fits with
– Avolites ARENA Console | white
– Avolites QUARTZ Console | white
– Avolites QUARTZ SET | white
– Avolites T3 Console | black
– Avolites DIAMOND 7-215 Console | black
– Avolites DIAMOND 7-330 Console | black
– Avolites DIAMOND 9-215 Visual Canvas Controller | black
– Avolites DIAMOND 9-215 Visual Canvas Controller | black

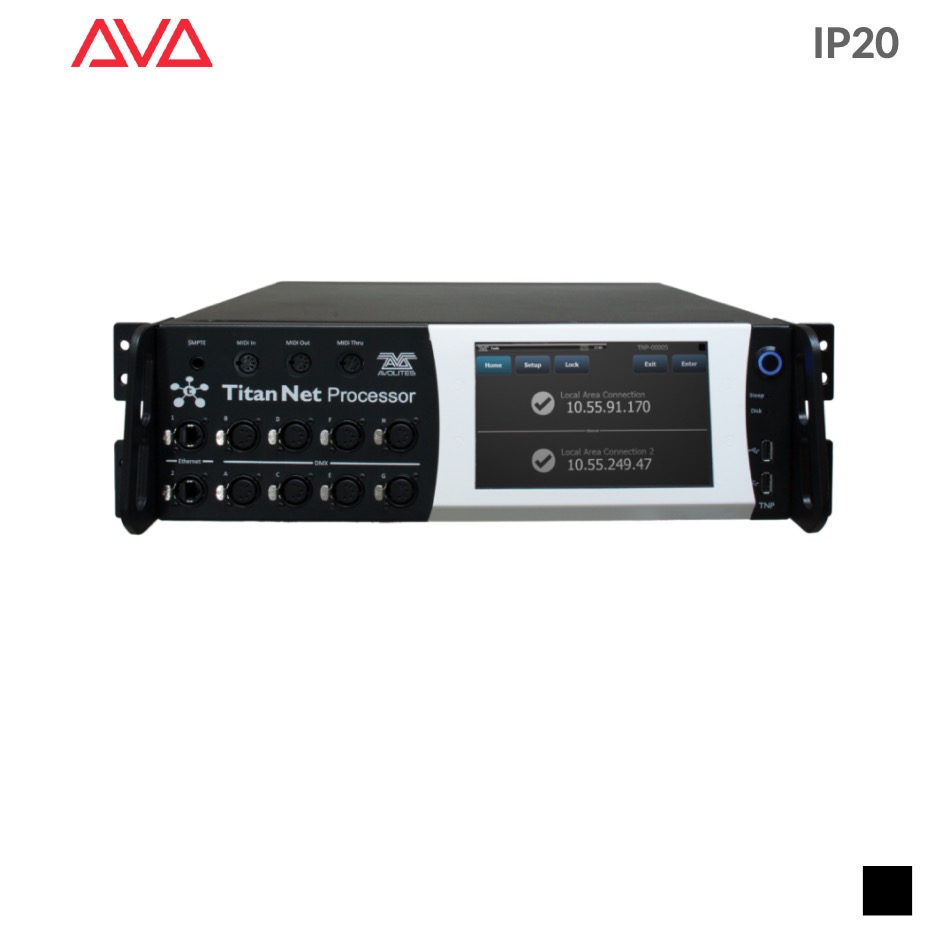

Physically
– Housing 19 inch rack case 3U
– IP protection IP20
– Color/Finish black
– Dimensions | L: 483mm | H: 130mm | D: 450mm
– Weight 12 kg
Thermally
– Forced Air Cooling
Electrically
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 50W
Power connector input
Inlet C14 IEC-60320
Uninterruptible power supply (UPS)
integrated UPS
Control
– Protocol MIDI
– Protocol Output DMX, RDM, MIDI
Inout
01 DIN5 MIDI IN
Output
08 XLR5 Chassis Female, optical isolated
01 DIN5 MIDI THRU & OUT
Network
– Protocol art-NET, sACN, Titan Net, CITP, RDMNet, ProDJTap, LiveDMX, WebAPI
Input
02 NEUTRIK Ethercon 1GBE on Frontpanel
Display
01 DVI for external Touchscreen 1920 x 1200
Storage
02 USB for data backup and external peripherals
Input
01 Jack 6.3mm TRS for SMPTE
Input Protocol
SMPTE
