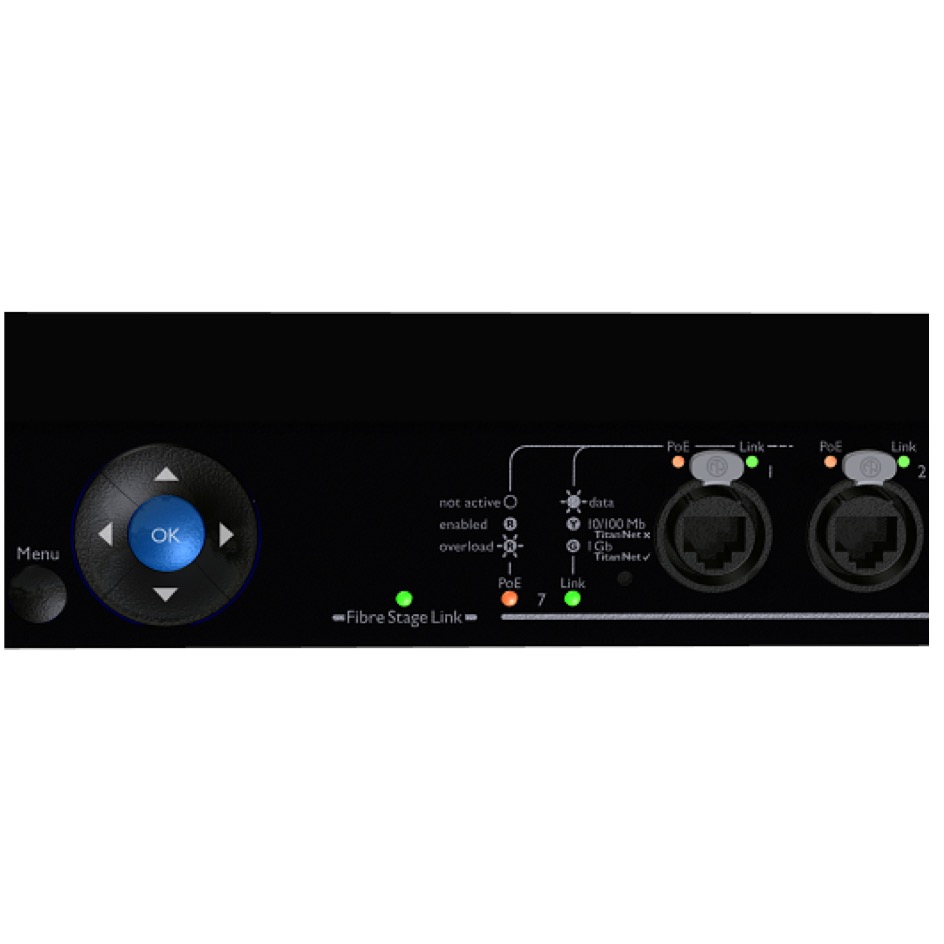

User Interface (Hardware)
- – Integrated LCD display for easy configuration and status monitoring
– integrated UPS

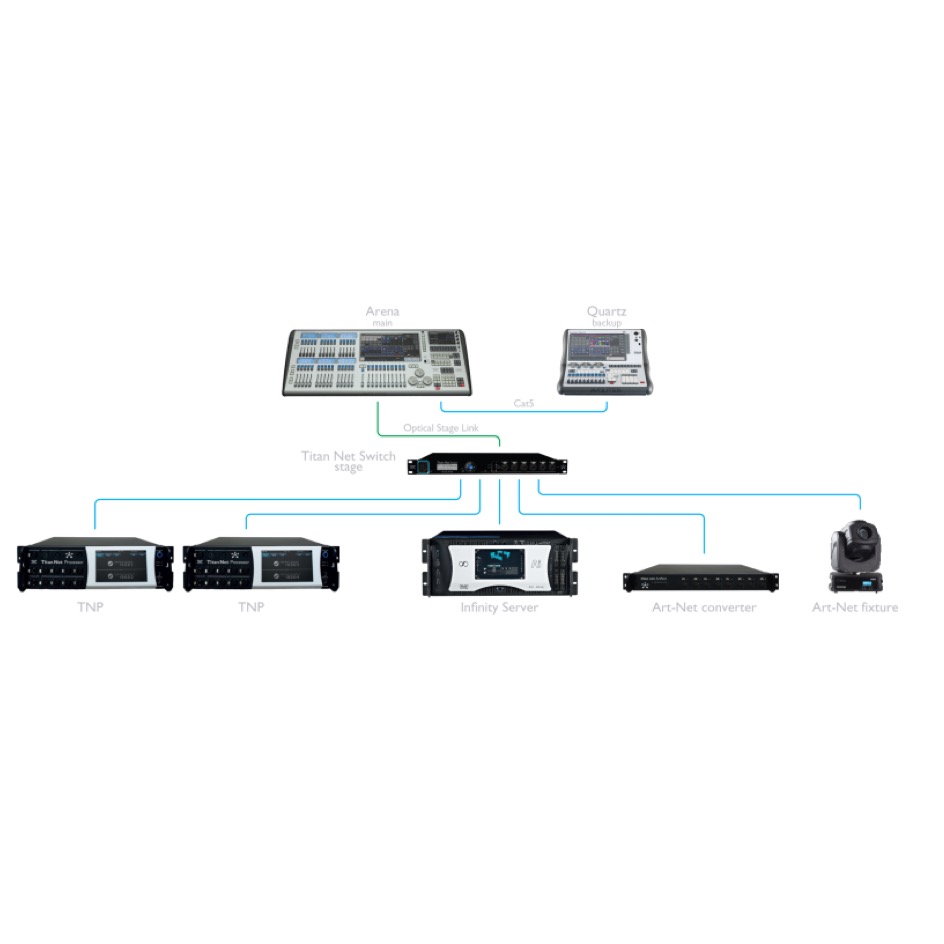

– Full integration with Titan consoles (from version 10): Information about status, topology, monitoring of connections and connection speed
– Thanks to the built-in OpticalCon connection, it is perfectly suitable for the Arena – all other consoles are connected via Ethernet cable
– Use of Ethernet cable (Cat5e) up to 100m distance or of glass fiber depending on the version up to 225 / 550m (Multi Mode) or 10km (Single Mode)
– all ports can be used at 10, 100 or 1000 Mbps
– Switch bandwidth 20 Gbps full duplex
Physically

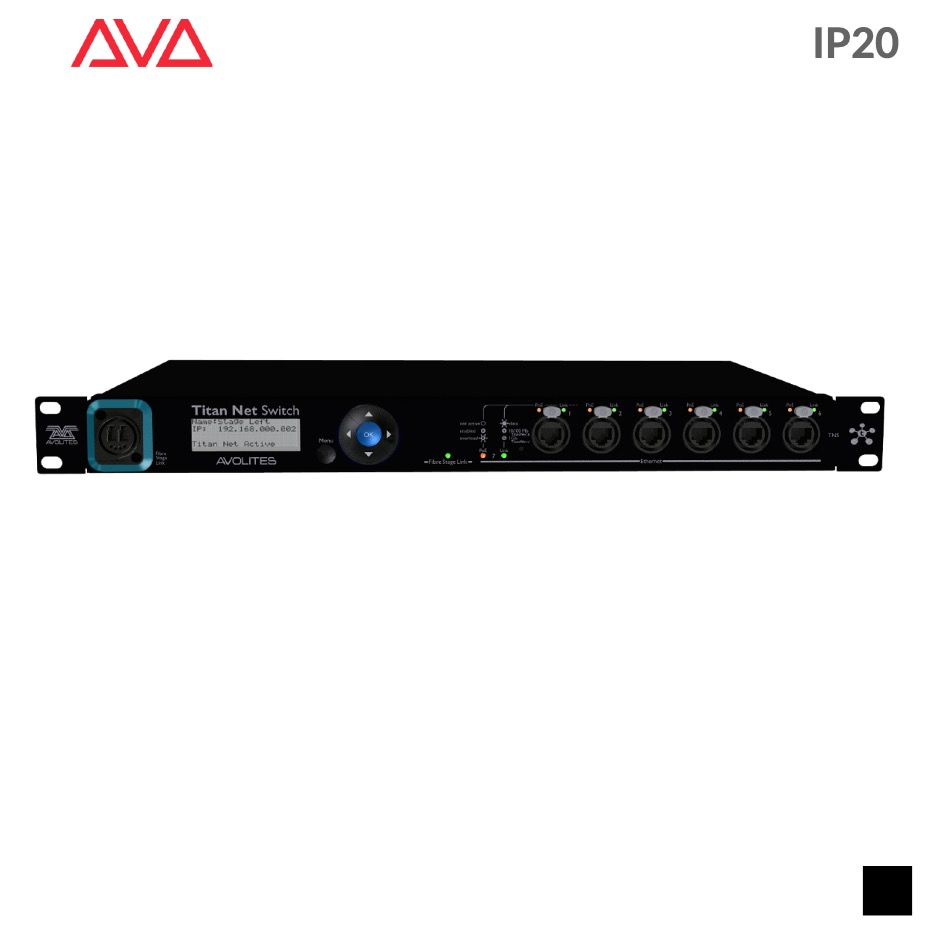

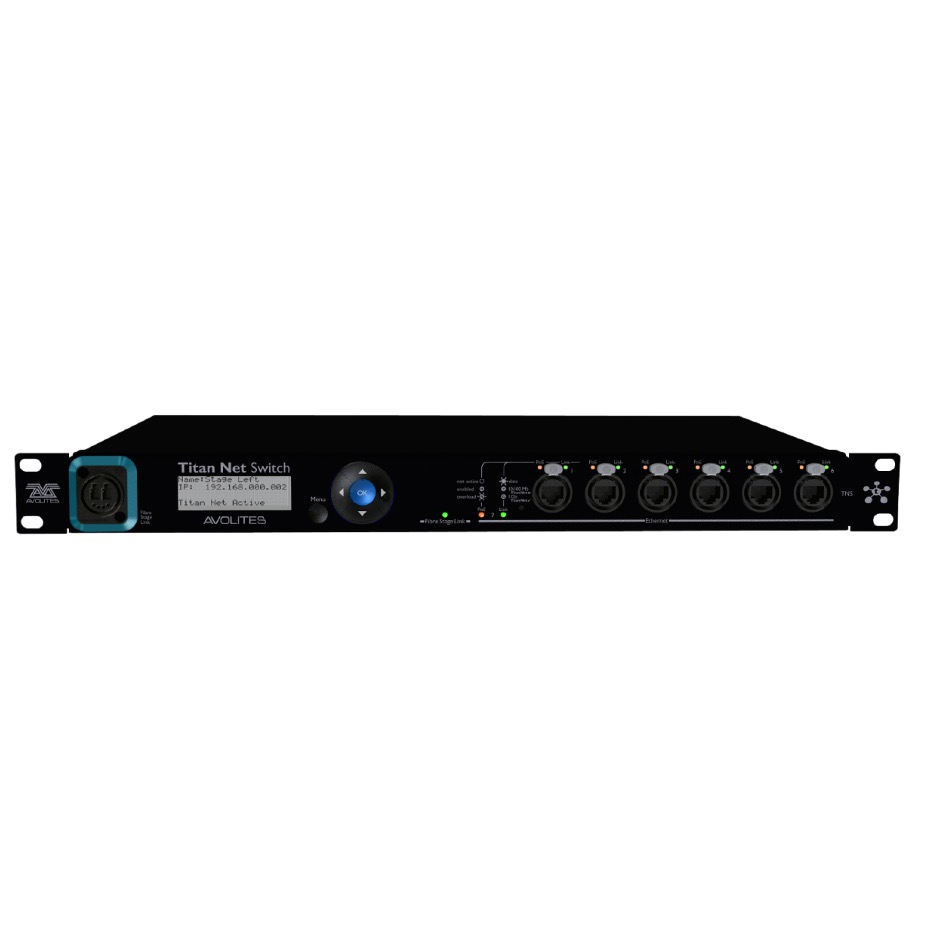

– Housing 19 inch rack case 1U
– IP protection IP20
– Color/Finish black
– Dimensions | L: 483mm | H: 45mm | D: 250mm
– Weight 6 kg
Thermally
– Forced Air Cooling
Electrically
– Operating voltage 100 – 240VAC 50/60Hz
Power connector input
Inlet C14 IEC-60320
Uninterruptible power supply (UPS)
integrated UPS
Network
Input
01 NEUTRIK opticalCON
Output
06 NEUTRIK Ethercon with status indication and PoE
PC-Ports
USB Service Port
