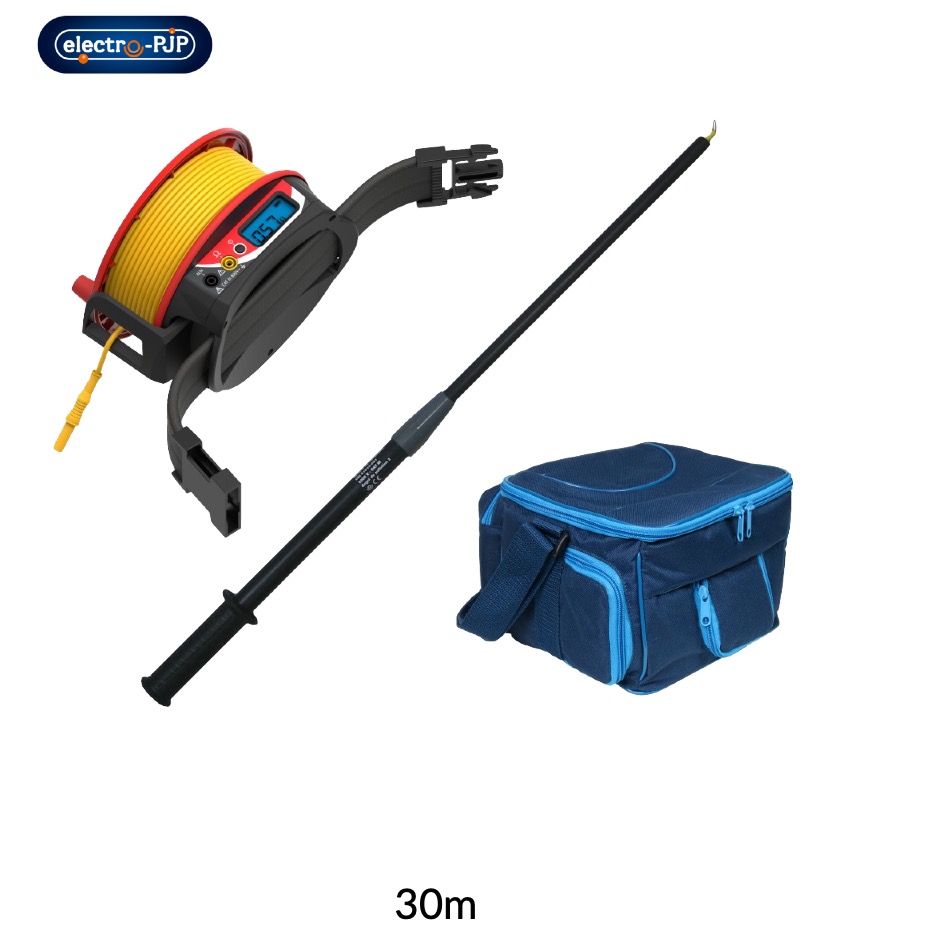

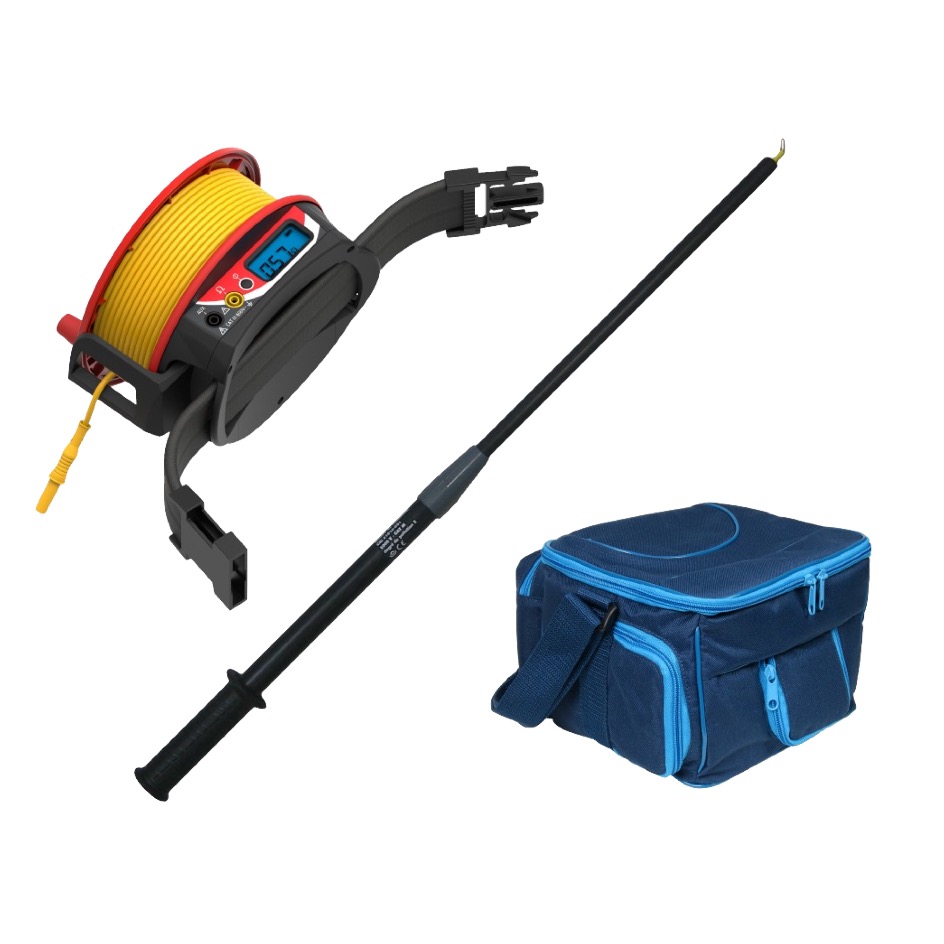

Accessories supplied with the unit
Protective conductor tester PJP Wheel-e 1Ω V2 30m
Matching bag with shoulder strap IT101
Telescopic rod, length 49cm to 85cm, 1000V CAT III, 2A

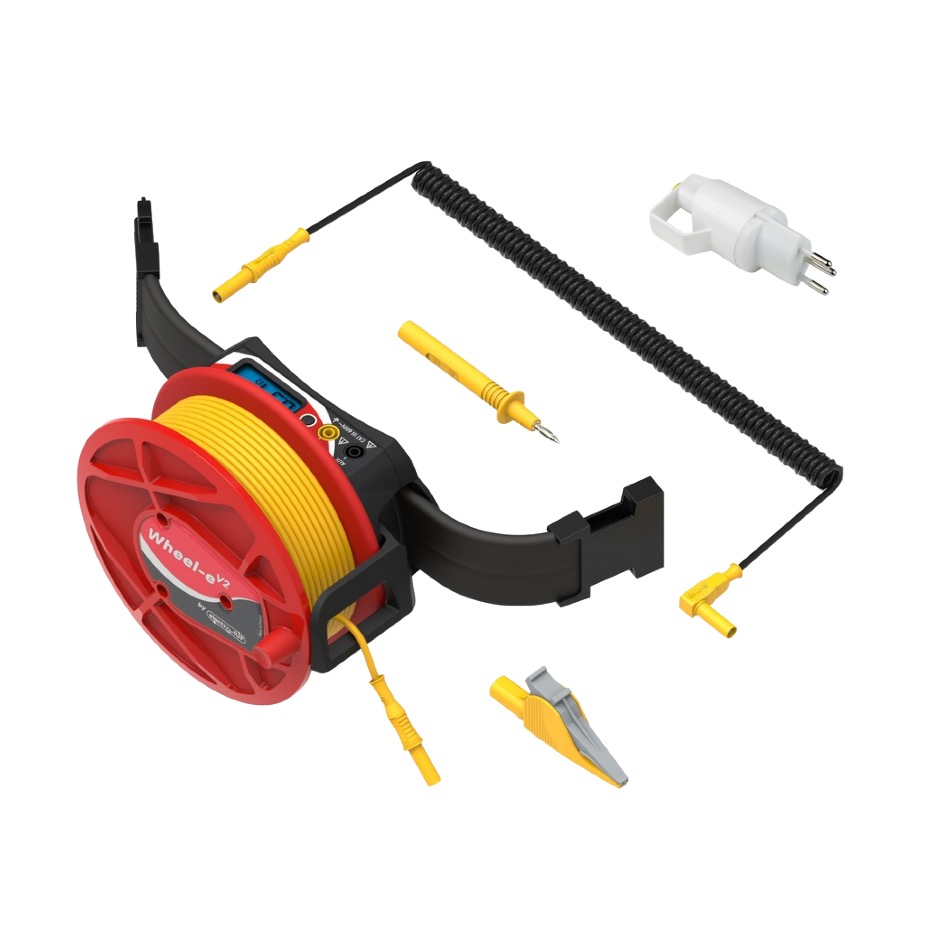

Test probe with protective cap, crocodile clip, spiral measuring cable, PE measuring adapter incl. fixed adapter for socket type 12, lap belt, 4 batteries type AA (LR6), test certificate, operating and calibration instructions
Detailed description
- If an external voltage is present, the effective value is measured and displayed
- Measurement according to EN61557-4: Measuring current >200mA with automatic polarity reversal, open circuit voltage 4V to 6V (0.2-2Ω)
- Measuring range 0.00Ω to 20.0Ω
- Measuring accuracy ±0.07Ω from 0.00Ω to 0.50Ω; ±10% ±0.02Ω from 0.50Ω to 2.00Ω
- Function for automatic zero adjustment of the measuring leads and other measuring accessories (max. 4Ω)

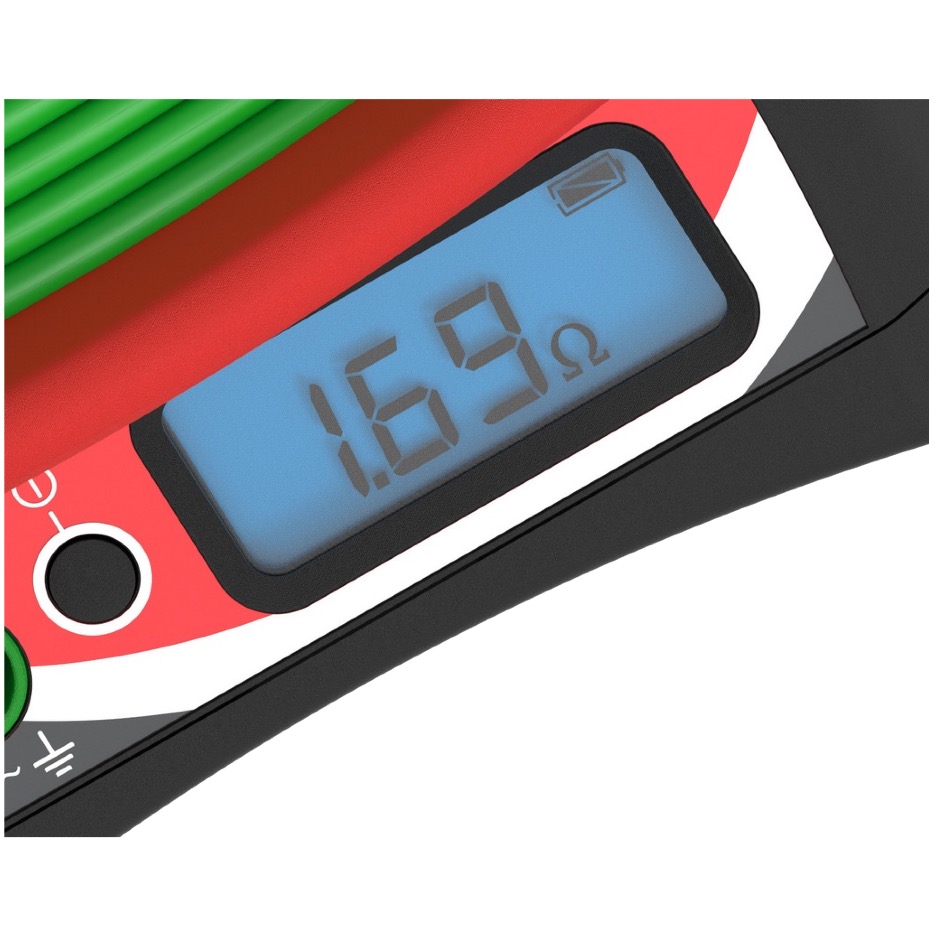

- LC display with red and blue backlighting:
- Resistance < 1Ω is signaled with a loud signal tone (can be switched off)

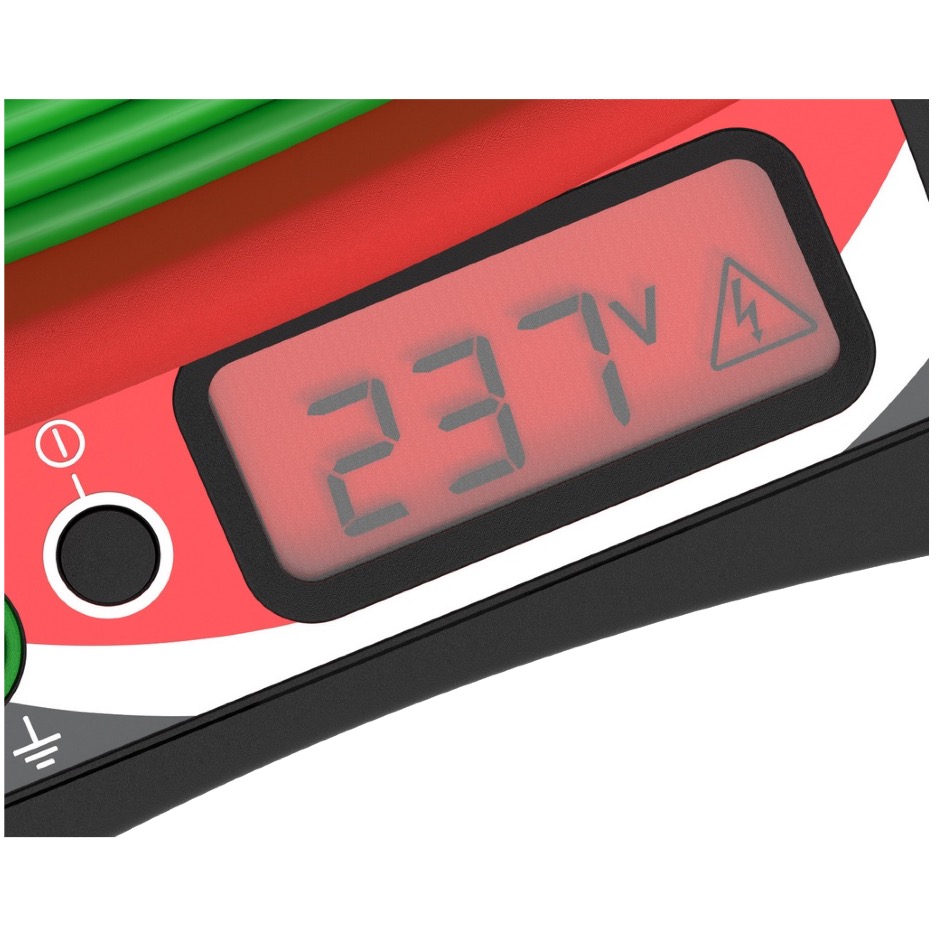

- Acoustic and visual warning when an external voltage is present, display of the effective value
- Integrated cable reel with fused measuring cable (30m x 1mm2, 4mm safety laboratory plug)
- Test lead resistance compensated at the factory
- AUX socket for connecting other measuring accessories instead of the integrated reel or for using the reel with other measuring devices
- Cable reel cover can be easily removed to replace the test lead
- Hands and shoulders remain free thanks to lap belt
- Standard 4mm connection sockets
- Powered by 4 AA batteries for up to 10,000 measurements
– red: “Bad” (resistance >1Ω)
– Blue: “Good” (resistance <1Ω)
Physically
– by Standard Electrical safety in accordance with EN/IEC 61010-1:2008: protective insulation, 600V CAT III / 300V CAT IV (pollution degree 1 and 2) or 300V CAT III / 300V CAT IV (pollution degree 3)
– Dimensions | Ø: 170mm
– Weight 1,4 kg
