Detailed description

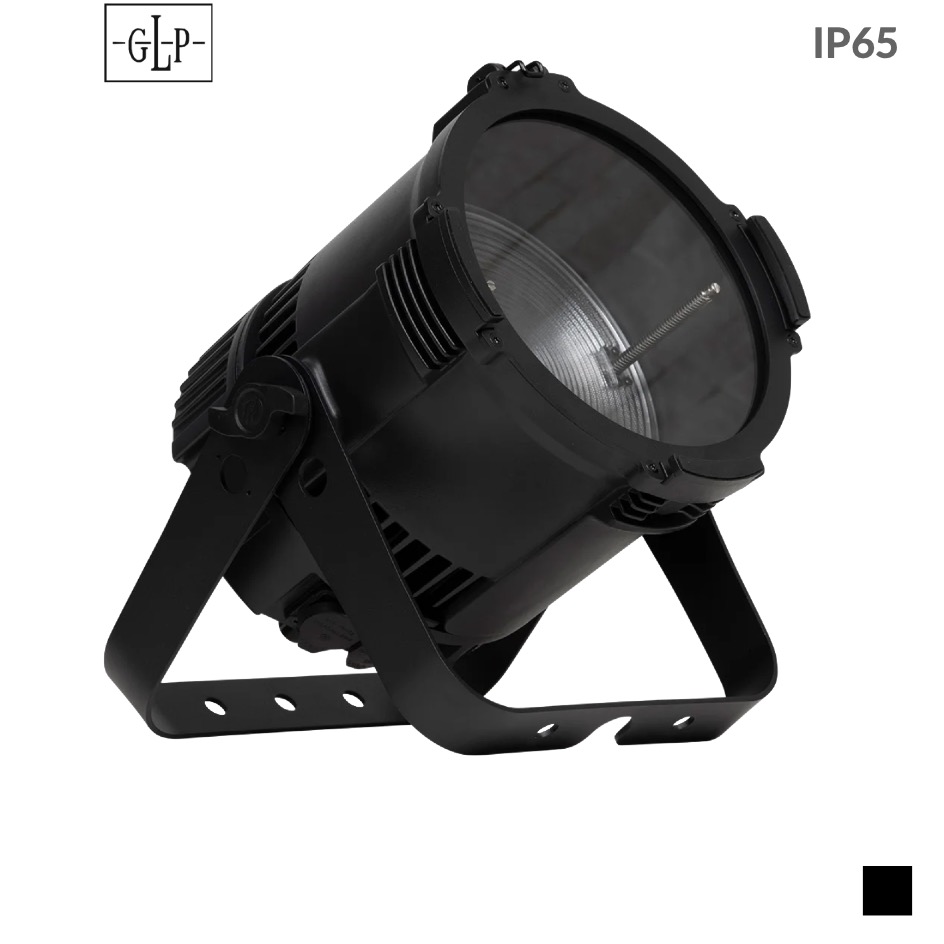

- With its 120 watt RGBL light source and Fresnel optics, the spotlight generates up to 2,520 lm output and a CRI 80+. The 190 mm front lens produces an eye-catching light emission that can be used to create powerful images.
Combined with the generously dimensioned zoom (8° to 55°), the FUSION X-PAR 12Z is a consistent, future-proof further development of the LED PAR projector.
The robust aluminum housing in IP65 design allows problem-free use both indoors and outdoors in dusty, dirty or damp conditions. The sealed housing reduces the maintenance effort in everyday operation.
Light source
LED Engine
– 2’520lm max. | 20’000 h
– Red, green, blue, Lime | CRI: 80+ | TLCI: 80+
– Refresh Rate PWM 600 Hz, 1.200 Hz, 2.200 Hz, 3.000 Hz, 4.800 Hz, 9.600 Hz, 25 kHz
Colors
– Tunable White 2500K-10000K
Optical system
– Frontlens 190mm
– Motorized Zoom Optic 8.5° to 55°
Physically

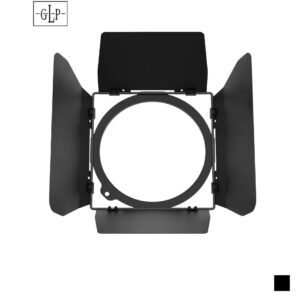

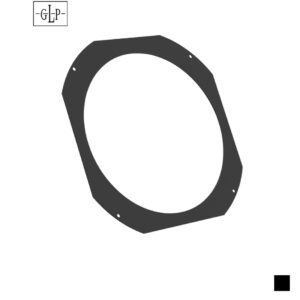

– Housing Aluminium. Floor stand with adjustable foot, M12 thread for drop mounting, bracket for ceiling mounting, bracket for optional filter frame and barndoor
– Mounting method in any position
– Fastening 1 eyelet for safety cable, 1x M12 thread, centered, double bracket with three holes
– IP protection IP65
– Color/Finish black
– Dimensions | W: 245mm | H: 245mm | D: 254mm
– Weight 6,9 kg
Thermally
– Ambient temperature -10°C – 45°C
– Fanless convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 120W
Power connector input
PowerCon TRUE1 compatible IP65
Control
– Protocol USITT DMX-512-A, RDM ANSI/ESTA E1.20
– Protocol Output USITT DMX-512-A, RDM ANSI/ESTA E1.20
– 6 DMX Modes with 4, 6, 6, 8, 11, 16 DMX-Channels
Inout
01 XLR5 Chassis Male IP65
Output
01 XLR5 Chassis Female IP65
