Detailed description

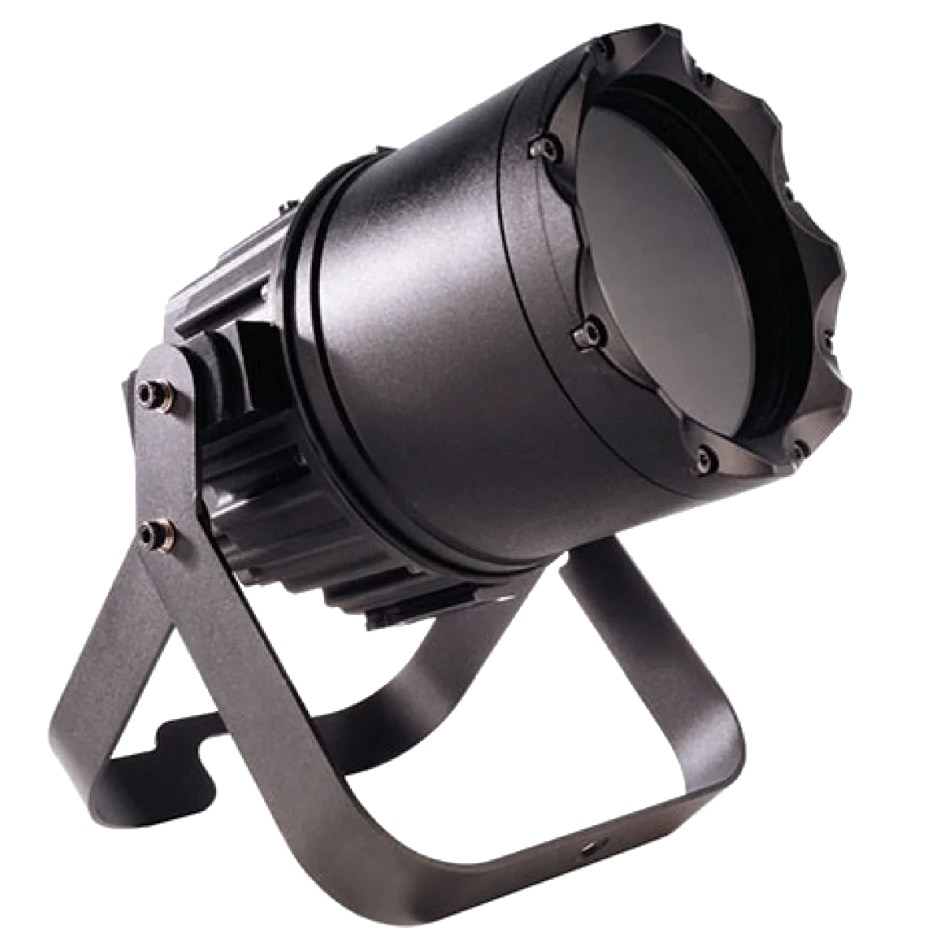

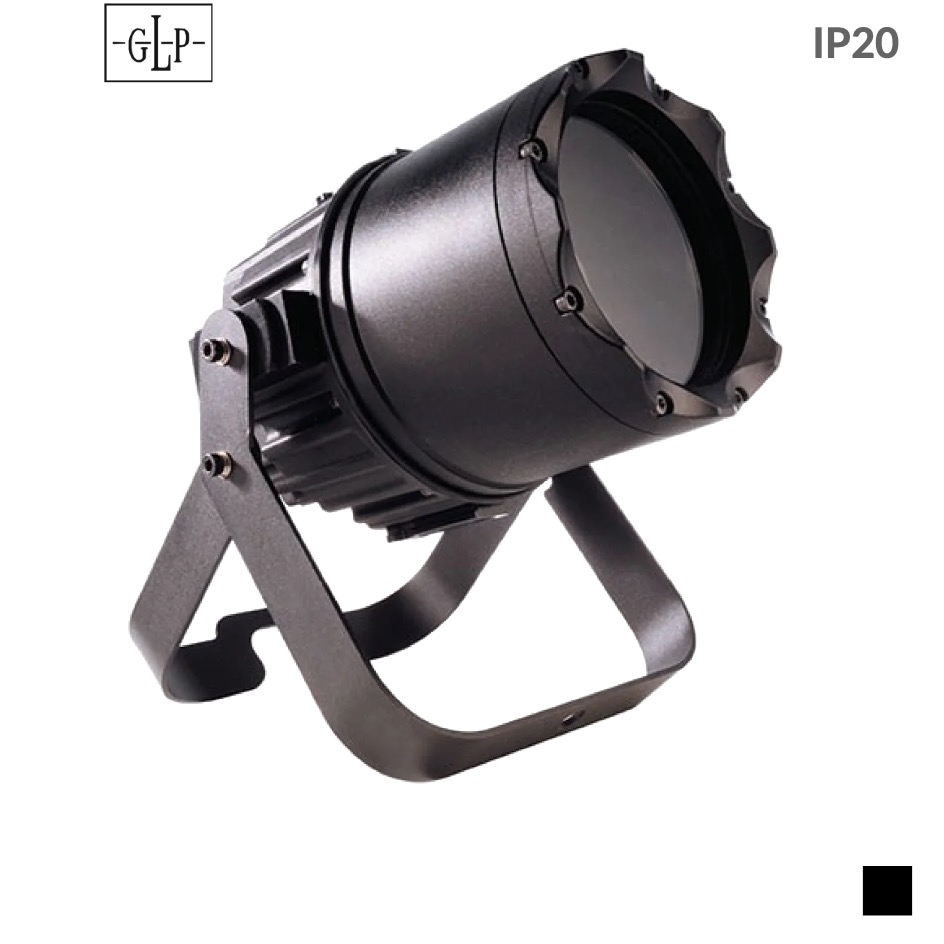

- The X4 atom benefits from the further developed high-performance LED of the impression X4 series. The X4 atom therefore offers the designer a wide range of colors, from rich and vibrant to soft pastel shades.

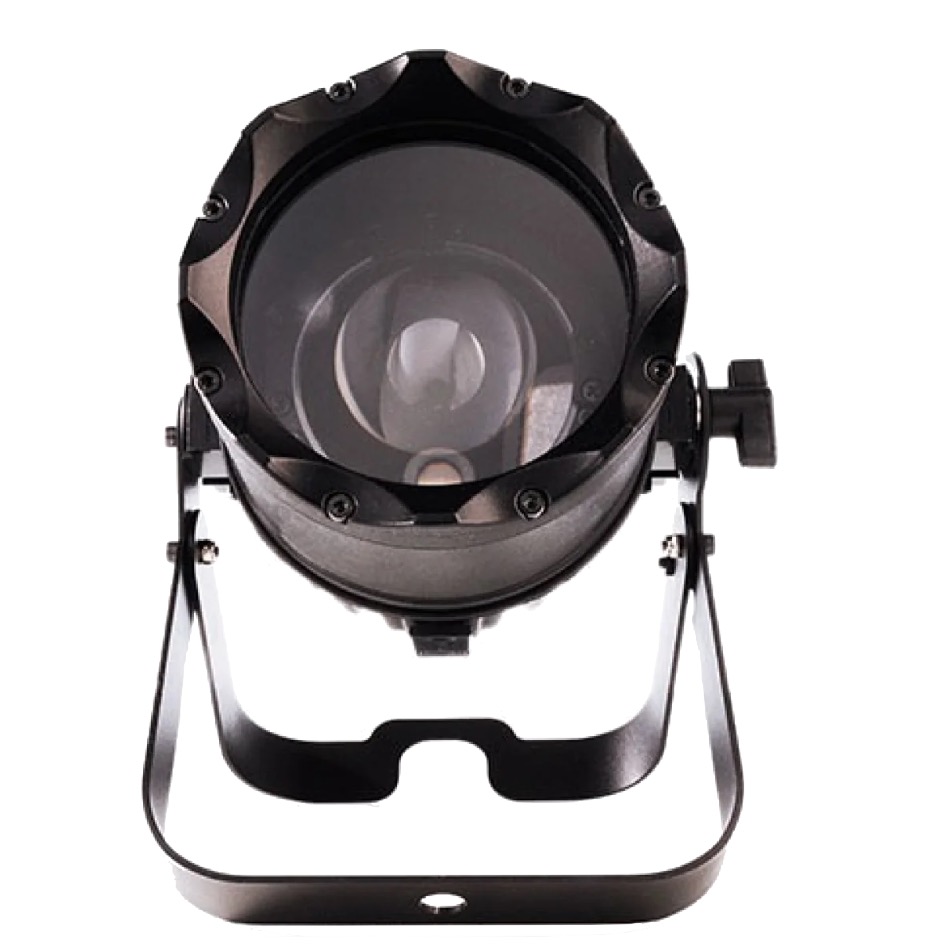

The optics are also based on the X4 series – but with a larger front lens for even more power and an even narrower beam. The automated 9:1 zoom system thus offers the designer a 3.5° narrow beam effect through to a 35° wide wash effect.
But that’s not all: the housing is protected against damage from dust and water (IP65) thanks to its design. This enables installation in outdoor areas.
An easy-to-use locking system makes it possible to connect several X4 atom units together in no time at all: Pairs, quads, lines, through to huge LED displays – the number of variants is almost endless. If required, additional filters (e.g. frost filters) can be attached to the optional bracket or other lens options, such as a Fresnel lens or the so-called BubbleGum attachment.
The X4 atom is powered by an external power supply, which also transmits the DMX data via a 4-pin XLR connector. A rechargeable PowerPack (atom Free Connect) is also available as an additional accessory.
Light source
– 15W LED Engine | 50’000 h
– Red, green, blue | CRI: 69
Positioning
– Manual Tilt 276°
Colors
– Tunable White 2700K-10000K
Optical system
– Motorized Zoom Optic 3.5° to 34°
Physically
– Housing Aluminium. Floor stand with adjustable foot, M12 thread for drop mounting, bracket for ceiling mounting, bracket for optional filter frame and barndoor
– Mounting method in any position

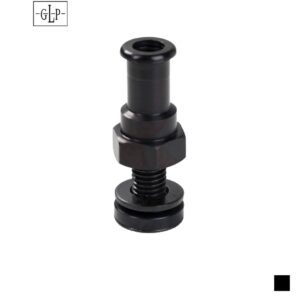

– Fastening continuous connection via truss bar, combined hanging/standing bracket, mini TV spigot
– IP protection IP20
– Color/Finish black
– Dimensions | W: 127mm | H: 127mm | D: 196mm
– Weight 1,8 kg
Thermally
– Ambient temperature 5°C – 45°C
– Fanless convection cooling
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 24V DC via X4 ATOM PSU
– Power consumption 20W
Power connector input

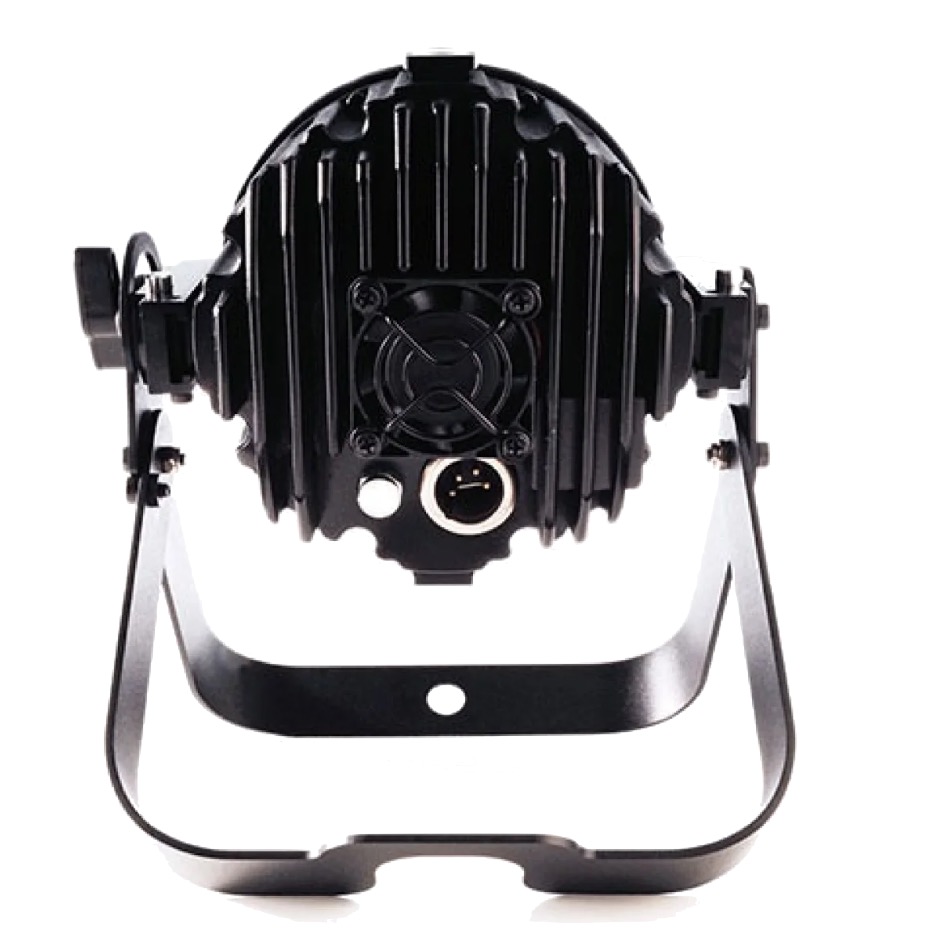

01 XLR4 Chassis Male (power & Data)
Control
– Protocol USITT DMX-512-A
Inout
01 XLR4 Chassis Male (power & Data)
