Accessories supplied with the unit
Incl. cone connector set (4x cone connector, 8x truss pin, 8x R-Clip)

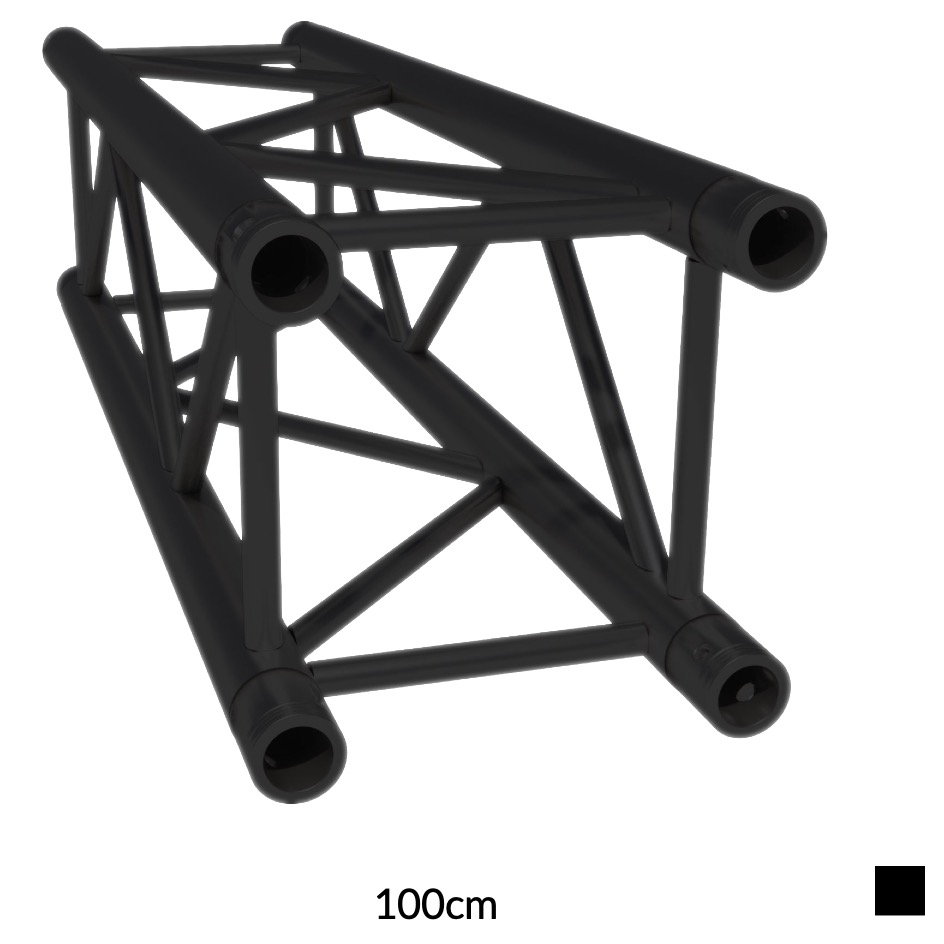

- The standard in truss technology is called HOFKON 290-4 and has established itself across the board thanks to its balance between dead weight and performance, coupled with the simple handling of conical connectors.
Whether used for exhibition stands, small stage canopies, as a frame for advertising media and screens or combined with the 290-1, 290-2 and 290-3 series: the 290-4 series trusses offer attractive performance features and quick assembly.
Physically
– Aluminium EN AW 6082 T6
– Color/Finish black
– Dimensions | W: 287mm | H: 287mm | Lenght 100cm
– Main Chord Ø48mm x 3mm
– Diagonal Chord Ø25mm x 2mm
– Weight 9 kg
