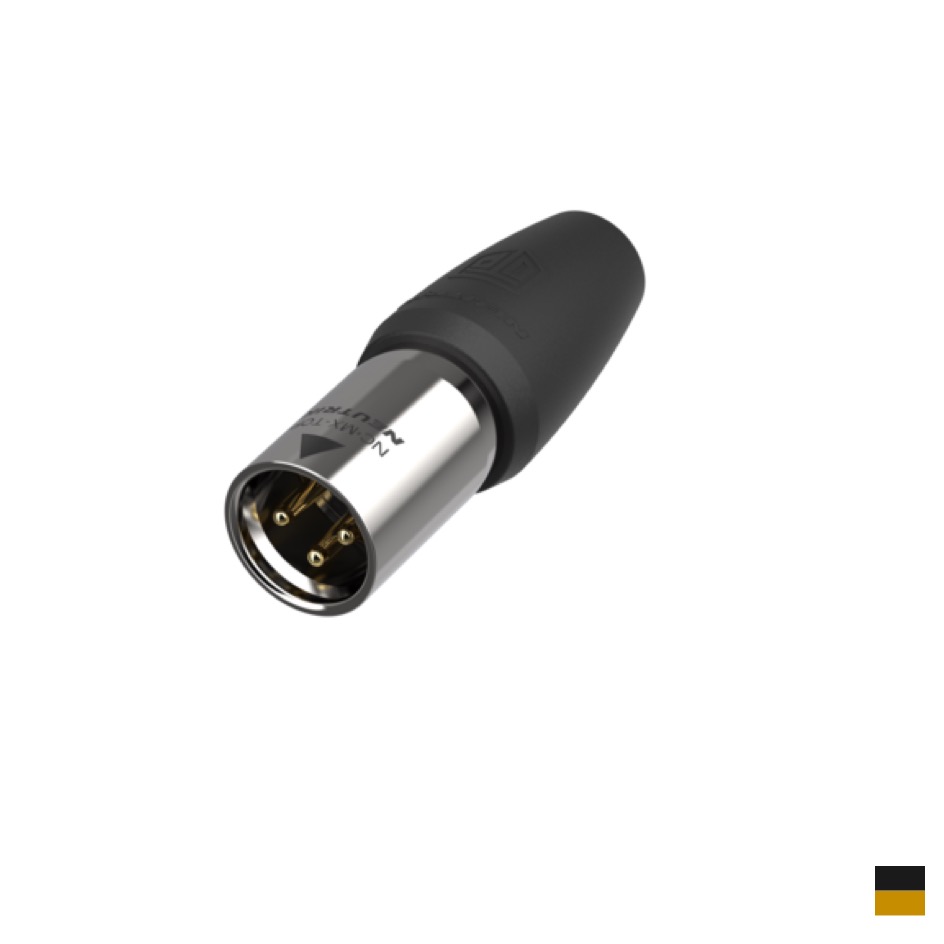

Features
- Sealed XLR connector for use in harsh environments with the highest requirements.
- Protection class IP65
- Impact-resistant UV-resistant material
- Complies with TOP requirements based on UL50E
Physically
– Zinc die casting (ZnAI4Cu1)
– Connector Type: Cable plug 3×1.5mm2
– Connection Type: Soldering contact
– Cablediameter: 5mm to 8mm
– IP protection IP65 (mated)
– Color/Finish nickel-black, gold-plated
– Dimensions | L: 64mm | Ø: 23mm
Thermally
– Ambient temperature -30°C – 80°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage < 50V
– Max. Rated Current 16A
– Wire cross section: 1.5mm2
