- Unique female cage contact reduces contact resistance and increases conductivity with less wear on mating contact
- Female contact with solder stop prevents solder from flowing into mating area
- Female cable connector with ergonomic and larger locking latch for easier handling and operation
- Additional ground contact for best housing connection
- Improved collet design further increases pull-out force and simplifies assembly
- Cable grommet with polyurethane bend protection protects the cable against bending stress at the connector end
- Color coding and marking options using colored rings and collets
- Slim and ergonomic design – high quality and easy to handle
- Rugged, durable die-cast metal housing
- Internal thread in housing is protected against damage
Physically

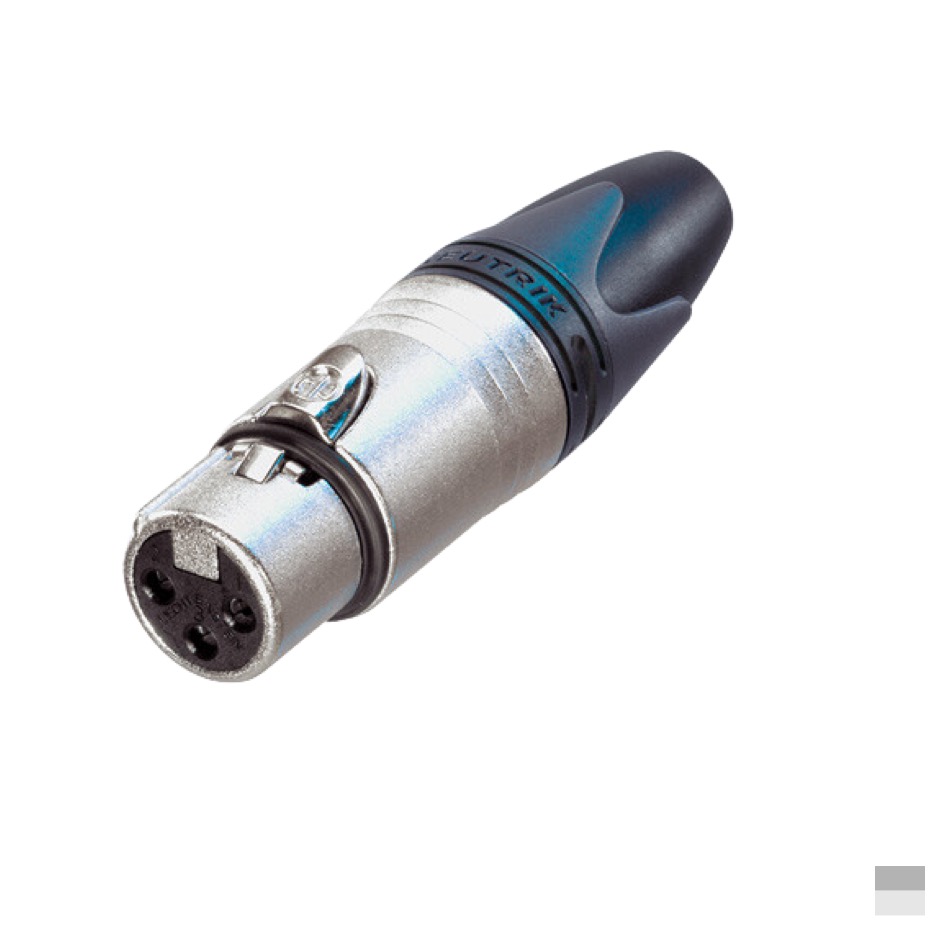

– Connector Type: Line Female
– Connection Type: Soldering contact
– Cablediameter: 3.5mm to 8mm
– Color/Finish nickel, silver plated
– Dimensions | L: 73mm
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage < 50V
– Max. Rated Current 16A
