Detailed description

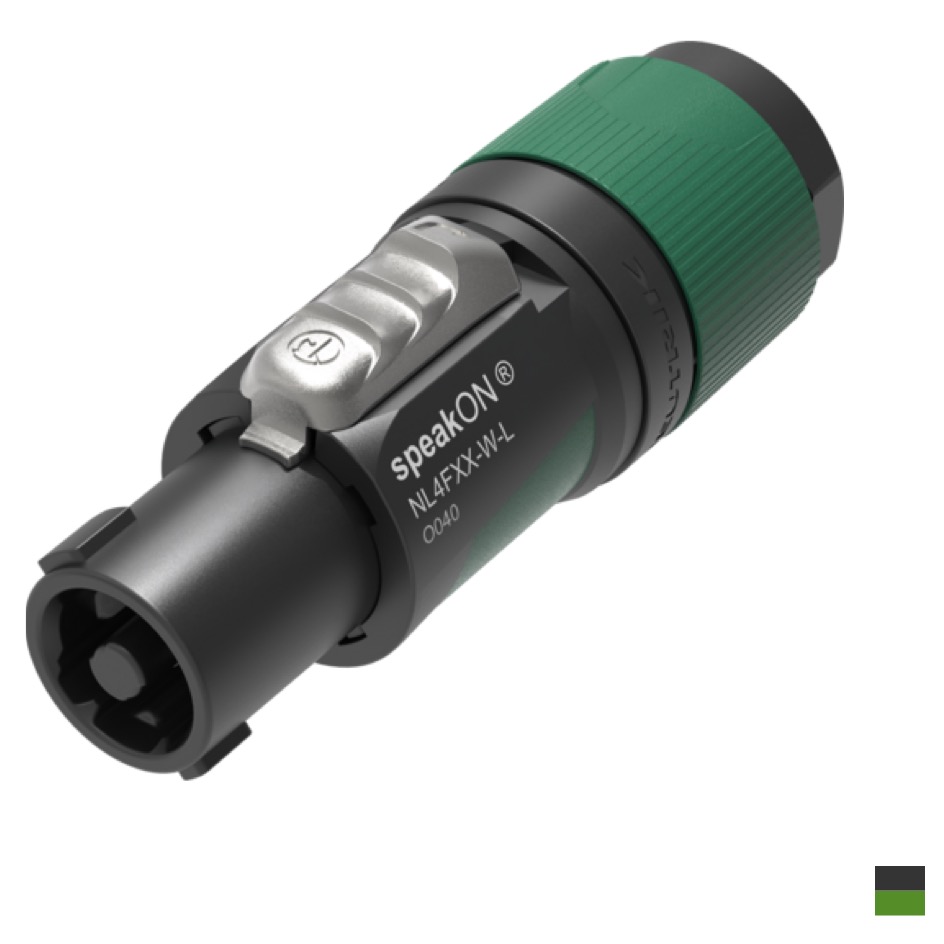

- The speakON cable connectors are the standard connectors for amplifier / loudspeaker connections. The 2- and 4-pole speakON cable connectors have been specially developed for high current loads such as those found in sound reinforcement and PA applications. The speakON cable connectors in a robust plastic housing have a traditional Neutrik collet strain relief, a unique locking system and touch-safe contacts.
Features
- New ergonomic design with non-slip two-component housing
- Simple assembly: collet mechanically engages in the insert. Both components form a fixed unit (see also video below)
- Rated current up to 37 A effective value (rms)
- Unique NEUTRIK locking mechanism and strain relief for cable diameters from 10 to 16 mm
- IEC 61984 certified and therefore approved as a component for devices according to IEC 62368-1
- Superior NEUTRIK quality standard, extremely robust and reliable
- Simple and reliable twist-lock system
- Improved kink protection thanks to two-component clamping sleeve.
Physically
– by Standard IEC 61984: 37 A 250 V AC
– Polyamide (PA6.6)
– Connector Type: Cable socket 4×1.5 – 4mm2
– Connection Type: Screw contact
– Cablediameter: 10mm to 16mm
– IP protection IP20
– Color/Finish blackgreen
Thermally
– Ambient temperature -33°C – 80°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 250V AC This product is expressly not intended for use as a mains or power supply plug!
– Max. Rated Current 30A
– Wire cross section: 1.5mm2 to 4mm2
