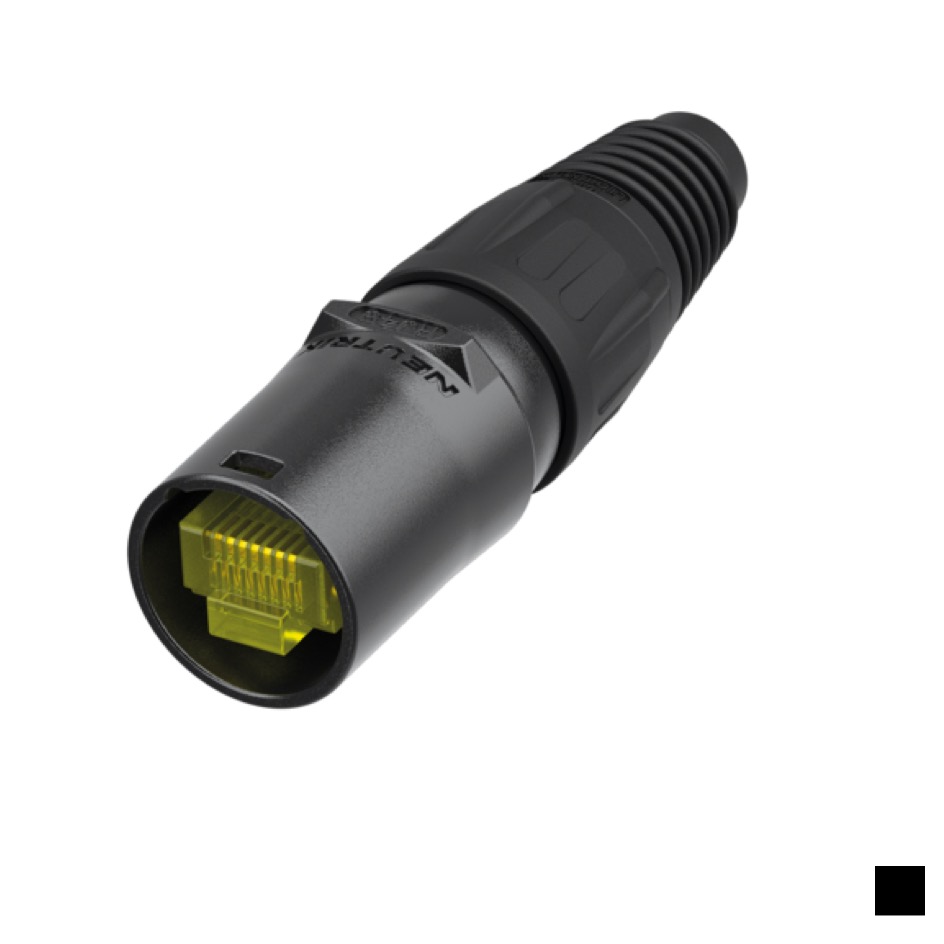

- The NE8MX-B-1 consists of a black chrome housing, collet chuck and bend protection. An RJ45 is not included.
- The BSX anti-kink protection, which is also used in the XLR-X series, is suitable for cable diameters from 3.5 to 8 mm. Half shells for fixing the RJ45 as with the predecessor NE8MC-B-1 are no longer necessary. This simplifies and shortens the assembly process.
- The NE8MX-B-1 upgrades conventional RJ45 plugs to an extremely robust and lockable solution.
- Attention! Not compatible with the CAT6 panel jacks NE8FDY-C6 and NE8FDY-C6-B.
Note: The 8 + 2 XLR is a robust alternative to RJ45.
Features
- The RJ45 system for harsh environments with high loads
- Suitable for all common RJ45 (see list under “Downloads”)
- Robust die-cast housing and unique collet chuck for strain relief
- Optimal protection for Ethernet connections with fragile standard RJ45s
- Flattened marking on the housing for better orientation
- Suitable for standard non-prefabricated RJ45 cables
- Color coding: BSX bend protection available in 9 different colors as an accessory
Physically
– Cablediameter: 3.5mm to 8mm
– Color/Finish black
Thermally
– Ambient temperature -40°C bis 70°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
