Detailed description

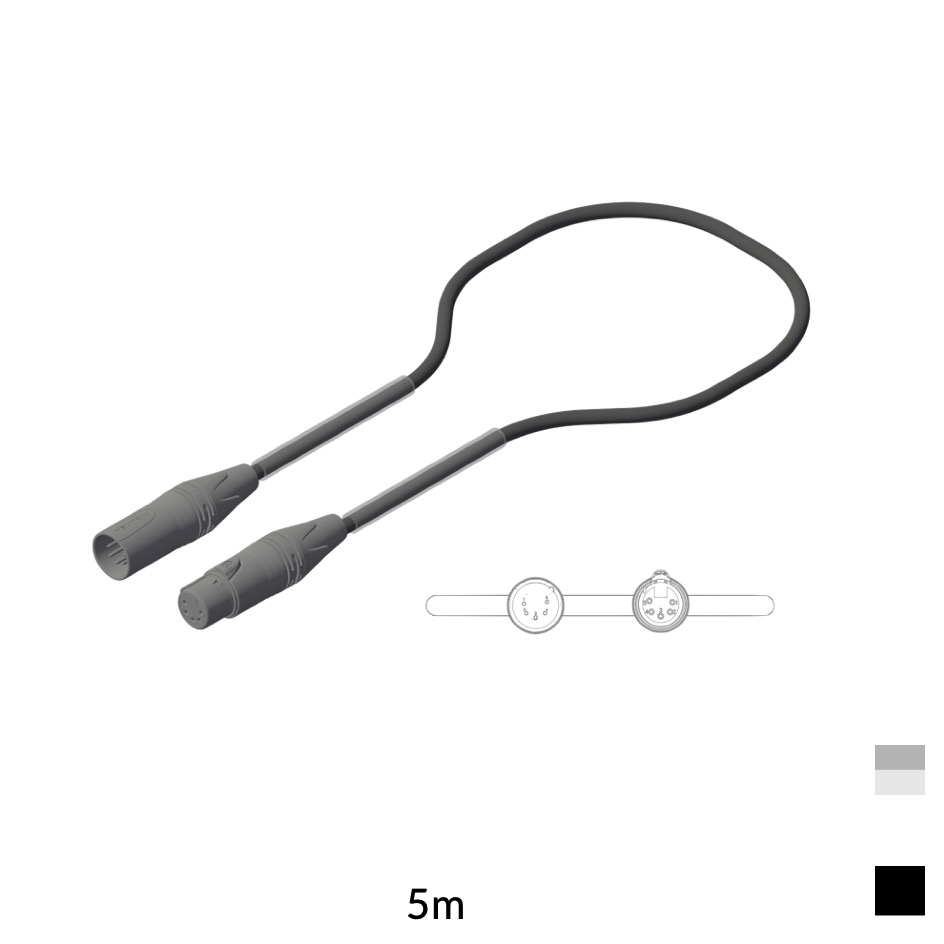

- PROPLEX-P” series data cables are built to survive the toughest conditions, yet handle and coil well, again and again and again.
They have been exhaustively developed, tested and re-tested. When data transmission is critical, there is only one option
Extra-rugged, flexible data cables, double-shielded, low capacitance. Suitable for MIDI, DMX512, RS485/RS422 and other formats in portable applications.
TESTING: TMB guarantees that all ProPlex data cables perform to specification as follows: Continuity, Impedance, and Capacitance
Physically
– Polyurethane, UV-resistant | PC224P 4×0.34mm2
– Cablediameter: 7.24mm
– Color/Finish black
Thermally
– Ambient temperature -40°C – 105°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Wire cross section: 0.34mm2
– Shielding data: Inner: Aluminum/mylar, 100% coverage. Outer: Tinned copper braid, 85% coverage
Data 1. Side:
Cable plug Neutrik XLR5 Line Male (NC5MXX), nickel, silver plated
Data 2. Side:
Cable socket Neutrik XLR5 (NC5FXX), nickel, silver plated
Prepared heat shrinkable tubing:
With both sided heatshrink (transparent) with 75mm lenght, for subsequent marking of the cables with e.g. barcode, length or color marking or company name.
Control
– Protocol DMX512, RDM, RS485, RS422, AES/EBU, MIDI
