Description
Technical data at a glance

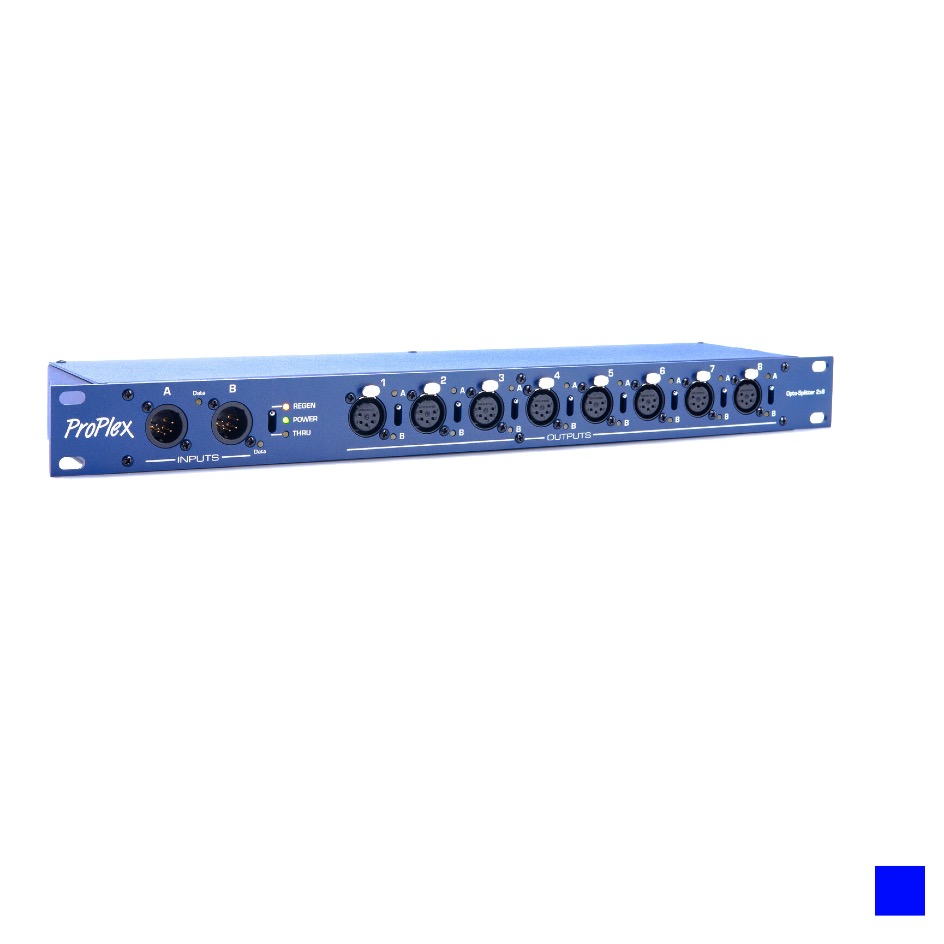

Two DMX512 inputs, individually switchable to up to 8 outputs with DMX regeneration function ensures compatibility between DMX devices.
In: powerCON 20A Chassis (blue)
Out: Locking power cable 20A grey | 100 – 240VAC 50/60Hz | 10W | DATA IN: 01 XLR3 Chassis Male
01 XLR5 Chassis Male | DMX512-A | DATA OUT: 04 XLR3 Chassis Female, optical isolated
04 XLR5 Chassis Female, optical isolated | DMX512-A | Parameter: 1024
Rack-mount enclosure 19 inch | 1U
Dimensions (mm) | T: 100 | B: 483 | H: 44,5 | 1,5kg
Downloads
User Manual
System Diagram
Specification
Manufacturers Page
Technical Drawing (.pdf)
Features
- Two DMX512 inputs individually switchable to up to 8 outputs
- DMX regeneration feature ensures compatibility between DMX devices
- Available with all 5-pin XLR connectors or as a 3/5-pin combo unit
- Shock-mounted circuitry. Designed for extreme conditions and temperatures
- ProPlex “Blue Box” RackMount enclosure
- Designed and built for working professionals in entertainment production
Physically
– Rack-mount enclosure 19 inch | 1U
– Color/Finish blue
– Dimensions | W: 483mm | H: 44,5mm | D: 100mm
– Weight 1,5 kg
Thermally
– Ambient temperature -20°C – 40°C
– Convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 10W
Power connector input
powerCON 20A Chassis (blue)
Power connector output
Locking power cable 20A grey
Control
– Protocol DMX512-A
– Protocol Output DMX512-A
Inout
01 XLR3 Chassis Male
01 XLR5 Chassis Male
Output
04 XLR3 Chassis Female, optical isolated
04 XLR5 Chassis Female, optical isolated
Signal Latency 2µsec
Amount of Universes 2 (1024 DMX-Channels)
