Description
Technical data at a glance
In: powerCON 20A Chassis (blue) | 100 – 240VAC 50/60Hz | 15W | DATA IN: 01 XLR5 Chassis Male | DMX512-A | DATA OUT: 05 XLR5 Chassis Female, optical isolated | DMX512-A | Parameter: 512
Rack-mount enclosure portable 9.5 inch | 1U
Dimensions (mm) | T: 223 | B: 196 | H: 44 | 2,1kg
Downloads
User Manual
System Diagram
Rack Mount Kit Manual
Specification
Manufacturers Page
Technical Drawing (.pdf)
Detailed description

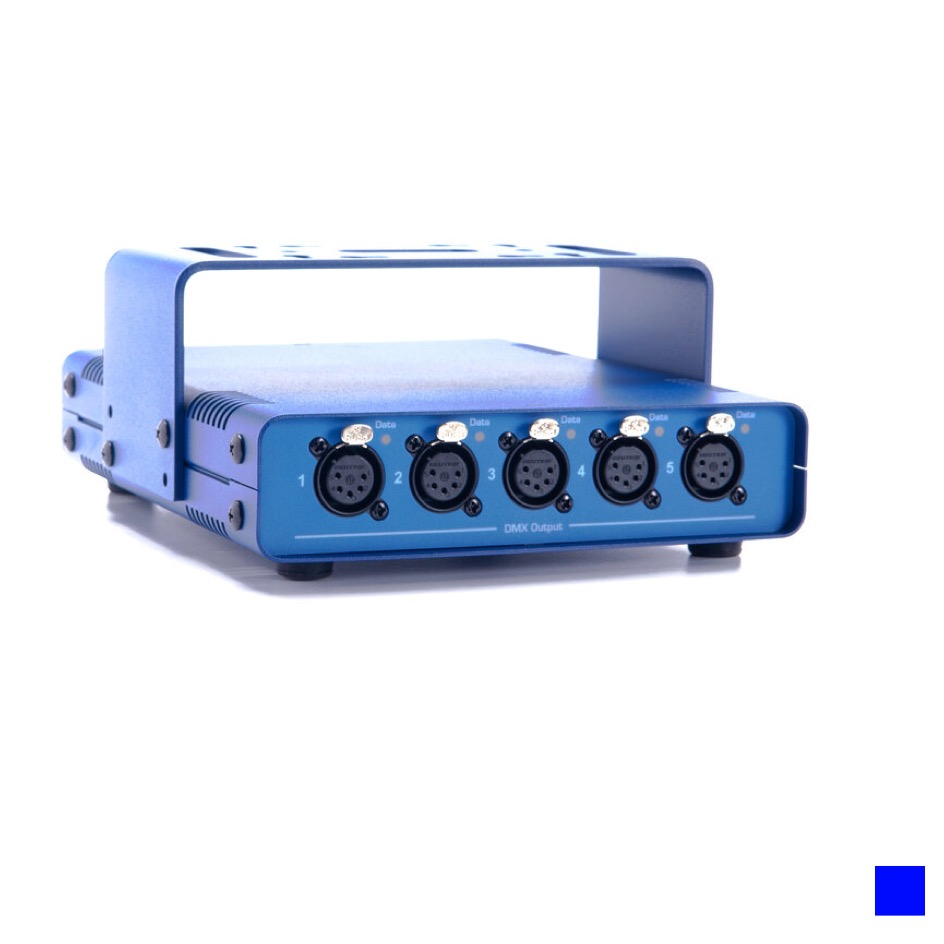

- The ProPlex Opto-Splitter is range is designed for standard DMX-512 signal amplification, regeneration, and splitting to multiple outputs.
Just a few of the features include:
– Shock-mounted circuitry. Designed for extreme conditions and temperatures.
Physically
– Rack-mount enclosure portable 9.5 inch | 1U
– Color/Finish blue
– Dimensions | W: 196mm | H: 44mm | D: 223mm
– Weight 2,1 kg
Thermally
– Ambient temperature -20°C – 40°C
– Convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 15W
Power connector input
powerCON 20A Chassis (blue)
Control
– Protocol DMX512-A
– Protocol Output DMX512-A
Inout
01 XLR5 Chassis Male
Output
05 XLR5 Chassis Female, optical isolated
Signal Latency 0.1µsec
Amount of Universes 1 (512 DMX-Channels)
