Description
Technical data at a glance

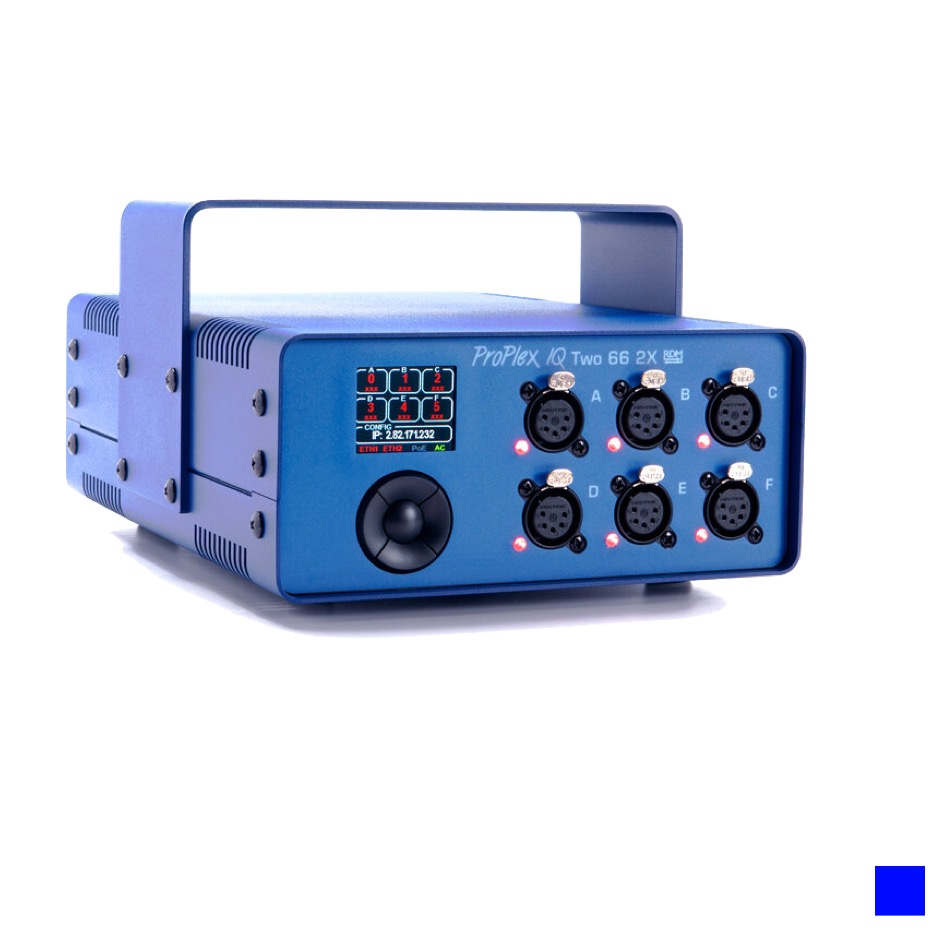

High-power processor for glitch-free data conversion, patching and merging of up to six universes.
In: powerCON 20A Chassis (blue)
Out: powerCON 20A Chassis out (grey) | 100 – 240VAC 50/60Hz | 48W | LAN IN: 02 NEUTRIK Ethercon 1GBE | art-NET, sACN, PoE In (802.3af)
Universes per Device: 6 | Parameters per Device: 3’036 | DATA IN: 06 XLR5 Chassis Female (individually configurable as input or output) | DMX, RDM bidirectional | Parameter: 3’036
Rack-mount enclosure portable 9.5 inch | 2U
Dimensions (mm) | T: 272.3 | B: 202 | H: 87 | 4,64kg
Downloads
User Manual
System Diagram
Rack Mount Kit Manual
Firmware
Specification
Manufacturers Page
Technical Drawing (.pdf)
Detailed description
- Powerful yet intuitive feature set, control, management, via on-board LCD, Browser Interface, or ProPlex Software
- Dual EtherCon ports allow very low latency linking of units and, with GBS and EZ-LAN, ring topology for speed and redundancy
- PoE power-in option for convenience or dual-power redundancy
- Merge ArtNet or Streaming ACN from multiple sources
- Full bi-directional RDM functionality. Input or output on any DMX connector.
- Rugged “BSH” PortableMount enclosure with removable truss yoke. Single and Dual RackMount Kits available
Physically
– Rack-mount enclosure portable 9.5 inch | 2U
– Color/Finish blue
– Dimensions | W: 202mm | H: 87mm | D: 272.3mm
– Weight 4,64 kg
Thermally
– Ambient temperature -20°C – 40°C
– Convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 48W
Power connector input
powerCON 20A Chassis (blue)
Power connector output
powerCON 20A Chassis out (grey)
Control
– Protocol DMX, RDM bidirectional
Inout
06 XLR5 Chassis Female (individually configurable as input or output)
Amount of Universes 6 (3’036 DMX-Channels)
Network
– Protocol art-NET, sACN, PoE In (802.3af)
– Network Universes 6
Input
02 NEUTRIK Ethercon 1GBE
