Features
- The ProPlex Opto Splitters are designed to amplify, regenerate and split RDM signals to multiple outputs.
- Full RDM functionality
- Switchable regeneration mode
- Shockproof mounted circuits. Designed for extreme conditions and temperatures.
Here are just some of the features:
Physically

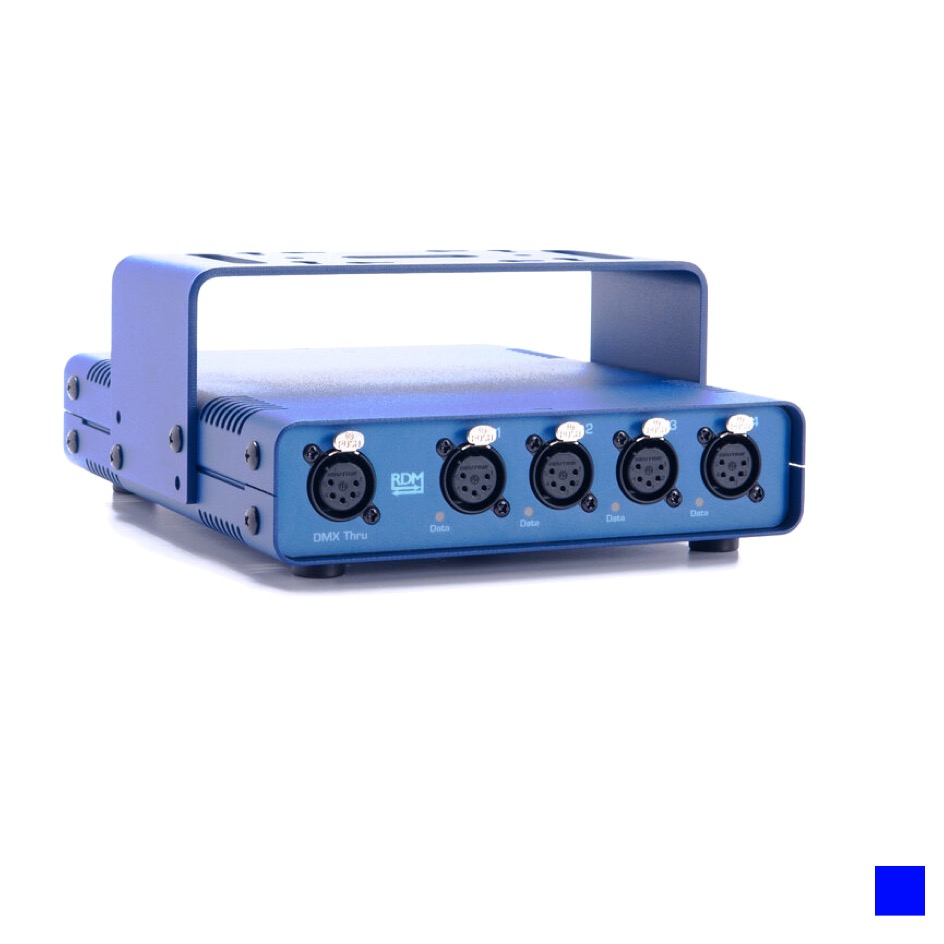

– Rugged, tour-ready ProPlex “BSH” Mini PortableMount enclosure
– Color/Finish blue
– Dimensions | W: 190mm | H: 44mm | D: 223mm
– Weight 2,1 kg
Thermally
– Ambient temperature -20°C – 40°C
– Convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 15W
Power connector input
powerCON 20A Chassis (blue)
Power connector output
Chassis socket compatible with Neutrik powerCON 20 grey
Control
– Protocol DMX512-A, RDM
– Protocol Output DMX512-A, RDM
Inout
01 XLR5 Chassis Male
Output
01 XLR5 Chassis Female Loop Out
04 XLR5 Chassis Female, optical isolated
Signal Latency 2µsec
Amount of Universes 1 (512 DMX-Channels)
