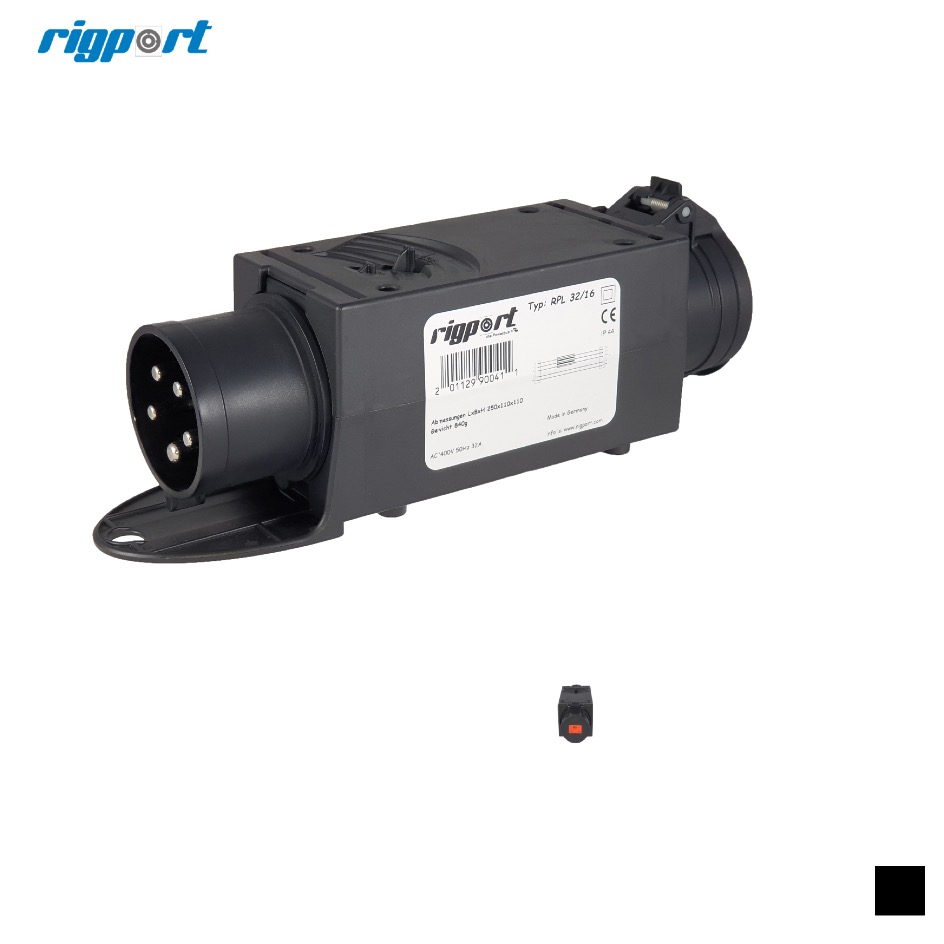

- CEE Inline
- small maintenance-free on-stage power distribution units
- completely black for the most inconspicuous installation possible
- cannot be mounted with RPL-Clamp50 in the truss
Physically
– Housing polyamide
– IP protection IP54
– Color/Finish black
– Dimensions | W: 241mm | H: 95mm | D: 174mm
– Weight 0,98 kg
Electrically
– electrical protection class Isolated
– Operating voltage 400V/230V AC 50Hz
– Max. Rated Current 3 x 16A
Power connector input
01 x Chassis plug PCE CEE32-5 black
Power connector output
01 x PCE CEE16-5 black
Circuit breaker
01 x miniature circuit breaker 16A C-type
