Shelly PRO 3M
Manufacturers Page
Features
- Measurement of all 3x phase conductors and neutral conductor
- WatchDog function for limit values
- Power measurement on each channel

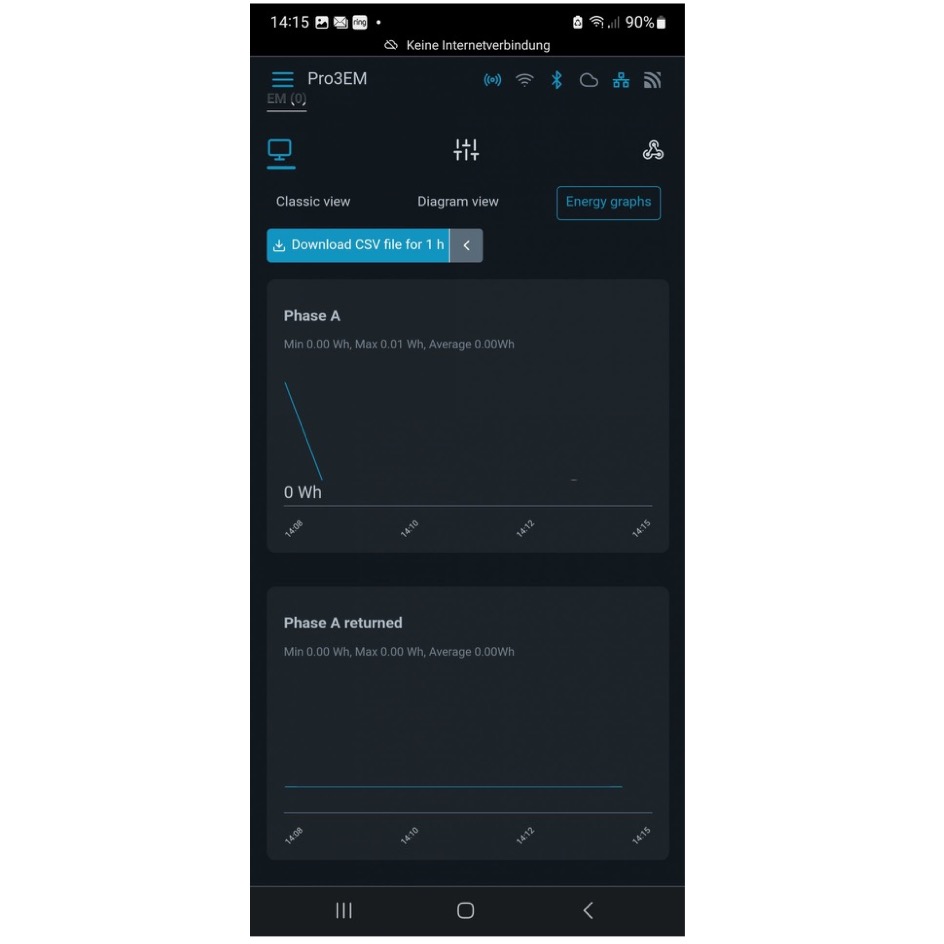

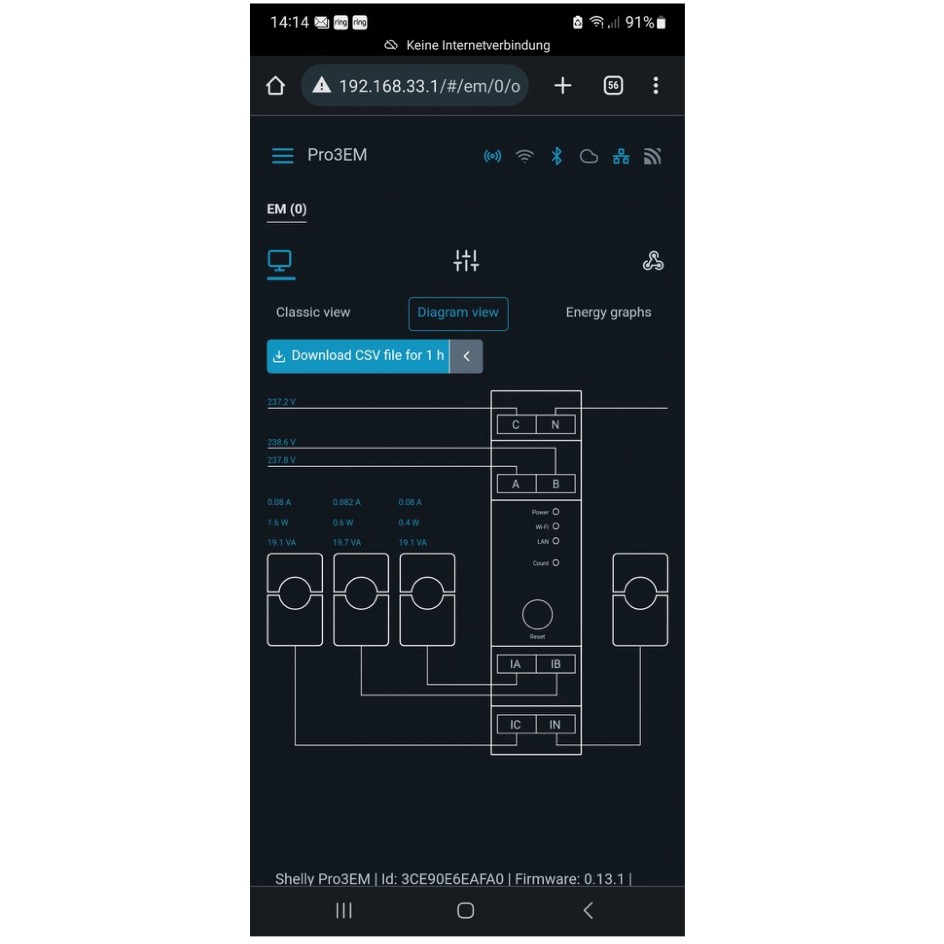

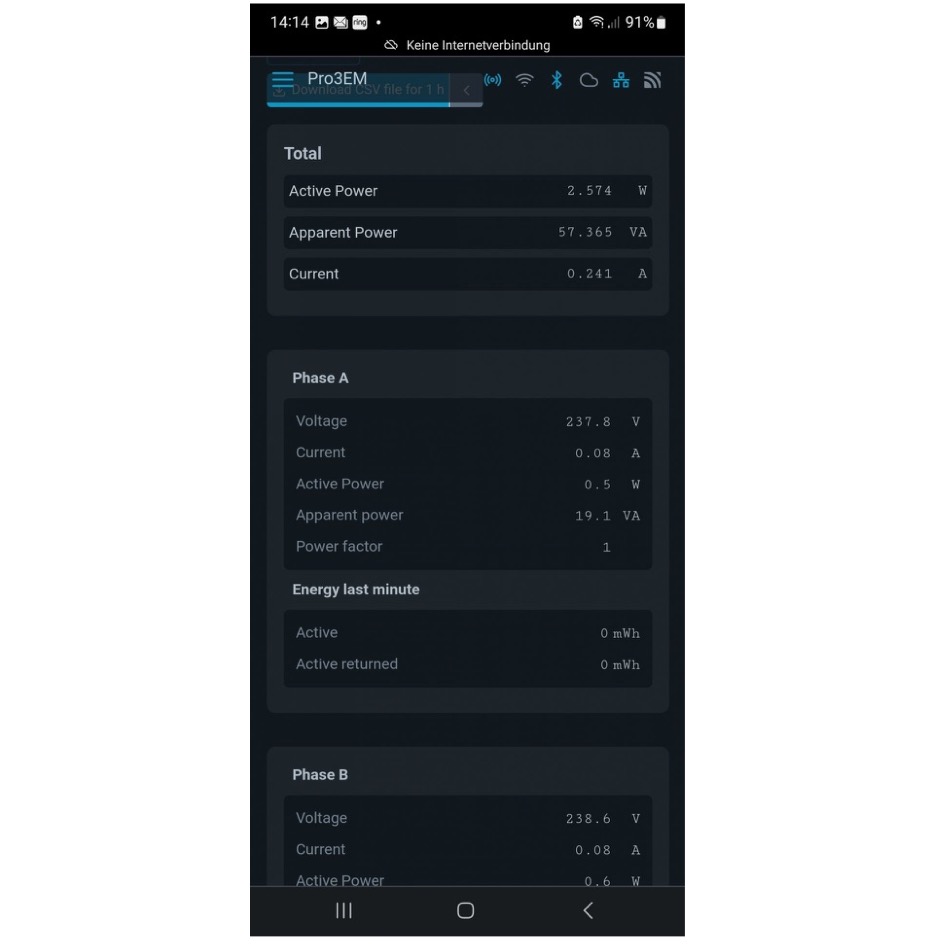

- Web server for monitoring and configuration
- Ethernet, Wi-Fi, MQTT, Bluetooth…
- Power measurement with data storage
- Intelligent schedules, scripting, webhooks
- Internet connection
- PowerCON service socket via RCBO

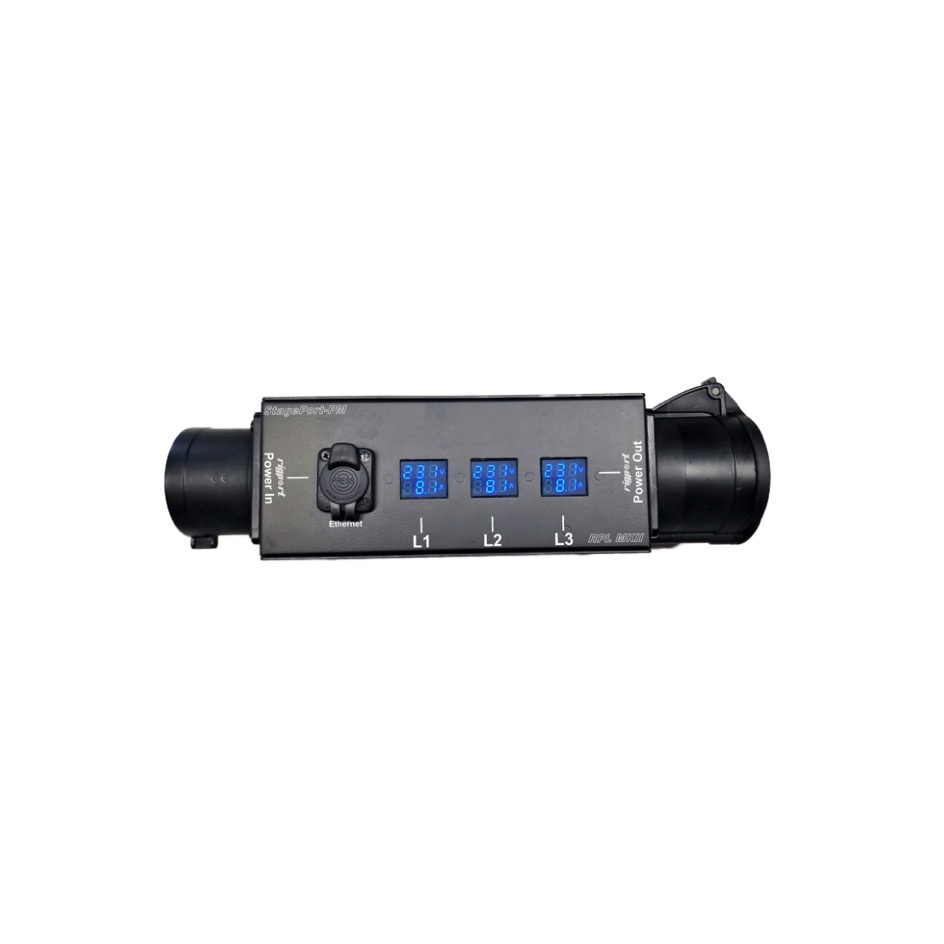

- 3x digital display voltmeter ammeter, for each phase
- Voltage measuring range: 60 V to 500 V, measuring accuracy ±1
- Current measurement: 0 to 150 A, measuring accuracy ±1

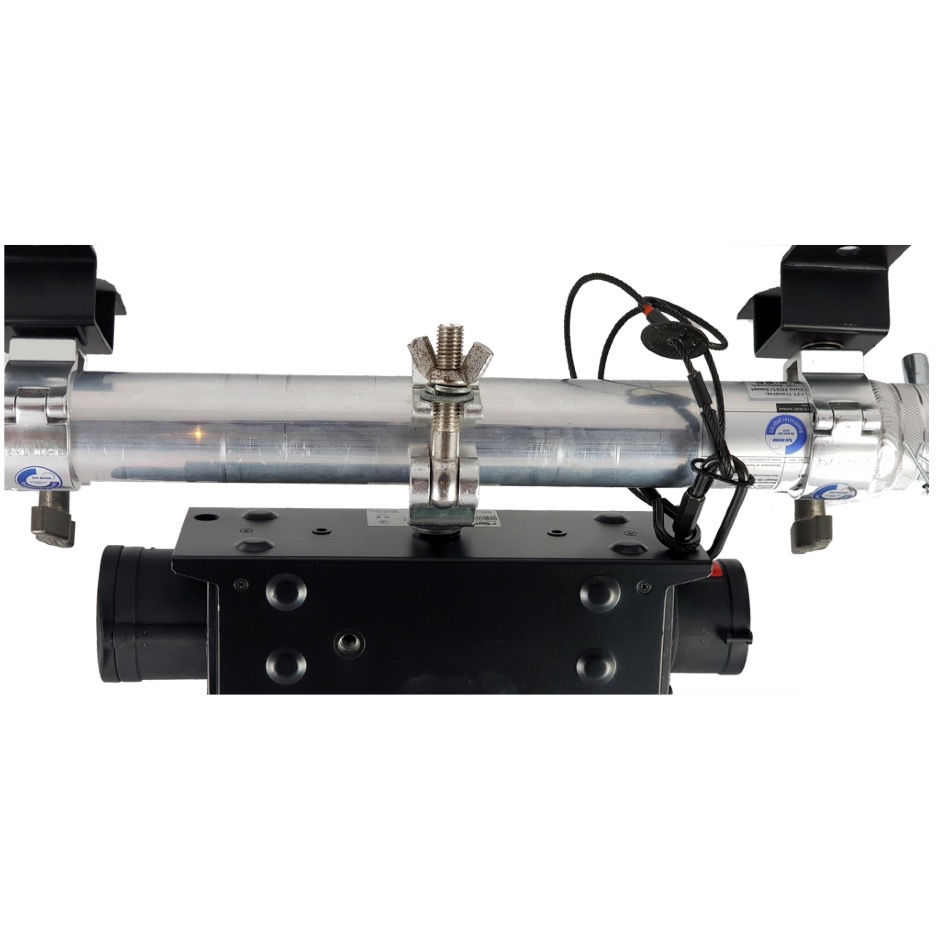

- 2x M10, safety eyelets
- Shelly Pro 3EM
- Optional switching output
- Optional Janitza UMG806
Physically

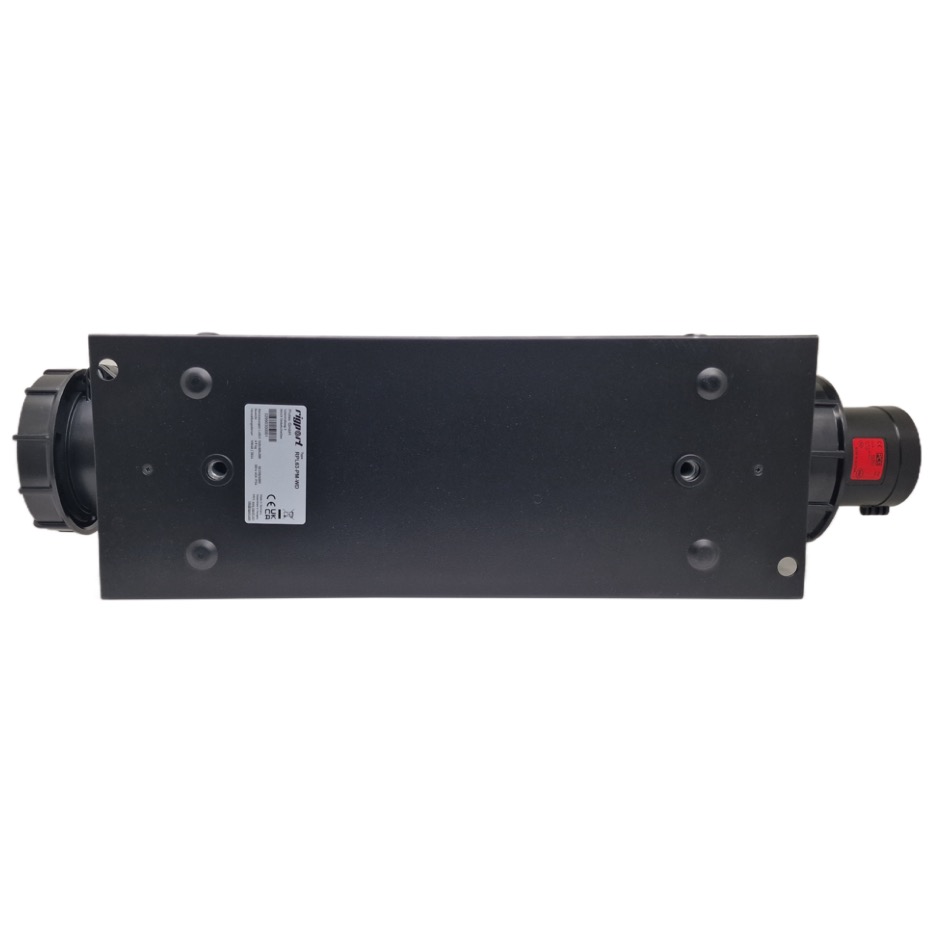

– Housing Sheet steel
– IP protection IP54
– Color/Finish black
– Dimensions | L: 321mm | W: 90mm | H: 100mm
– Weight 1,6 kg
Electrically
– electrical protection class Protection Earth
– Operating voltage 400V/230V AC 50Hz
– Max. Rated Current 3 x 32A
Power connector input

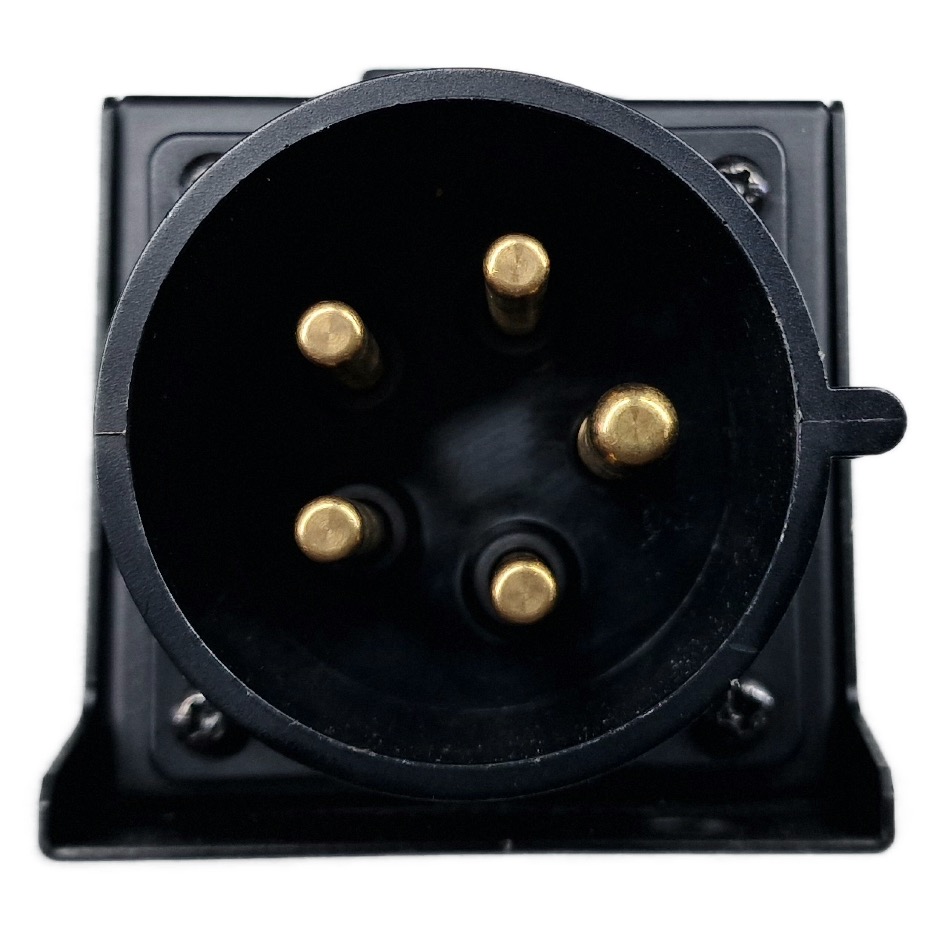

01 x Chassis plug PCE CEE32-5 black
Power connector output

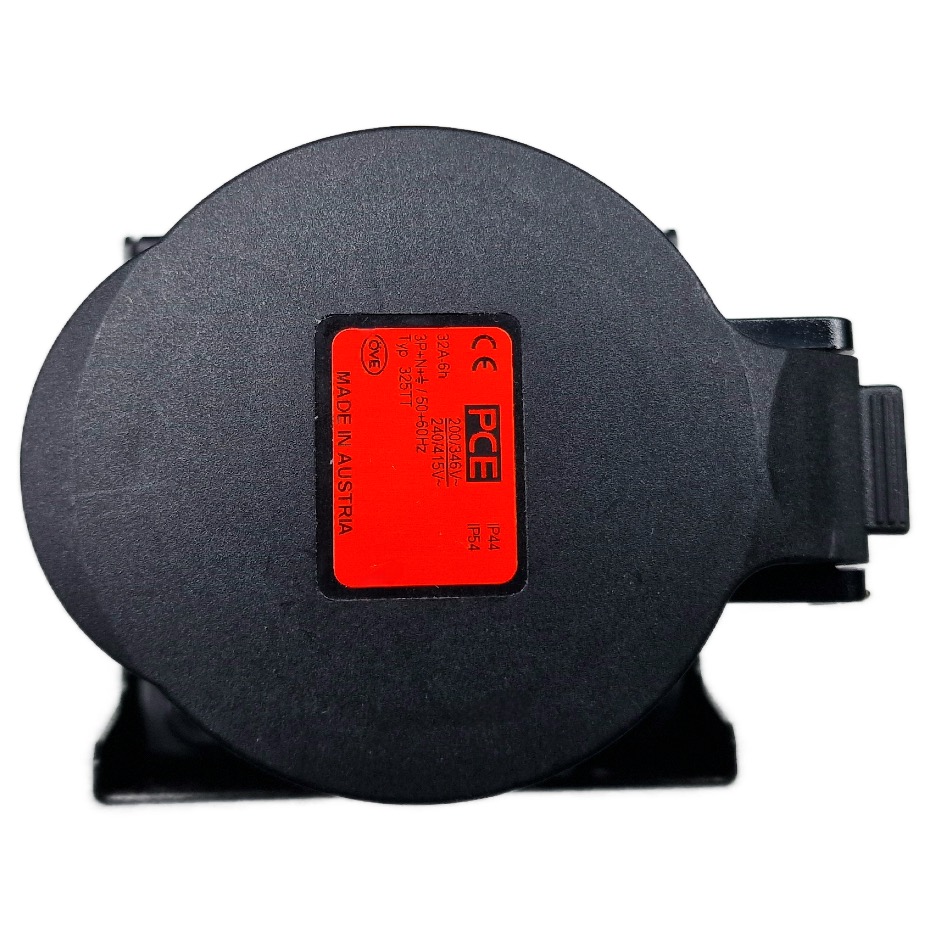

01 x PCE CEE32-5 black
Network
Input
01 x etherCON
Wi-Fi
– Standard Wi-Fi
Bluetooth (BT) INTERFACE
– Standard Bluetooth
