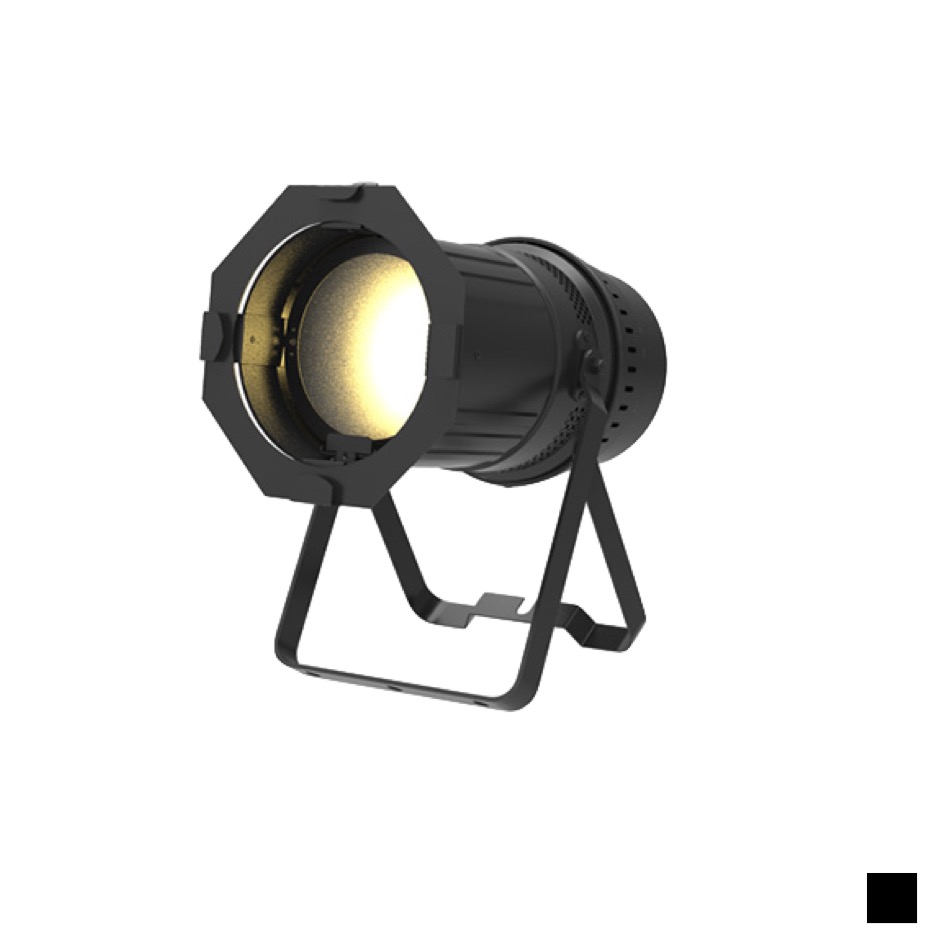

- Designed to bring back the vintage stylings of the original lamps and PAR cans but built with the DNA of Vari-Lite, the VL800 EVENTPAR WW has output and color reminiscent of tungsten PAR 64 lamps. With an outdoor rating of IP24 for protection against water spray from any direction, the fixture can withstand rainy conditions at your next outdoor event or installation. To meet the needs of any installation or event, the VL800 EVENTPAR WW is available in black, white, bronze, or polished aluminum.
Features
- Retro styling, color, and output
- RGBA and WW versions
- Gel color presets matched to traditional gel numbers
– Use the colors you have always used without the need to change gels - Outdoor rated (IP24)
- Adjustable frequency to exceed camera frame rates
– Camera -friendly fixtures for IMAG or live televised events - Multiple housing finishes available, including black, white, bronze, and polished aluminum
– Looks, feels, and functions like a classic tungsten fixture, but with modern capabilities
– Get that perfect tungsten look with output and color that matches the original fixtures
– Rated against water spray from any direction, providing weather protection
– select the perfect look for any event
Light source
– 200W LED Engine monochromatic
– 10251 Lumen
– Warm white 3000K | CRI: 97
– Adjustable Refresh Rate 1.2kHz-25kHz
Brightness control
– Electronic 8- or 16-bit dimming with 4 dimmer curves: Square Law, Linear, S-Curve, Dim Snap on/off
– Electronic Strobe (0-30Hz)
– Continuous, Random, Random Sync
Optical system
– Manual adjustable Beam Angle 10°, 15°, 20°, 25°, 30°
Physically
– by Standard CE, ETL, UL, FCC CSA, RoHS, ISO 9001
– Superstructure made of Aluminum, and steel metal plates, Covers Aluminum
– IP protection IP24
– Color/Finish black
– Dimensions | L: 256mm | W: 298mm | H: 564mm
– Weight 7 kg
Thermally
– Ambient temperature 0°C bis 40°C
– Hybrid sealed liquid and forced air system
– Fan modes: Continuous (On) / Auto Ramping Standard, Studio, Whisper
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 200W
Power connector input
powerCON TRUE1 compatible chassis plug
Power connector output
powerCON TRUE1 compatible chassis socket
Control
– Protocol DMX512-A, RDM
– 3 DMX-Modes with 1, 4, 6 DMX-Channels
Inout
01 XLR5 Chassis Male
Output
01 XLR5 Chassis Female
