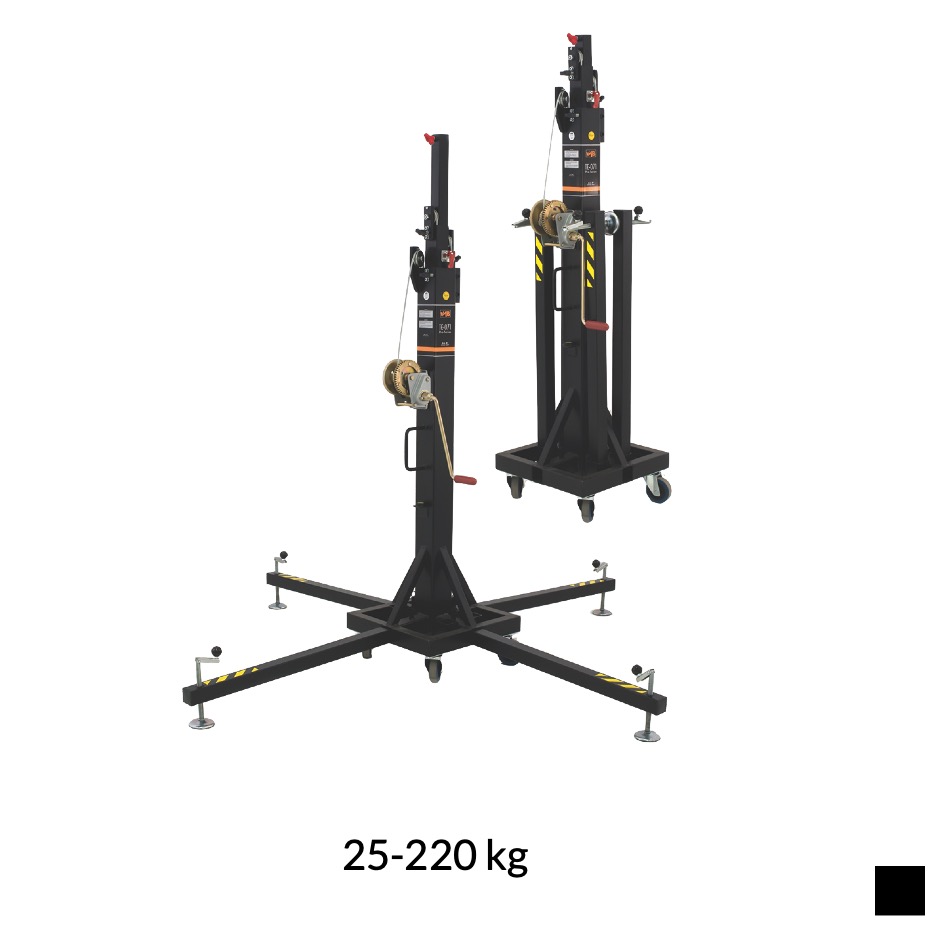

- This lifting tower has a larger steel base than its predecessors, which gives it greater stability.

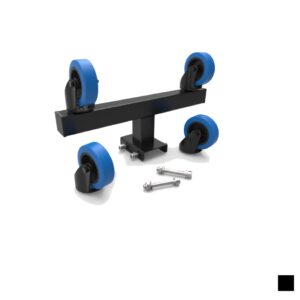

The tower can be pushed into a van or truck by pre-assembling the RH-1 transport accessory. It is capable of lifting 220kg to 5.35m, has 4 large stabilizers with non-slip rubber plates and a spirit level for accurate levelling.
It is composed of 4 steel profiles with high resistant, anti-torsion steel cable and guided through reinforced pulleys.
Safety is always the strong point of VMB Prolifts, this lifter incorporates the patented automatic ALS locks, which prevents the TE-071 lift from falling in the unlikely event of cable breaking.
A wide range of accessories are available.
Features
- – Four telescopic profile systems operated by steel cables and guided by steel rollers with ball bearings.
– Winch: 450Kg. maximum load with automatic brake.
– Steel cable 6mm according to DIN 3060. quality 180Kg/mm2 torsion proof.
– Exclusive ALS-System (Auto-Lock-Security)
– Non-slip supports
– Safety locks to anchor the legs
– Anti-rust, primed paint
– Spirit level for vertical alignment of the tower
– Swivel wheels for transporting the lift when folded.
Physically
– Nominal capacity WLL 25-220 kg
– by Standard BGV-C1, Steel Profile DIN 2394, Steel Cable DIN 3060
– with Mounting for accessories with Ø35mm
– Color/Finish black
– Dimensions
Work area | Lenght 2.1m | Width 2.1m | Height max. 5.35m
Transport area | Lenght 0.47m | Width 0.47m | Height 1.73m
– Weight 71 kg
