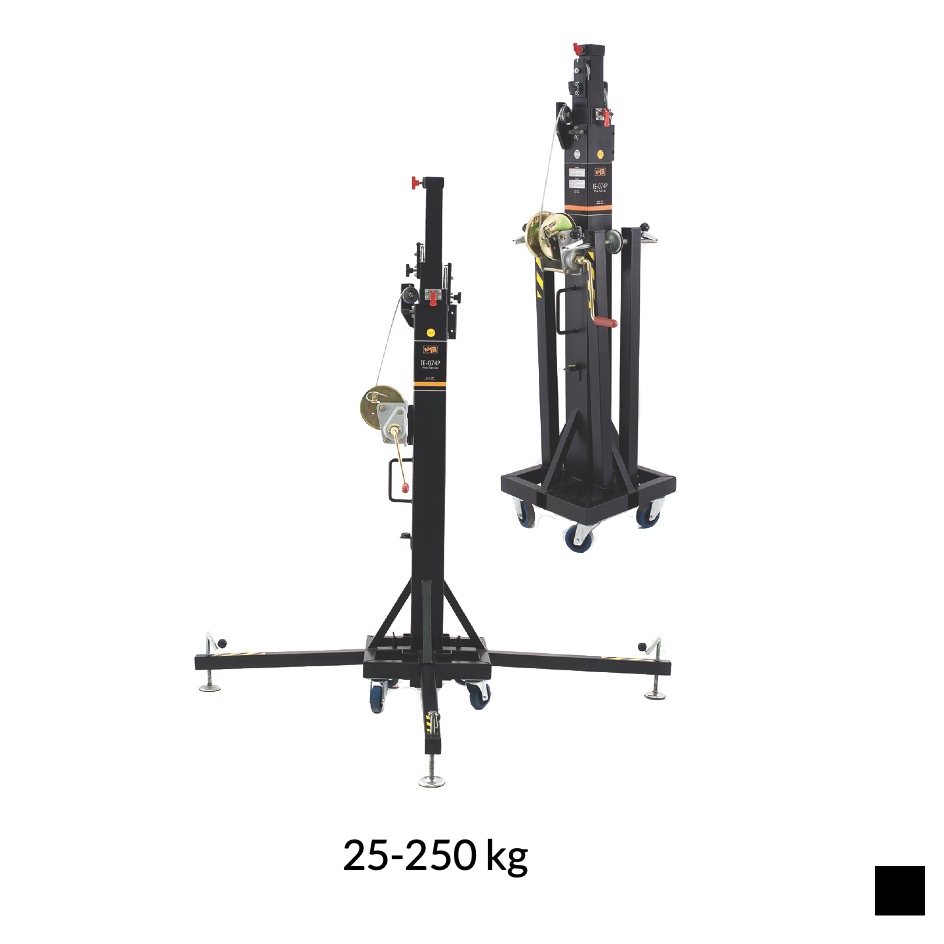

- The telescopic lift TE-074 offers high performance in accordance with the high standards of VMB.
It consists of four large steel profiles, with high resistant, anti-torsion steel cable and guided through reinforced pulleys. It is finished with e-poxy powder paint.
It is capable of lifting 250kg to a maximum height of 5.35m. Can be used both indoors and outdoors, such as in shows, concerts, orchestras, discos, etc.
It has 4 stabilizers, perfect for difficult terrains with a certain slope. An RH-1 transport kit can be installed , to be able to transport the lifter in vans, trucks, etc. with the lifting tower lying horizontal.
Safety is the strong point of VMB, thanks to our patented ALS locks, with high strength steels, makes it impossible for the lifter to collapse in the unlikely event of cable breaking.

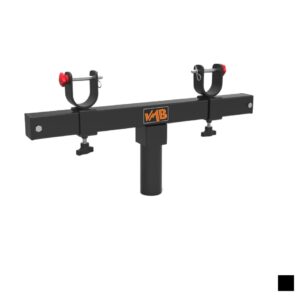

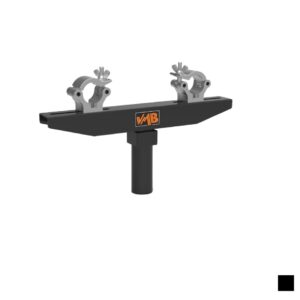

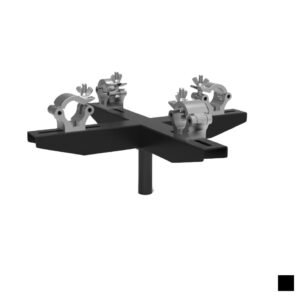

A wide range of accessories are available.
Features
- – Four telescopic profile systems operated by steel cables and guided by steel rollers with ball bearings.
– Winch: 900Kg. maximum load with automatic brake.
– Steel cable 6mm according to DIN 3060. quality 180Kg/mm2 torsion proof.
– Exclusive ALS-System (Auto-Lock-Security)
– Non-slip supports
– Safety locks to anchor the legs
– Anti-rust, primed paint
– Spirit level for vertical alignment of the tower
– Swivel wheels for transporting the lift when folded.
Physically
– Nominal capacity WLL 25-250 kg
– by Standard BGV-C1, Steel Profile DIN 2394, Steel Cable DIN 3060

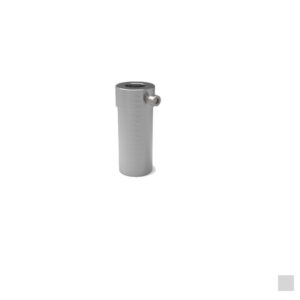

– with Mounting for accessories with Ø55mm
– Color/Finish black
– Dimensions
Work area | Lenght 2.1m | Width 2.1m | Height max. 5.35m
Transport area | Lenght 0.47m | Width 0.47m | Height 1.74m
– Weight 91 kg
