Accessories supplied with the unit
02 x fork 54.5cm

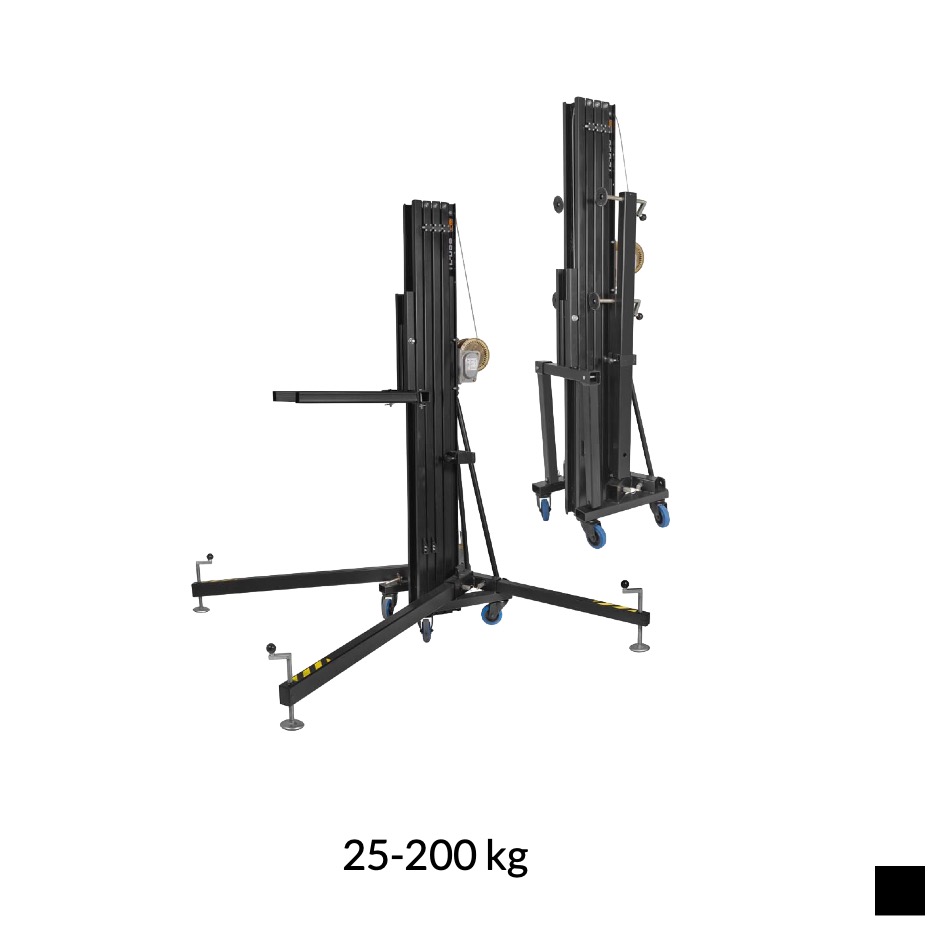

- This lifting tower is very compact and easy to handle, it has 4 swivel castors on the base and can fit through a door.
Powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope.
Black finish, with epoxy powder paint offering great resistance.
It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.
VMB offers you a wide range of accessories, which combined with this lifter allows you to increase the number of applications. One of the most used accessories, for example, is the RH-2 transport kit, which serves to tilt the lifter, horizontally and make the transportation in vans, trucks, etc. easier.
The TL-056 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift’s aluminum sections will rise in order, and most importantly: automatically.
Features
- – 6082-T6 alluminium for the main body, comprised of 4 profiles and lifting carriage.
– Base and legs are made of steel profiles according to DIN 2394.
– Catches and pulleys of ST-37 steel
– Winch: 900Kg Maximum load with
