Detailed description

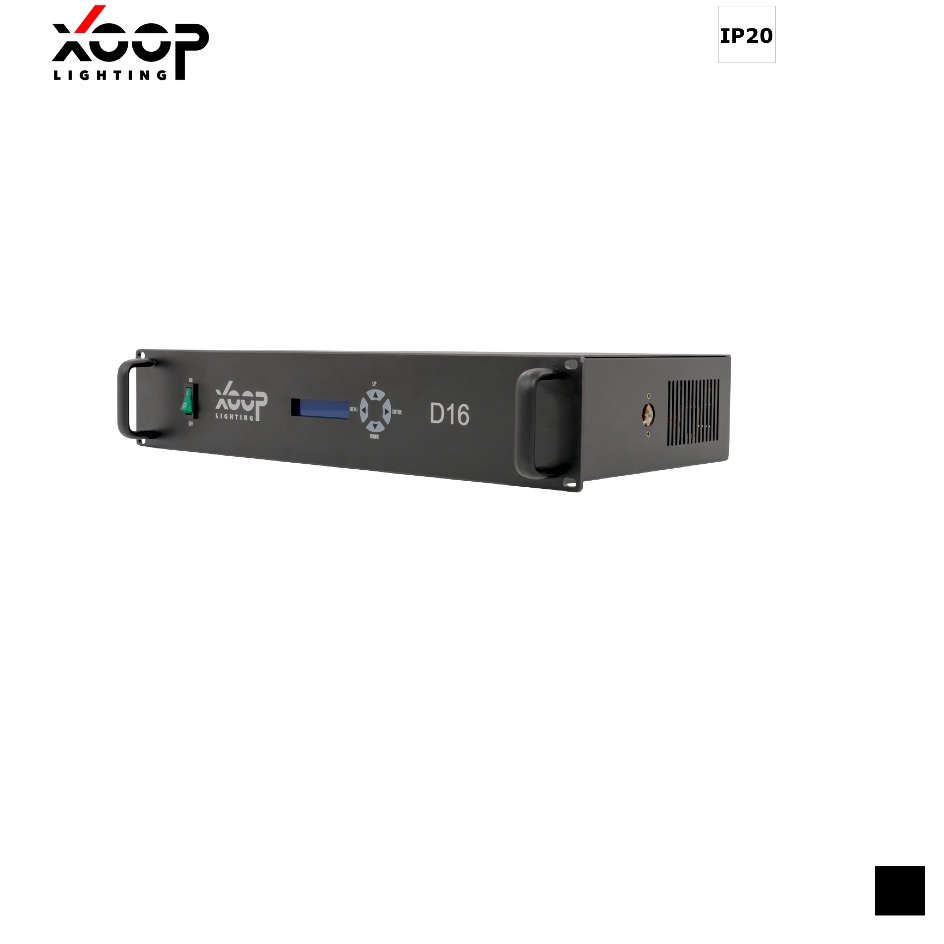

- The D16 is used to power and control the XOOP 290-1 & 200-2 LED trusses. It has 16 outputs, whereby each output can supply up to 60W. This corresponds to 3m of LED truss. Each output is equipped with lockable RJ45 sockets. RJ45 connections are also available for DMX control, as are 5-pin XLR sockets. The driver is 19”-capable and can be used both on tour and in fixed installations.
Features
- Driver for XOOP 200-2 & 290-1 LED
- 16x RJ45 output
- 60W per output
- 19”-capable
- DMX modes: 1, 2, 3, 4, 7, 64 &112 channel
- DMX: 5-pin XLR In/Out & RJ45 In/Out
Physically
– 19-inch rack housing 2U, preparation for Omega bracket
– IP protection IP20
– Color/Finish black
– Dimensions | W: 483mm | H: 89mm | D: 267mm
– Weight 5,44 kg
Thermally
– Ambient temperature -5°C – 65°C
– Forced cooling with silent fan
Electrically
– electrical protection class Protection Earth
– Operating voltage 90-264 V AC, 50/60 Hz
– Power consumption 500W
– Output Voltage 16 x 24V. To use the D16 driver in combination with the Xoop LED traverses, CAT6 AWG 23 or thicker with RJ45 connectors should be selected.
– Output Current 16 x 2.5A
– Output Wattage 16 x 60W
Power connector input
Seetronic SAC3
Power connector output
16 x RJ45
Control
– Protocol DMX512, RDM, Stand Alone
– Protocol Output DMX512, RDM, Stand Alone
– 7 DMX-Modes with 1, 2, 3, 4, 7, 64 &112 DMX-Channels
Inout
01 XLR5 Chassis Male
01 RJ45
Output
01 XLR5 Chassis Female
01 RJ45
Amount of Universes 1 ( DMX-Channels)
