Detailed description

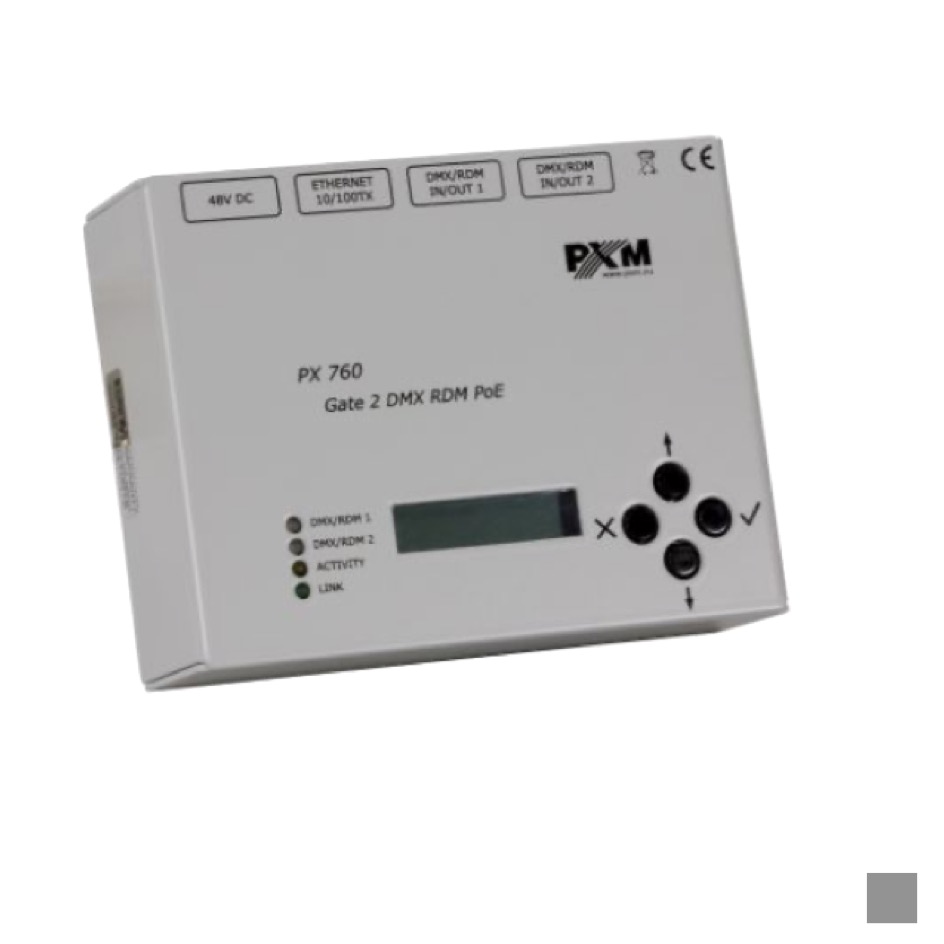

- The gate is supplied with 48 V DC, additionally it has the possibility to be operated via PoE (Power over Ethernet) in IEEE 802.3af standard. So it is possible to operate the device via twisted pair without using an external power supply at the device. The device is housed in a metal case, so it is protected from mechanical damage.
The gate has two modes for merging signals from two sources: HTP and LTP. The protocol version is Art-Net4 (also compatible with Art-Net 1 – 4).
The device is equipped with two DMX / RDM ports in IN / OUT mode and one Ethernet port in 10 / 100BaseTX standard. DMX512 ports are XLR connectors with optical and galvanic isolation and are insensitive to mechanical damage.
Four LEDs are installed on the front panel, two two-color LEDs responsible for indicating data transfer to DMX/RDM ports and two one-color LEDs informing about the status of Art-Net network connection.
Gate PX760 has a display and four buttons that allow you to change the configuration: Art-Net, Ethernet and DMX settings (for example: Delays, MAB, MBF, WAIT and the number of transmitted DMX channels).
Physically
– Plastic housing for DIN rail mounting
– Color/Finish grey
– Dimensions | W: 127mm | H: 42mm | D: 99mm
– Weight 0,3 kg
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 48 VDC
PoE(PowerüberEthernet IEEE 802.3af)
– Power consumption 1W
Power connector input
DC-Jack
RJ45 PoE
Control
– Protocol DMX, RDM
– Protocol Output DMX, RDM, DALI
Inout
02 XLR5 Chassis Female also configurable as output
Amount of Universes 2 (1024 DMX-Channels)
Network
– Protocol art-NET 1-4
Input
01 NEUTRIK Ethercon
