- To simplify setup and programming of this color system, the innovative SmartColor Control System gives designers adjustability without complexity.

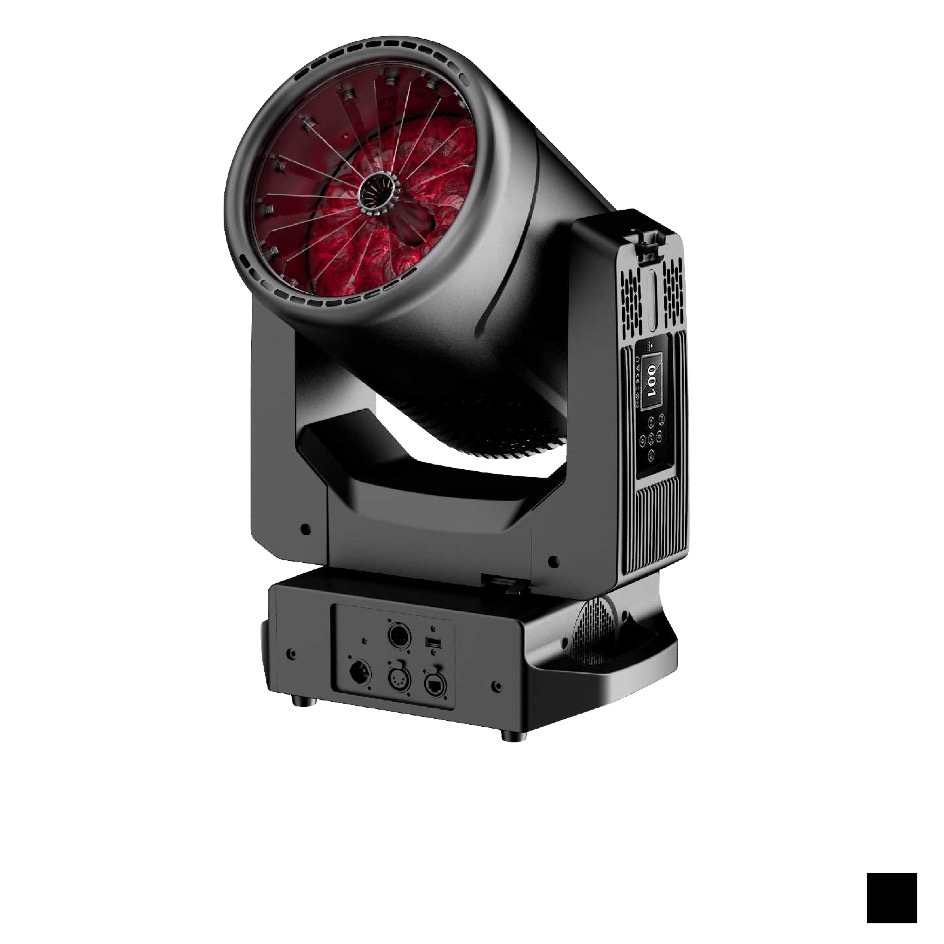

The beautiful colors of the VL5LED are reflected on the Dichro*fusion® blades, which bring the vintage stylings of the original VL5 to create a strong visual element on stage. For further visual options, a separate ring of LEDs light up the Dichro*fusion® blades a different color than the light coming from source engine. The LED blade lights, along with an onboard motorized zoom, offers a range of new visual options and bring more flexibility to this classic fixture.
Features
- Compact, high output LED wash fixture – get a high-output, Vari-Lite quality wash out of a compact LED fixture.
- High CRI RGBALC Color System with SmartColor Control – wide range of vivid color options that are easy to program
- Classic VL5 form factor and Dichro*fusion® diffusion blades – vintage styling reminiscent of the legendary VL5, offering a strong visual element on stage.
- LED blade lights with built-in effects – LEDs light up the blades a different color than the beam, with chases and other built-in effects. Add a new, easy-to-program creative element to this iconic fixture.
- Motorized zoom and variable diffusion – beautiful wash options available for any application
- Quiet operation with Standard, Studio, and Whisper modes – perfect for use in quiet environments.
Light source
– 60W ESE LED Engine (bichromatic) (x18)
– Standard:14,000 Lumen, Studio: 12,000 Lumen, Whisper: 9,000 Lumen
– Tunable White 1800K-10000K | CRI: >90 | Tm30: Rf 87.9 / Rg 104.5
– Adjustable Refresh Rate 900Hz-25kHz
Brightness control
– Electronic 16-bit dimming with 4 dimmer curves: Square Law, Linear, S-Curve, Dim Snap on/off
– electronic stroboscope system, continuous, random, randomly synchronized.
Positioning
– PAN: 540° / TILT 270°
Colors
– 18 x Additive 16-bit color mixing with red, green, blue, amber, lime, cyan
– 16 x Additive color mixing with red, green and blue for the diffuser blades
– electronic adjustment of color temperature from 1800K-10000K
– +/-Green, Magenta
– 20 user-definable color presets
Optical system
– Frontlinse 200mm
– Motorised Zoom Optic 8° to 35°, with 16-bit
Physically
– by Standard CE, ETL, UL, FCC CSA, RoHS, ISO 9001
– Tube Center 380mm
– Metal frame, Plastic covers
– IP protection IP20
– Color/Finish black
– Dimensions | L: 367mm | W: 360mm | H: 578mm
– Weight 24 kg
Thermally
– Ambient temperature -10°C bis 45°C
– Forced cooling with fan
Electrically
– electrical protection class Protection Earth
– Operating voltage 100-240VAC 50/60Hz
– Power consumption 1320W
Power connector input
powerCON TRUE1 compatible connector
Control
– Protocol DMX512, RDM
Inout
01 XLR5 Chassis Male
Output
01 XLR5 Chassis Female
Network
– Protocol art-NET, sACN
Input
Locking RJ45 ethernet
