Accessories supplied with the unit
TITAN Software latest version
Capture 3D Visualizer
User Interface (Hardware)
- – 40 electronically-labelled playback faders
– 20 macro / executor buttons
– UPS battery backup
– OpticalCon stage link output
– 15.6″ main touch screen
– 3 optical attribute encoders
– Built-in 4-port managed gigabit network switch
– 16 universes of ArtNet or S-ACN, expandable with Titan Net Processors
– 8 Physical DMX outputs on 5-pin XLR
– 7″ secondary touchscreen
– 4 optical playback potentiometers
TITAN Software Features
- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready. Add any Ai product to unlock seamless video integration
- TITAN can be controlled via trigger with external hardware.
- 4-band sound-to-light
- DMX input
- MIDI note, note on / off, aftertouch, control change, program change, pitch wheel
- Pioneer ProDJ Link Bridge
Physically
– IP protection IP20
– Color/Finish black

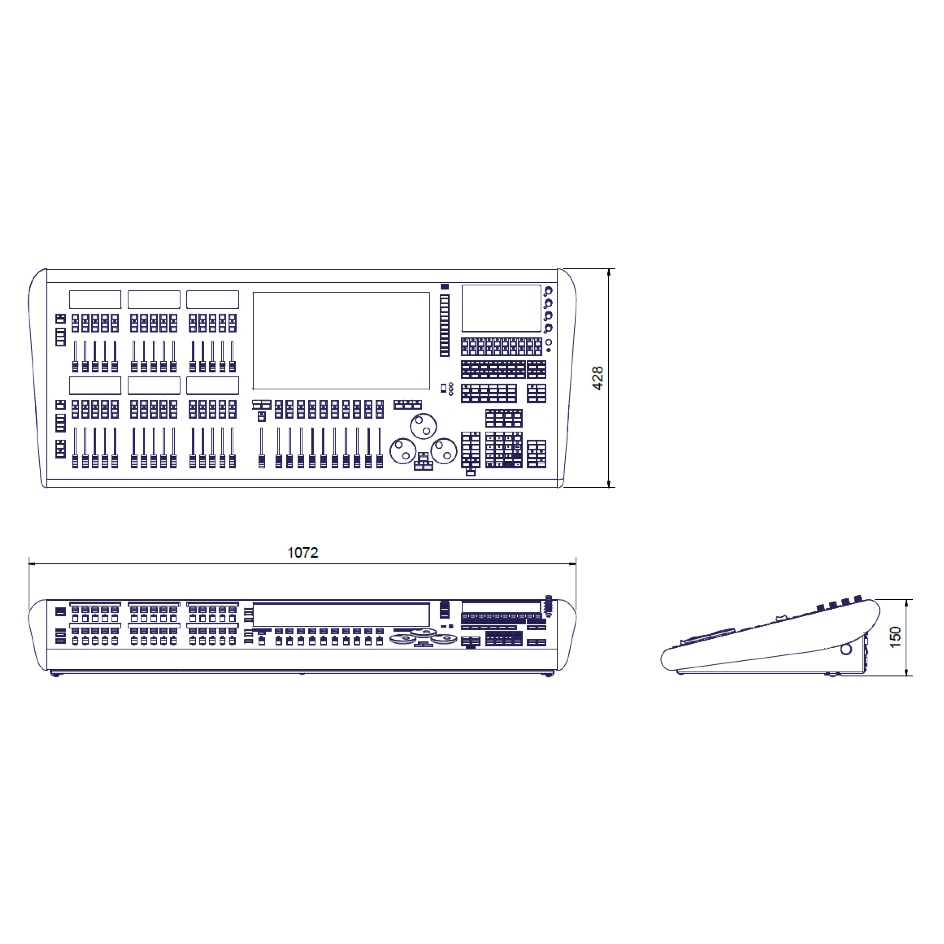

– Dimensions | L: 1070mm | W: 440mm | H: 160mm
– Weight 24 kg
Electrically
– Operating voltage 110 – 240VAC 50/60Hz
– Power consumption 650W
Power connector input
Inlet C14 IEC-60320
Uninterruptible power supply (UPS)
integrated UPS
Control
– Protocol MIDI
– Protocol Output DMX, RDM

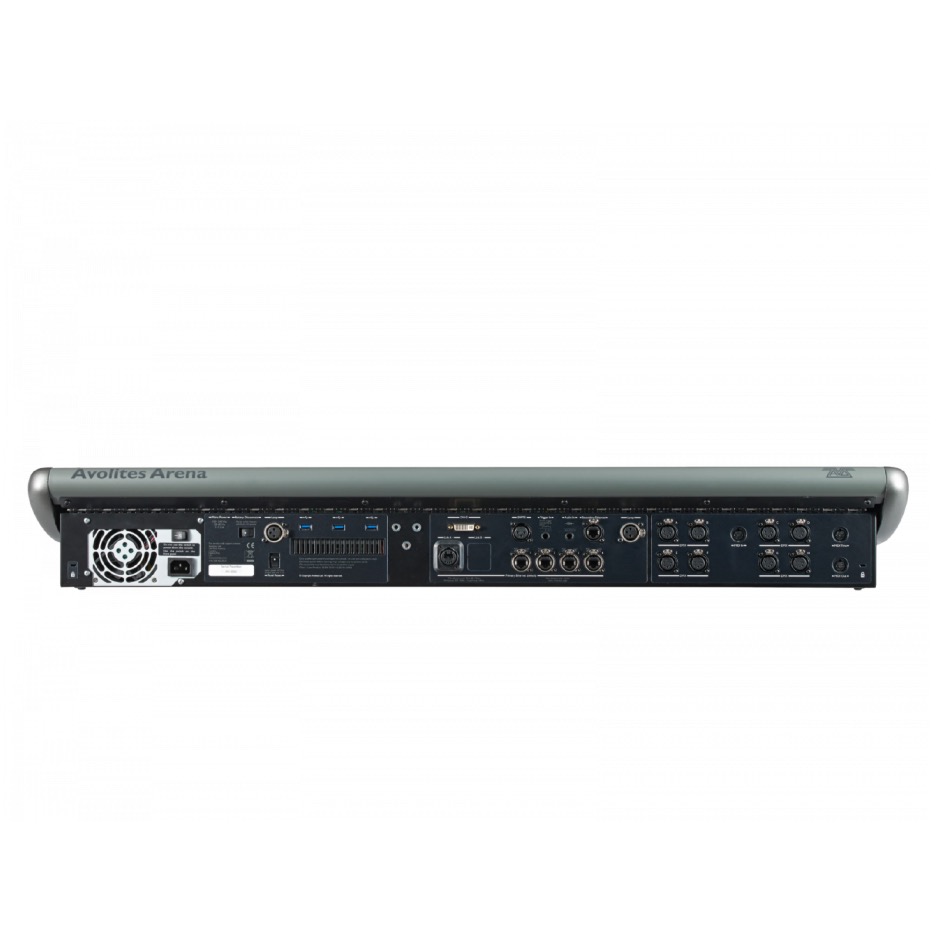

Inout
01 DIN5 MIDI IN
Output
01 DIN5 MIDI THRU & OUT
08 XLR5 Chassis Female, optical isolated
Network
– Protocol art-NET, sACN, Titan Net, CITP, RDMNet, ProDJTap, LiveDMX, WebAPI
Input
04 NEUTRIK etherCON 1GB with built-in switch (Network 1)
01 NEUTRIK etherCON 1GB (Network 2)
01 NEUTRIK opticalCON DUAL Fiber 1GB via built-in switch
Display
01 DVI for external Touchscreen
01 USB for external Touchscreen
Storage
02 USB Port Backpanel
Trigger
01 ¼” Jack for Trigger
Input
01 XLR3 chassis female as SMPTE
01 Jack 6.3mm TRS as Audio In
Input Protocol
SMPTE, Analogue Audio
Desklights
02 XLR3 Female for gooseneck lamp
