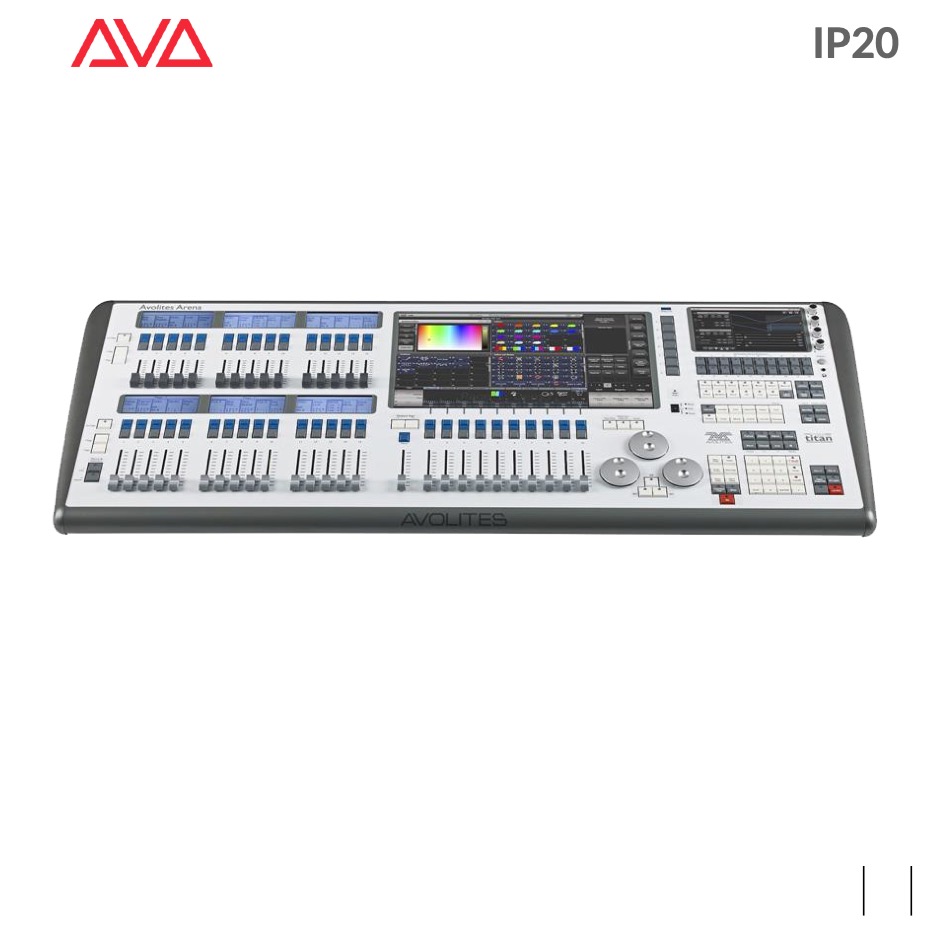

Avolites ARENA Console, white

The Arena is the ideal desk for festivals, theatres and anywhere that a larger control surface is required. It combines the popular interface of the Tiger Touch II with more control than ever before.
– Two optional desk lamps are required

SKU: 30-01-3040 Categories: Avolites, Compact Consoles, Uncategorized Brand: Avolites, Brands

Description
Additional information

Description

Downloads

User Manual
DMX-Chart
Technical Information
Titan Manual
Synergy Manual
Remote Manual
Personalities
Firmware
Specification
Product Overview
Manufacturers Page

Android-APP

iOS-APP

Accessories supplied with the unit

TITAN Software latest version
Capture 3D Visualizer

User Interface (Hardware)

– 20 macro / executor buttons

– UPS battery backup

– OpticalCon stage link output

– 15.6″ main touch screen

– 3 optical attribute encoders

– Built-in 4-port managed gigabit network switch

– 16 universes of ArtNet or S-ACN, expandable with Titan Net Processors

– 8 Physical DMX outputs on 5-pin XLR

– 7″ secondary touchscreen

– 4 optical playback potentiometers

TITAN Software Features

Generative, animation-based pixel mapping
Quicksketch labelling for ultimate personalisation
Powerful multi-user networking with any Titan console
Create huge effects in seconds with Key Frame Shapes
Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
Expand DMX channel capacity with Titan Net Processors
Synergy-ready. Add any Ai product to unlock seamless video integration
TITAN can be controlled via trigger with external hardware.
4-band sound-to-light
DMX input
MIDI note, note on / off, aftertouch, control change, program change, pitch wheel
Pioneer ProDJ Link Bridge

Physically

– IP protection IP20
– Color/Finish white
– Dimensions | L: 1070mm | W: 440mm | H: 160mm
– Weight 24 kg

Electrically

– Operating voltage 110 – 240VAC 50/60Hz
– Power consumption 650W

Power connector input
Inlet C14 IEC-60320

Uninterruptible power supply (UPS)
integrated UPS

Control

– Protocol MIDI
– Protocol Output DMX, RDM
Inout
01 DIN5 MIDI IN
Output
01 DIN5 MIDI THRU & OUT
08 XLR5 Chassis Female, optical isolated

Network

– Protocol art-NET, sACN, Titan Net, CITP, RDMNet, ProDJTap, LiveDMX, WebAPI
Input
04 NEUTRIK etherCON 1GB with built-in switch (Network 1)
01 NEUTRIK etherCON 1GB (Network 2)
01 NEUTRIK opticalCON DUAL Fiber 1GB via built-in switch

Display
01 DVI for external Touchscreen
01 USB for external Touchscreen

Storage
02 USB Port Backpanel

Trigger
01 ¼” Jack for Trigger

Input
01 XLR3 chassis female as SMPTE
01 Jack 6.3mm TRS as Audio In

Input Protocol
SMPTE, Analogue Audio

Desklights
02 XLR3 Female for gooseneck lamp
