Accessories supplied with the unit
8100-9301 Deskcover D3-110 CONSOLE
Detailed description

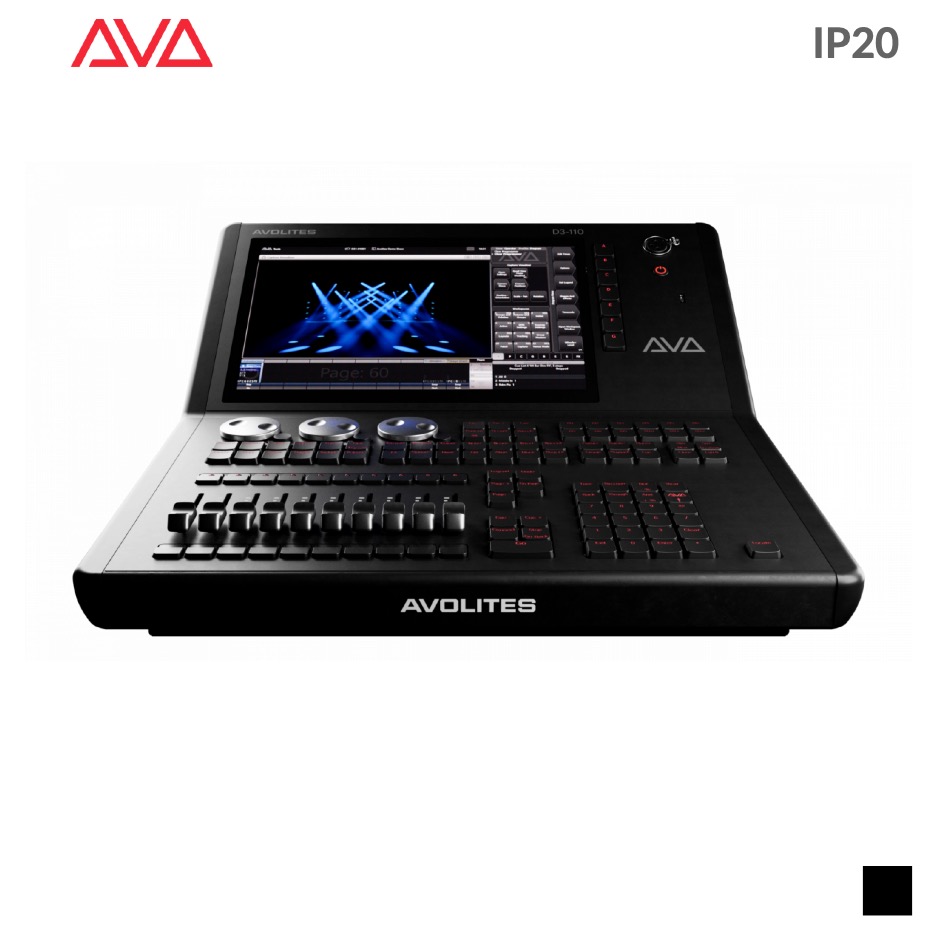

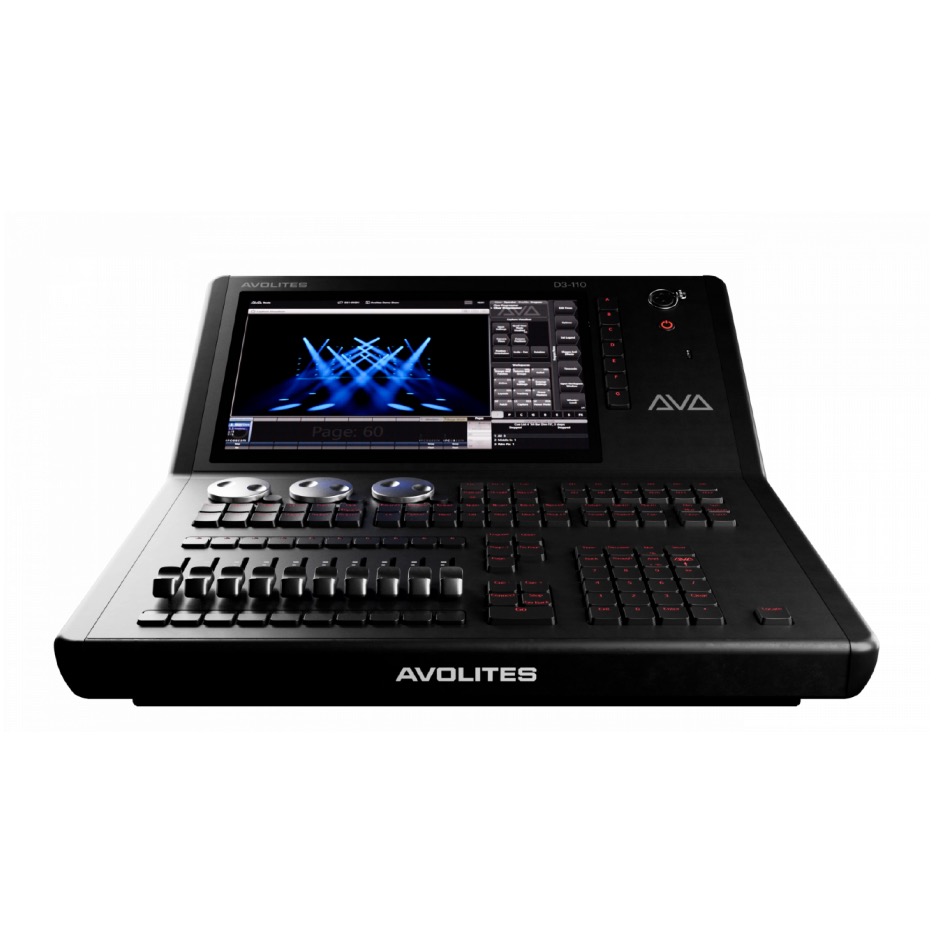

- With an integrated touchscreen and increased processing power, the Avolites D3-110 is ready for bigger shows and tighter schedules. Powered by Avolites Titan software, it supports 24 universes in a compact, standalone design that fits into any touring, installation, or rental fleet.
Features
- Standalone lighting control console with Titan processor
- Native support for 24 DMX universes
- 10 playback faders, 3 encoder wheels, 12 macro buttons and Avolites’ compact button layout as found on the T3 Console and D3-010 Console
- Combination of USB-C and USB-A ports
TITAN Net
- Can be programmed and controlled via multi-console sessions from any TITAN Console (identical software version).
TITAN Software Features
- Avolites TITAN software
- Capture 3D Visualizer
- Max. 8 DMX universes per device (12’288 parameters)
- Max. 8 DMX universes per system (12’288 parameters)
- Unlimited number of devices
User Interface (Hardware)
- 01x 12.1″, 800nit (cd/m2), WXGA capacitive mutli-touch internal screen with adjustable brightness
- 01x optional up to 4K (UHD) external screen (DisplayPort)
- Compact layout (same as on T3 Console & D3-010 Console)
- 10x 60mm playback faders
- 20x C&K flash buttons with custom cap
- 76x backlit Cherry MX Low Profile programming / setup keys
- 03x backlit Cherry MX Low Profile playback paging keys
- 05x backlit Cherry MX Low Profile playback control keys, incl. double-width Go key
- 12x backlit Cherry MX Low Profile macro/executor keys
- 03x high resolution, metal Avo attribute encoders with select buttons
- Support for D3 Wing, T3 Wing, or Titan Mobile Wing
- Support for unlimited D3 Touch
- iOS & Android mobile app (“Titan Remote”)

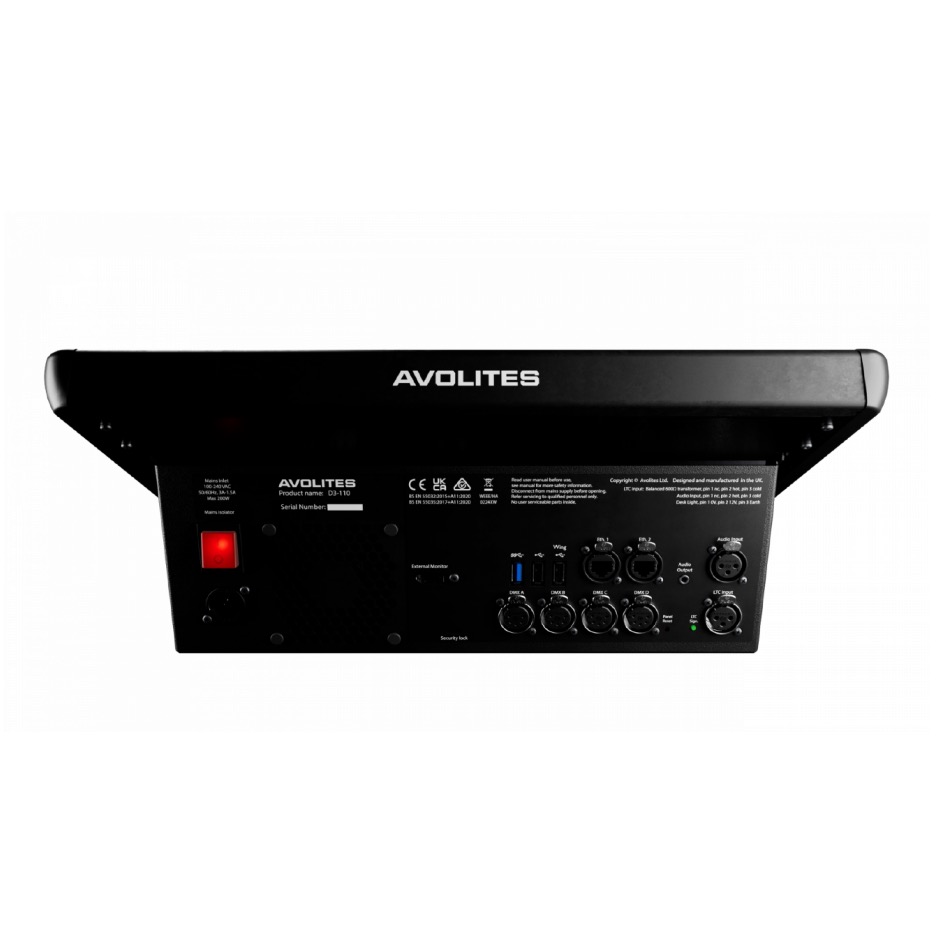

- 04 x DMX ports (Neutrik 5-pin XLR)
- 02x EtherCON (Gigabit Ethernet)
- 01x SMPTE LTC port (Neutrik 3-pin XLR)
- 01x Audio Input port (Neutrik 3-pin XLR)
- 01x Audio Output port (6.35 mm (1⁄4”) jack)
- 12V optional Gooseneck
- Kensington Security Lock
Physically
– Housing Console housing
– IP protection IP20
– Color/Finish black
– Dimensions | W: 423mm | H: 202mm | D: 468mm
– Weight 8,7 kg
Thermally
– Ambient temperature 0°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 200W
Power connector input
Neutrik powerCON True 1
Control
– Protocol Output DMX512 (E1.11)
Output
04 Neutrik XLR5 Chassis female
Amount of Universes 16 (8’192 DMX-Channels)
Network
– Protocol WebAPI, Art-NET, Art-RDM, sACN, CITP, WebAPI, GDTF (Capture)
Input
02 x Neutrik etherCON RJ45
PC-Ports
01 USB-C 3.2 Front
01 USB-A 3.2 Back
02 USB-A 2.0 Back
Display
01 DP (Back)
Input
01 XLR3 chassis female with signal indicator as SMTPE input
01 XLR3 Chassis Female analog Audio
Input Protocol
Analogue Audio, SMPTE LTC,
Output
01 Jack female 6,3 mm TS
Output Protocol
Analogue Audio
