Accessories supplied with the unit
8100-9601 Deskcover DIAMOND 9-215
TITAN Software latest version
Capture 3D Visualizer

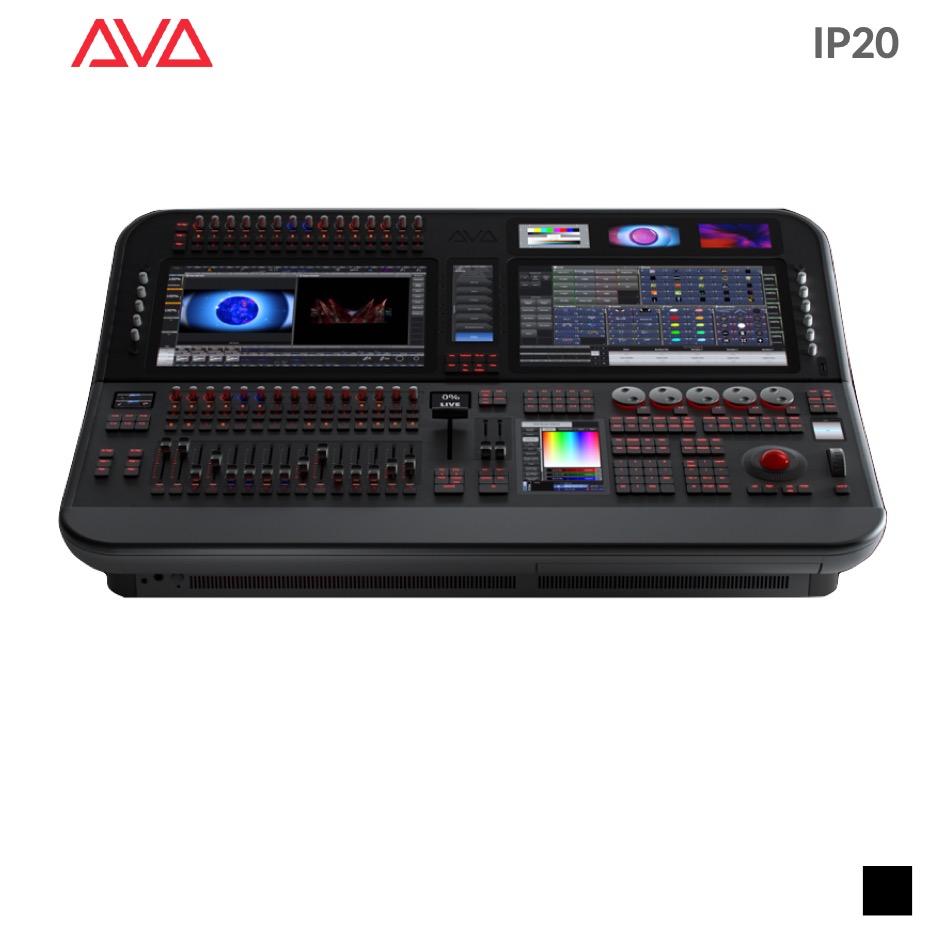

User Interface (Hardware)
- 17 motorized and touch-sensitive slide potentiometers (faders) with 11 segment RGB LED as fader path indicator
- 40 touch-sensitive, optical encoders with integrated push button and RGB contour lighting
- 90 C&K pushbuttons for playback functions such as ADD / SWOP, GO, PAUSE
- 5 encoder wheels with RGB-LED backlighting for entering parameters and positioning
- T-BAR with 5 push buttons and color LCD status monitor
- 2 capacitive 15.6 “touch screens and adjustable brightness for operation and programming
- 3 touch screens 4.3″ for media preview or for workspace display
- 7“ dual touch screen for menu navigation
- 21 backlit pushbuttons for macro and executer functions
- Trackball for X-; Y- and Z
- QWERTY keyboard with backlit keys in the right drawer
- Supports 2 additional HDMI 1920 x 1080 Touch Screens
TITAN Software Features
- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready. Add any Ai product to unlock seamless video integration
- TITAN can be controlled via trigger with external hardware.
- 4-band sound-to-light
- DMX input
- MIDI note, note on / off, aftertouch, control change, program change, pitch wheel
- Pioneer ProDJ Link Bridge
Physically
– IP protection IP20
– Color/Finish black
– Dimensions | L: 1010mm | W: 580mm | H: 260mm
– Weight 54 kg
Electrically
– Operating voltage 110 – 240VAC 50/60Hz
– Power consumption 650W
Power connector input
powerCON TRUE1 TOP 16A
Uninterruptible power supply (UPS)
integrated UPS for console and Ethernet switch
Control
– Protocol DMX, RDM, MIDI
– Protocol Output DMX, RDM
Inout
01 XLR5 Chassis Male (DMX Input)
01 DIN5 MIDI IN
Output
08 XLR5 Chassis Female, optical and galvanically isolated with LED assignment Indicators
01 DIN5 MIDI THRU & OUT
Network
– Protocol art-NET, sACN, Titan Net, CITP, RDMNet, ProDJTap, LiveDMX, WebAPI
Input
04 NEUTRIK Ethercon 1GBE, internally switched & managed
01 NEUTRIK opticalCON QUAD 1GBE LC
01 NEUTRIK Ethercon 1GBE, Network 2
*optional: 01 NEUTRIK opticalCON 10GBE
*optional: 01 NEUTRIK etherCON 10GBE
Display
02 HDMI up to 1920 x 1080
02 USB 2.0 for externe Touchscreens
Storage
01 USB 3.1 Port under Armrest
01 USB 3.1 Port on Frontpanel
02 USB 3.1 Port Backpanel
Trigger
01 D-SUB 15 GPIO 4 IN/4 OUT, ISOLATED, AND DRY CONTACTS
01 ¼” JACK FOR FOOT SWITCH.
Input
01 XLR3 chassis female as LTC with signal indicator
01 XLR3 chassis female as audio input with signal indicator
Input Protocol
SMPTE, Analogue Audio
Output
01 XLR3 chassis male as LTC loop with signal indicator
01 RCA S/PDIF digital Audio
Output Protocol
digital Audio, LTC
Desklights
02 XLR3 Female for gooseneck lamp
Worklight
– Switchable LED strip on the connection panel as working light
– Dimmable LED strip on front panel as script reading light
