Detailed description

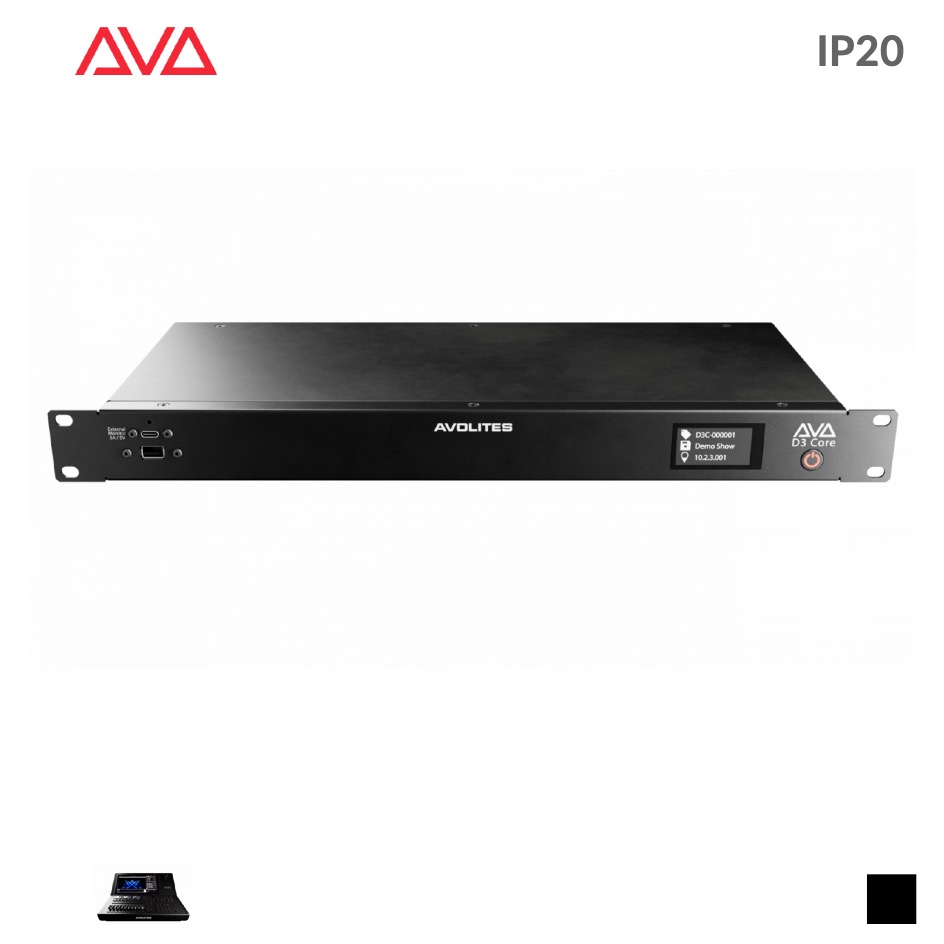

- D3 Core is a 19-inch 1U processor running Titan as a standalone controller. It is designed for fixed installations, remote control configurations, and situations where space is limited but reliable Avolites control is required.
Features

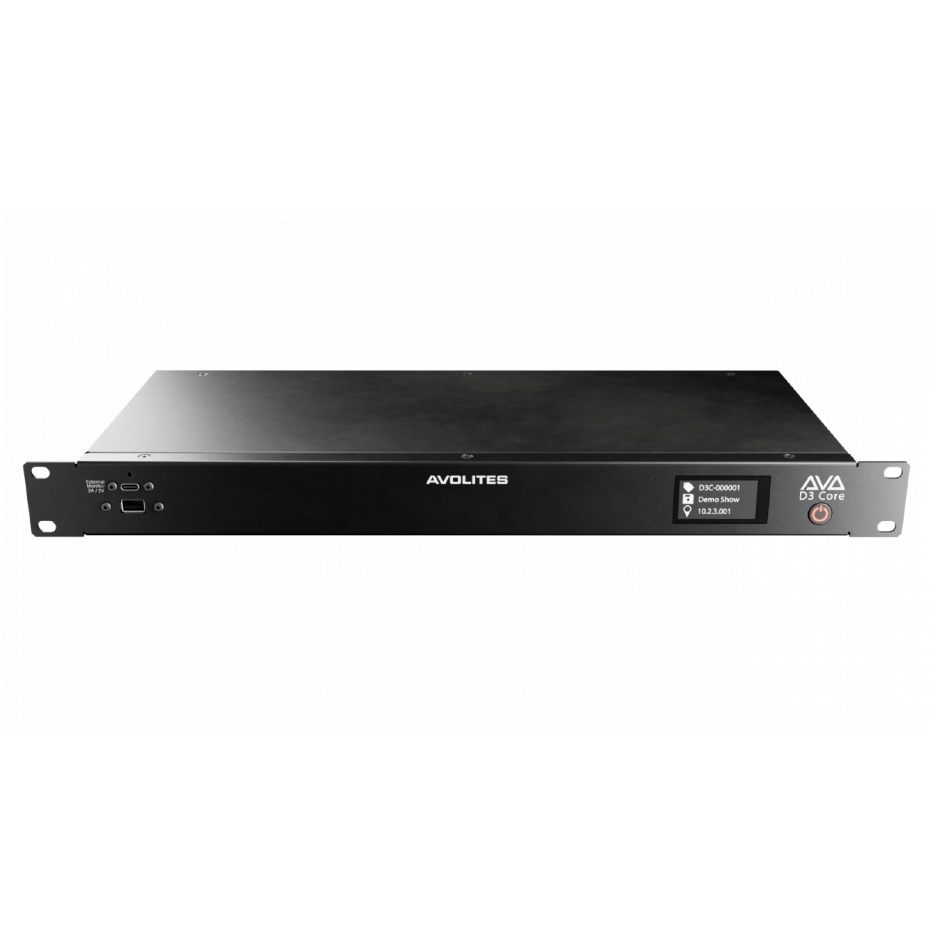

- 1.9-inch display for showing the console ID, show file name, and IP address
- Supports 16 DMX universes natively
- Runs full Titan OS as a standalone controller or with a connected surface
- No front panel: designed for remote, fixed, or embedded control setups
- Remote control via iOS and Android app “Titan Remote”
- D3 TOUCH Support (unlimited)
- Devices supported via USB: T3 Console, T3 Wing, D3 Wing, TITAN Mobile Wing
TITAN Net
- Can be programmed and controlled via multi-console sessions from any TITAN Console (identical software version).
- Off-Load-Processing
TITAN Software Features
- Avolites TITAN software
- Capture 3D Visualizer
- Max. 16 DMX universes per device (8,192 parameters)
- Max. 16 DMX universes per system (8,192 parameters)
- Unlimited number of devices
Physically
– Housing 19 inch rack case 1U
– IP protection IP20
– Color/Finish black
– Dimensions | W: 483mm | H: 44,45mm | D: 194mm
Thermally
– Ambient temperature 0°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 80W

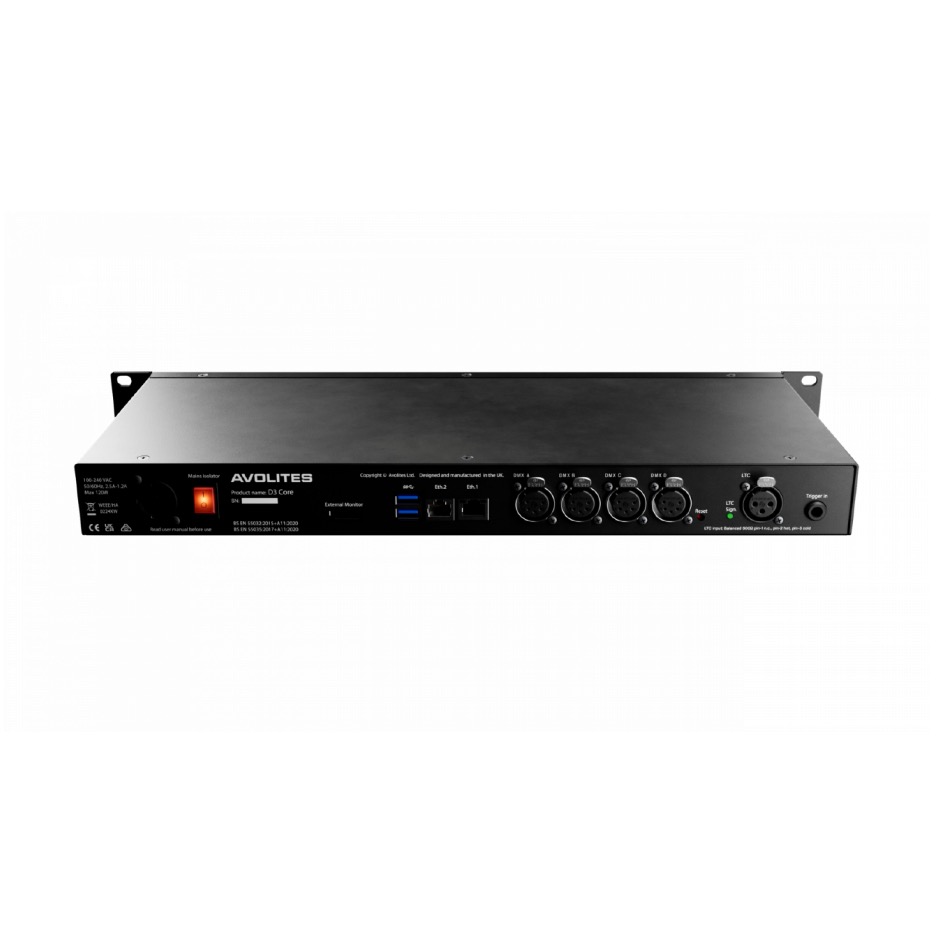

Power connector input
Neutrik powerCON True 1
Control
– Protocol Output DMX512 (E1.11)
Output
04 Neutrik XLR5 Chassis female
Amount of Universes 16 (8’192 DMX-Channels)
Network
– Protocol Art-Net, Art-RDM, sACN, CITP
Input
02 x RJ45
PC-Ports
01 USB-C 3.2 (altern. DP back)
01 USB-A 3.2 Front
02 USB-A 3.2 Back
Display
01 USB-C (Front)
01 DP (Back)
Input
01 XLR3 chassis female with signal indicator as SMTPE input
Input Protocol
SMPTE LTC
