User Interface (Hardware)
- – 20 electronically-labelled playback faders
– 10 macro / executor buttons
– UPS battery backup
– 15.6″ main touch screen
– 3 optical attribute encoders
– 16 universes of ArtNet or S-ACN, expandable with Titan Net Processors
– 4 Physical DMX outputs on 5-pin XLR
TITAN Software Features
- – Generative, animation-based pixel mapping
– Quicksketch labelling for ultimate personalisation
– Powerful multi-user networking with any Titan console
– Create huge effects in seconds with Key Frame Shapes
– Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
– Expand DMX channel capacity with Titan Net Processors
– Synergy-ready. Add any Ai product to unlock seamless video integration
– TITAN can be controlled via trigger with external hardware.
– 4-band sound-to-light
– DMX input
– MIDI note, note on / off, aftertouch, control change, program change, pitch wheel
– Pioneer ProDJ Link Bridge
Physically

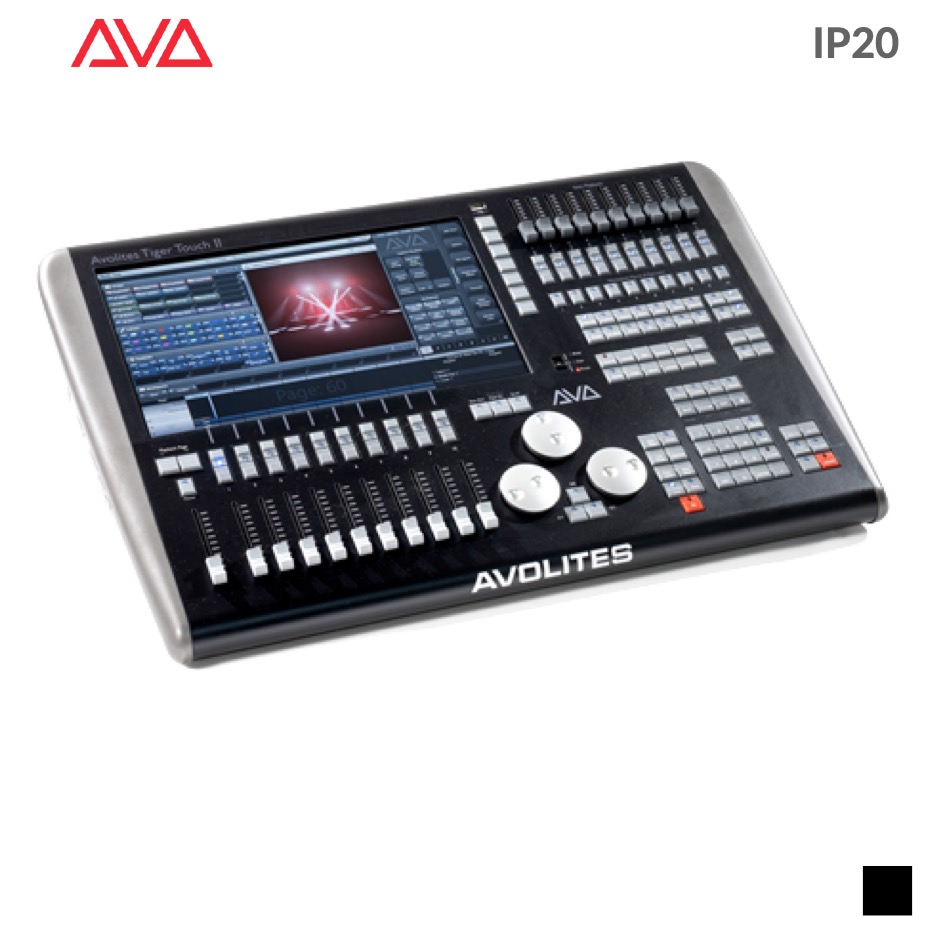

– IP protection IP20
– Color/Finish black
– Dimensions | L: 680mm | W: 450mm | H: 160mm
– Weight 17 kg
Thermally
– Ambient temperature 0°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 110 – 240VAC 50/60Hz
– Power consumption 80W
Power connector input
Inlet C14 IEC-60320
Uninterruptible power supply (UPS)
integrated UPS
Control
– Protocol DMX, MIDI
– Protocol Output DMX, RDM
Inout
01 DIN5 MIDI IN
Output
01 DIN5 MIDI OUT
04 XLR5 Chassis Female, optical isolated
Network
– Protocol art-NET, sACN, WebAPI, Titan Net, CITP, RDMNet, ProDJTap, LiveDMX
Input
02 RJ45 1GBE, Network
Display
Display Port and DVI (one active output only)
Storage
04 x USB 2.0
01 x USB 2.0 front-mounted
Trigger
01 ¼” Jack for Trigger
Input
01 XLR3 chassis female as SMPTE
01 Jack 6.3mm TRS as Audio In
Input Protocol
SMPTE, Analogue Audio
Desklights
01 XLR3 Female for gooseneck lamp
