Detailed description

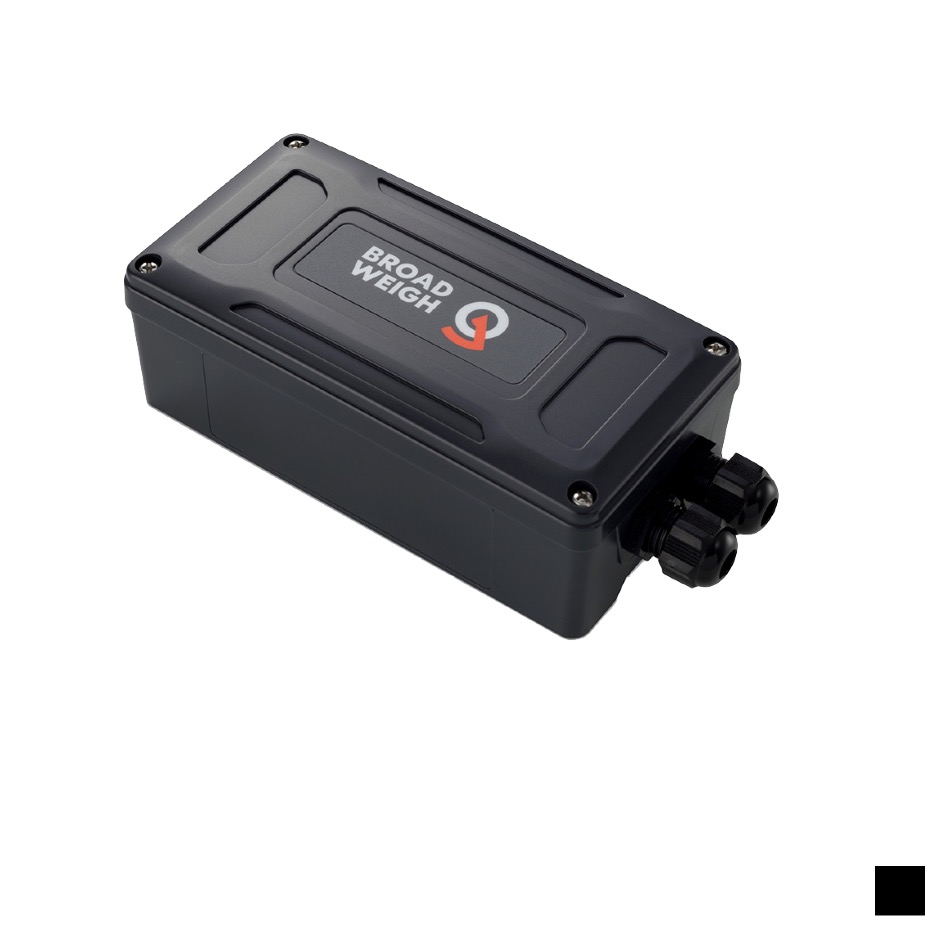

- The BW–BSi configures via USB or serial connection and offers option for USB, RS232 and RS485. Housed in a waterproof enclosure, the base station offers line of sight range of up to 800 m for all Broadweigh Sensors.
Features
- Configures sensors via USB or serial connection
- Options of USB, RS232, RS485
- Works with LOG100 for viewing data
- Allows cable lengths of up to 300m (RS485)
Physically
– IP protection IP67
– Color/Finish black
– Dimensions | L: 295mm | W: 165mm
Thermally
– Ambient temperature -20°C – 55°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage USB: 4.875 » 5.125 VDC
RS232 & RS485: 9 » 32 VDC viaa external & optional PSU
