Detailed description

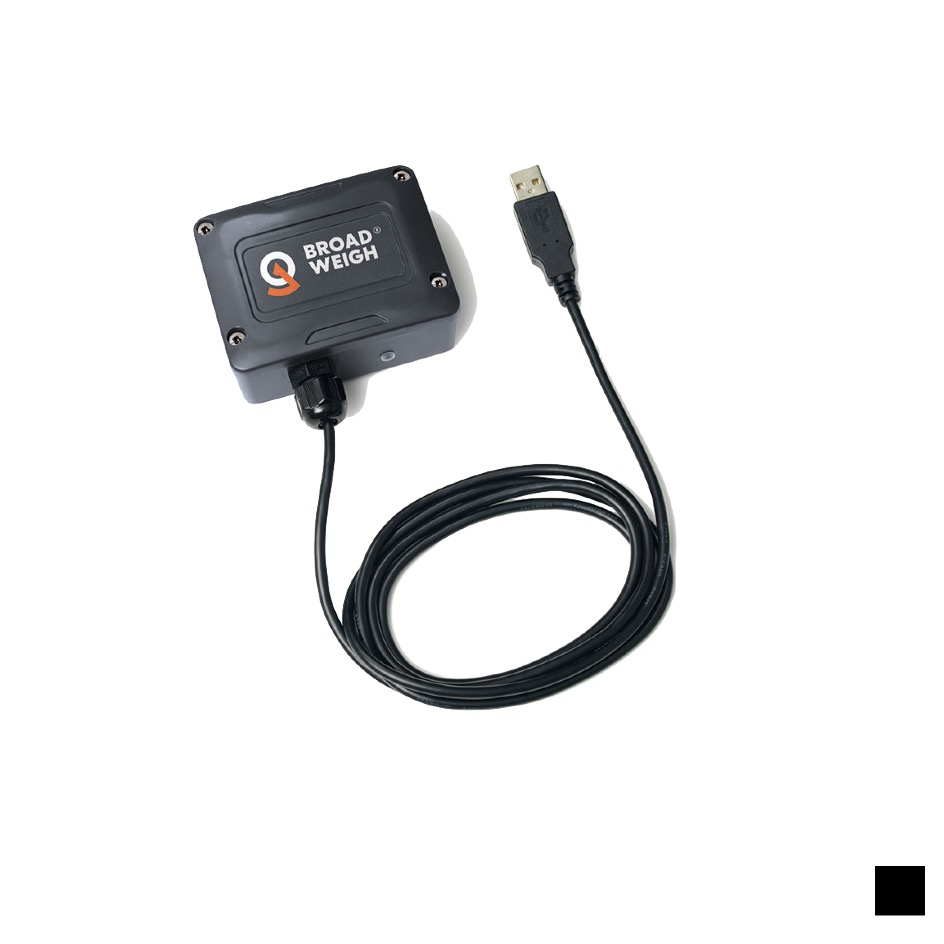

- The Broadweigh extended range base station offers line of sight range of up to 800m for Broadweigh shackles. It is used to provide wireless
data to PCs from Broadweigh sensors. Powered from the USB bus, no batteries are required, so no other modules are needed to configure and control wireless sensors from the PC. Used in conjunction with Broadweigh’s powerfull visualisation and logging software.
Features
- Collects wireless data from Broadweigh shackles
- Configures any Broadweigh device via USB connection
- Powered from USB
- Up to 800m range (line of Sight)
- IP67/NEMA 4 excluding USB connector
Physically
– IP protection IP67
– Color/Finish black
Thermally
– Ambient temperature -20°C – 55°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage USB: 4.875 » 5.125 VDC
Power connector input
USB-A
