Detailed description

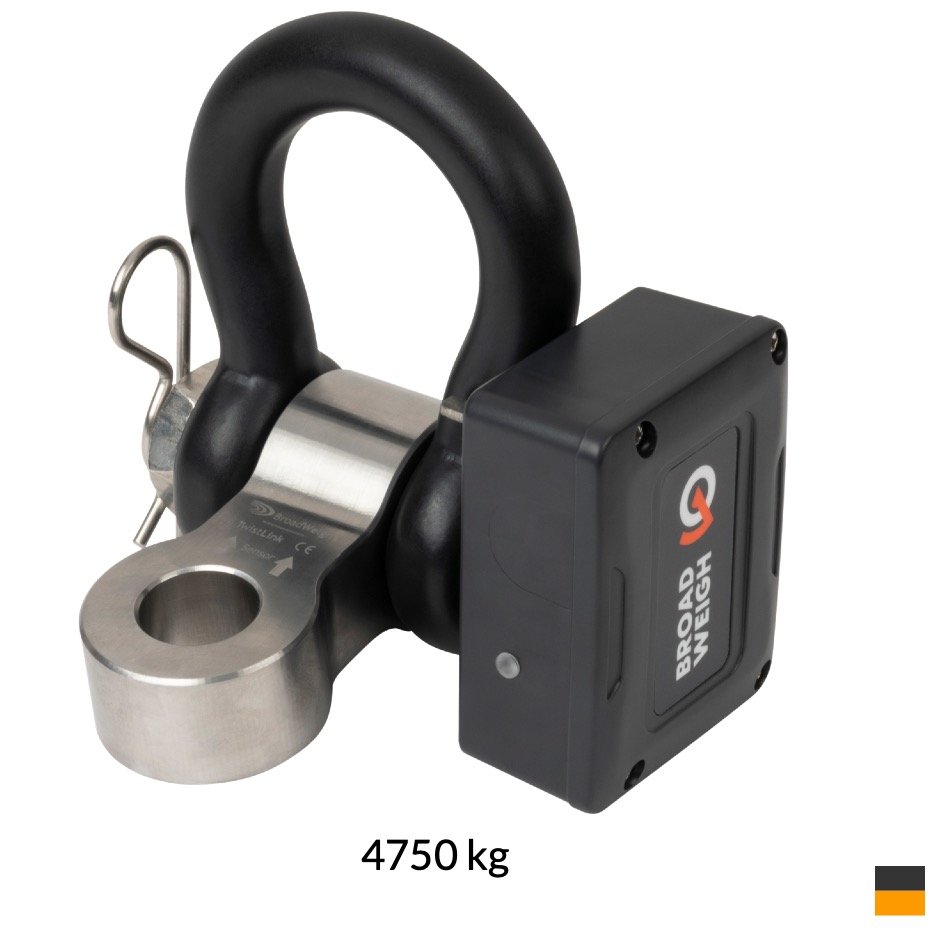

- The Generation 3 shackle is built to withstand the demands of challenging environments and weather conditions and enables monitoring and logging of precise loads on any given rigging point. With the latest Generation 3 Features. Delivering wireless data to a choice of receivers, the system provides the tools to safely distribute weight for indeterminate loads, roof structures, mother-grids as well as indicate alarms to avoid rigging component overload situations. Using our custom designed surface treated BS EN 13889 bow, the aerospace grade stainless steel load pin is supplied with a load centralising bobbin as standard. Accuracy typically ±1% of current load or ±25 kg.
Available in either 3250 kg or 4750 kg weight range, and can transmit up to 800m.
Features
- Smart Sleep protects battery life whilst monitoring
- Comfortable in the most challenging RF environments
- Easy power cycle with one swipe using new magnetic fob
- New bow with black surface treatment brings superior tolerances, finish and durability
- Easy to install and allows quick connection to 3.25 or 4.75 tonne shackles
- Ideal for temporary or semi-permanent installations
- Leaves more space in the shackle body to allow larger hook / tackle connection
- Holes at 90 degree to minimise torsional forces
- Low trim
- Aerospace graded stainless steel
- Conforms to European Machinery Directive
- Supplied and calibrated as one unit – also available as an accessory
Physically
– Nominal capacity WLL 4750 kg
– Safety factor 1:5
– by Standard Machinery Directive 2006/42/EC compliant
– IP protection IP67
– Color/Finish blackorange
– Dimensions | W: 129mm | H: 180mm | D: 62mm
Thermally
– Ambient temperature -20°C – 55°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
Battery/Accu
02x AA Battery
Wi-Fi
– Range Radio 2.4 GHz: ~800m Line of Sight
