Detailed description

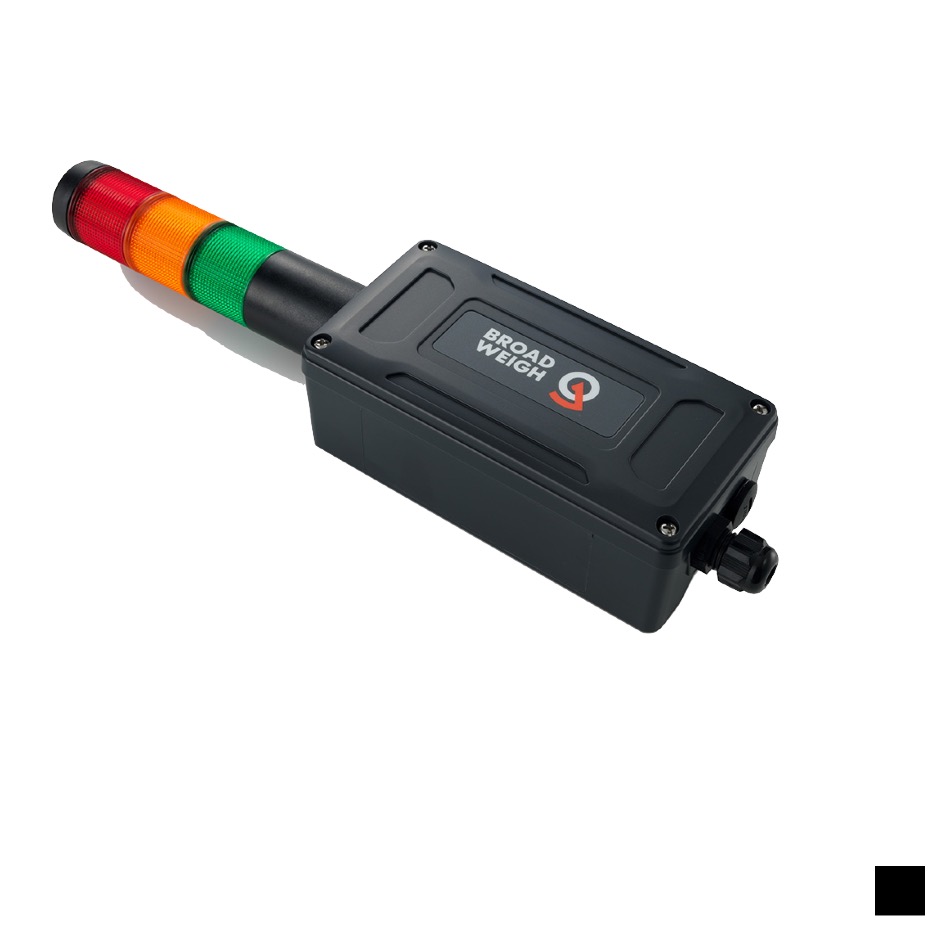

- The BW–WM1 is a fully configurable three light warning indicator that can be used in a simple LOG100 mode.
- The green light extinguishes if there is a loss of signal from any transmitters.
- The amber light illuminates if any LOG100 display channel passes the warning level.
- The red light illuminates if any LOG100 display channel passes the over / underload level.
- The module is fully user set formaximum control and configuration
and can be configured on the sum of assigned shackles.
Features
- – 3 ‘traffic light’ visual indicators
– Audible alarm
– Full user control and configuration
– Assignment of individual or group sensors
– Can be set to compare groups of weights to a set point; for example when hanging truss
– Can be latched / digital input for external reset
– Communication lost / error signal
– Up to 800 m range
– IP67 rated enclosure
– Optional mounting kit
Physically
– IP protection IP67
– Color/Finish black
– Dimensions | L: 295mm | W: 165mm
Thermally
– Ambient temperature -20°C – 55°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage USB: 4.875 » 5.125 VDC
RS232 & RS485: 9 » 32 VDC viaa external & optional PSU
